Honeywell V5011F1113/U Globe Valve 2 Way 3 in 100 Cv

Product Description

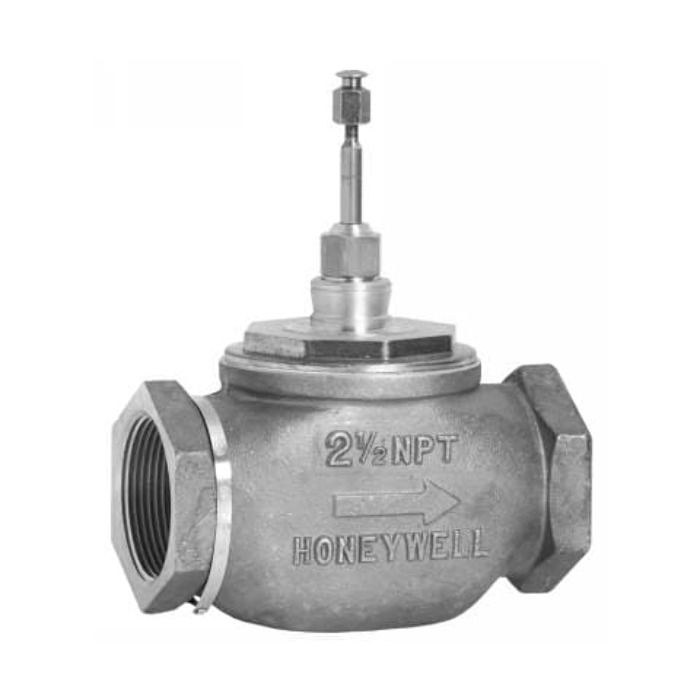

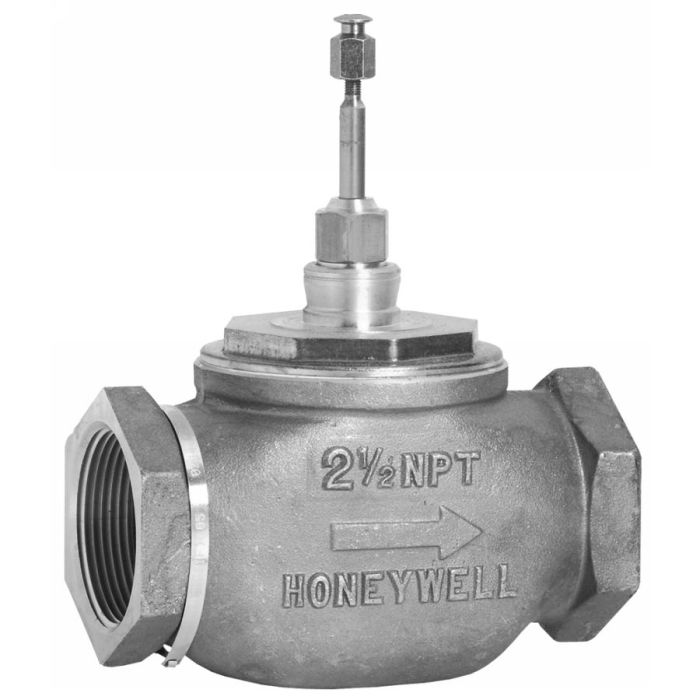

The Honeywell V5011F1113/U is a two-way globe valve designed for precise control of steam, water, and glycol solutions in HVAC systems. This valve supports applications where two-position or modulating control is required. The globe valve features a red brass body and is compatible with various pipe connections.

• Sizes available range from one-half inch to six inches.
• Direct or reverse-acting models are available for flexibility.
• Stainless steel stem and spring-loaded packing enhance durability.

Product Highlights

This valve is suitable for use in both heating and cooling systems. It supports a maximum safe operating pressure of two hundred fifty psi and operates effectively within a wide temperature range.

Product Information

Standard Information

• Service: Steam and water up to fifty percent glycol solutions
• Body Material: Red brass

Technical Specifications

• Pipe Size: Three inches
• Flow Characteristic: Equal percentage
• Operating Temperature: Forty-five F to two hundred fifty F (four C to one hundred twenty-one C)
• Close-Off Pressure: One hundred fifty psi
• Capacity: One hundred Cv
