Honeywell V5011B1013 4 Flg Single-Seated Valve

Product Description

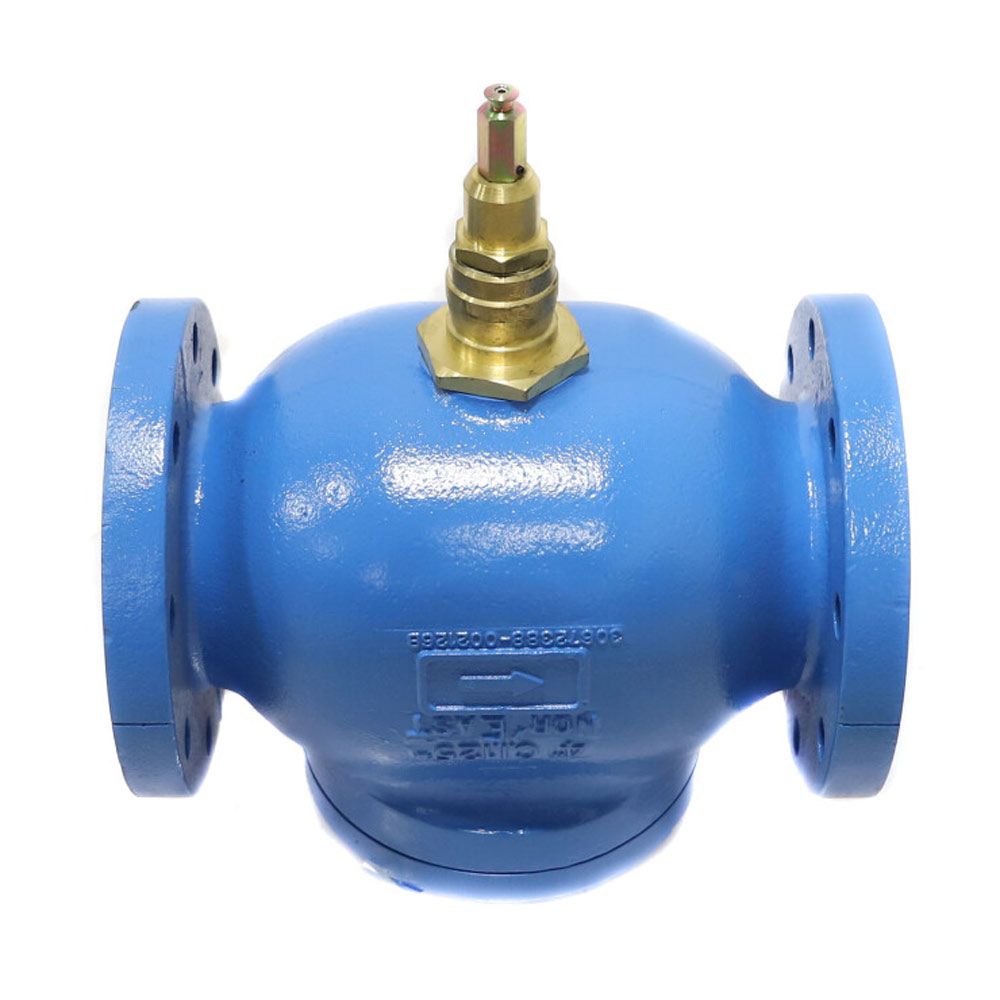

The Honeywell V5011B1013 is a two-way globe valve designed for effective control of hot and chilled water, as well as glycol solutions. This valve has a four-inch flanged connection and operates under a maximum pressure of one hundred twenty-five psi. It is suitable for various applications requiring reliable shutoff and control.

• Four-inch size
• Cast iron body material
• Suitable for hot and chilled water or low pressure steam

Product Highlights

This valve's down-stem design allows for easy installation. It is capable of handling applications that demand precise modulation or two-position control.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V5011B1013

Technical Specifications

• Body Material: Cast Iron
• Flow Characteristic: Equal Percentage
• Valve Application: Hot or chilled water, glycol up to fifty percent, low pressure steam
• Connection Type: Flanged
• Max Pressure: 125 psi WOG
• Weight: 105 lbs
• Dimensions: Length sixteen inches, Width fourteen point five inches, Height twenty-four inches
