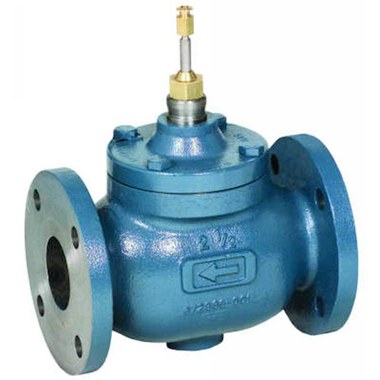

Honeywell V5011A1767/U 3 2W DA Globe Valve ANSI125 Flg Cv100

Product Description

The Honeywell V5011A1767/U is a three-inch two-way flanged globe valve designed for HVAC systems. This valve is used for proportional control of hot or chilled water and glycol solutions up to fifty percent concentration. It is also suitable for two-position control of low-pressure steam in closed-loop systems.

• Sizes range from two and a half to six inches
• Temperature range from forty degrees Fahrenheit to two hundred fifty degrees Fahrenheit
• Compatible with multiple actuator options for flexibility in installation

Product Highlights

This globe valve features a stainless steel stem with serviceable Teflon packing, ensuring durability and maintenance ease.

Product Information

Standard Information

• Manufacturer: Honeywell
• Connection Type: Flanged

Technical Specifications

• Dimensions: 13.5 inches high x 7.5 inches wide x 11 inches deep
• Maximum Safe Operating Pressure: 150 psi at 240 F; 15 psi steam
• Ambient Temperature Range: 40 F to 250 F
• Pipe Size: 3 inches
• Body Material: Cast Iron
• Stem Material: 316 Stainless Steel
• Flow Characteristic: Equal Percentage
• Capacity: 100 Cv
