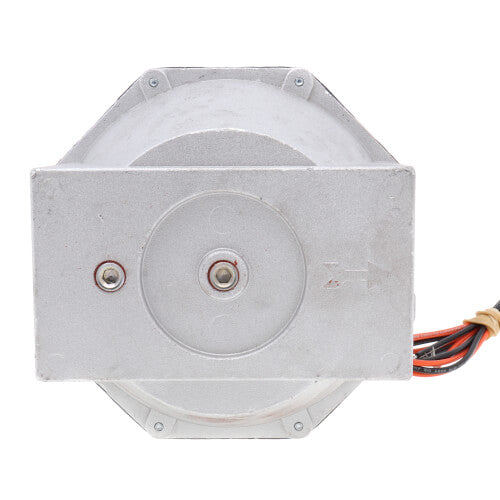

Honeywell V4944B1059 Diaphragm Gas Valve Two Stage 1 Inch NPT

Product Description

The Honeywell V4944B1059 diaphragm gas valve offers precision control for gas flow in numerous applications. This valve is engineered to function with boilers, unit heaters, makeup air units, and rooftop heaters, supporting both natural gas and LP gas configurations.

• Two-stage pressure regulating with slow opening for accurate control.
• Integrates safety shutoff and pressure regulation in one unit.
• Robust die-cast aluminum body ensures durability and performance.

Product Highlights

Designed as a replacement for V4844/V8844 models, this valve operates with line voltage, dual-stage controllers or 24 Vac dual-stage thermostats. It features a straight-through valve pattern for optimal performance.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V4944B1059

Technical Specifications

• Type: Diaphragm, Two Stage
• Size: 1 Inch NPT
• Voltage: 120 Vac
• Frequency: 60 Hz
• Operating Temperature Range: -40° to 150°F
• Pressure Rating: 0.5 psi
• Maximum Capacity: 1000 CFH
• Connection: 76 inch leads, 1/4 inch Spade Terminal
