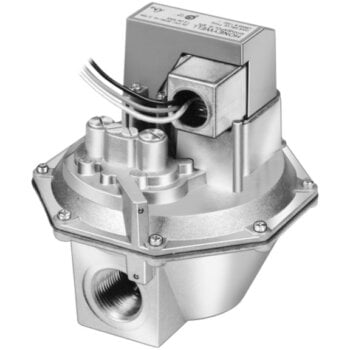

Honeywell V4944B1026/U diaphragm gas valve 120 VAC 1-1/4 in. NPT replacement V4844/V8844

Product Description

The HONEYWELL V4944B1026/U is a two-stage pressure regulating diaphragm gas valve designed for natural gas applications. Operating at 120 VAC, this solenoid-operated valve combines safety shutoff and pressure regulation functions. It features a 1/2 psi pressure rating and an adjustable valve opening time from 3 to 25 seconds. This valve is suitable for use on atmospheric boilers, commercial water heaters, and rooftop heaters, offering a capacity range of 480 cfh to 1600 cfh.

• Designed for replacement for V4844/V8844 gas valves.
• Suitable for use on atmospheric boilers, commercial water heaters, and rooftop heaters.
• Solenoid operated diaphragm valves that combine the functions of a safety shutoff and pressure regulation in a single unit.

Product Highlights

Valve closes on power failure; recommended for final shutoff service.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V4944B1026/U
• Country of Origin: United States

Technical Specifications

• Capacity: 480 cfh To 1600 cfh
• Gas Type: Natural
• Body Pattern: Straight-Through, Non-Offset
• Operating Temperature: -40 F To 150 F (-40 C To 66 C)
• Product Type: VALVE
• Leadwire Length: 54 inch
• Valve Type: Solenoid Valve
• Application: Gas Safety Shutoff
• Series: V4944B
• Compatibility: Gas Trains
• Pipe Size: 1-1/4 inch NPT
• Connection Type: Lead Wires
