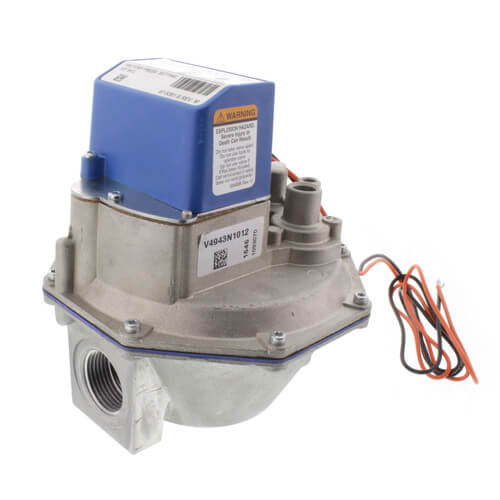

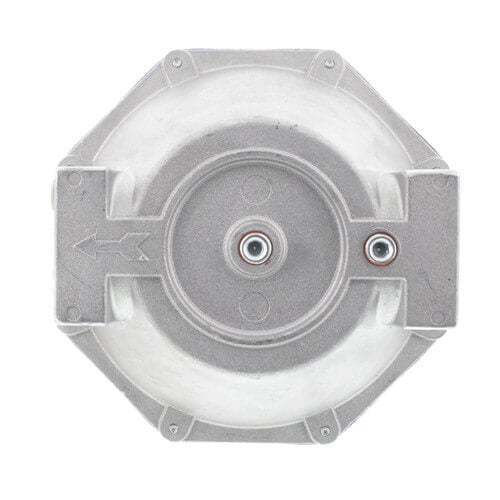

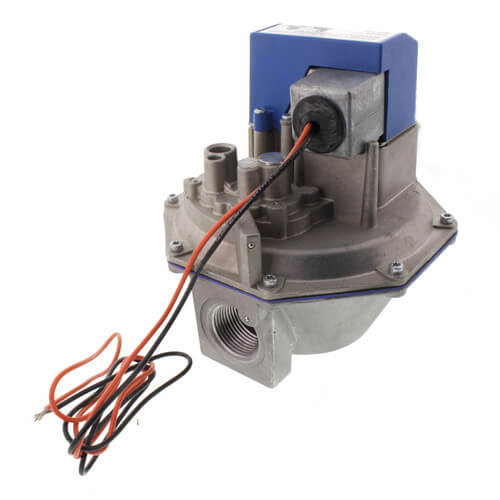

Honeywell V4943N1012 Diaphragm Gas Valve 120V Single-Stage Pressure Regulating Rapid Opening

Product Description

The Honeywell V4943N1012 is a solenoid-operated diaphragm gas valve designed to meet the needs of heating professionals. This valve functions both as a safety shutoff and a pressure regulator, suitable for use in a wide range of heating applications.

• Integrates safety shut-off and pressure regulation in one unit.
• Compatible with natural gas, enhancing versatility in usage.
• Features a die-cast aluminum valve body with a straight-through pattern for efficient flow.

Product Highlights

Designed for atmospheric boilers, commercial water heaters, and rooftop heaters, the V4943N1012 ensures reliable performance with its rapid opening feature and compatibility with line voltage on/off controllers.

Product Information

Technical Specifications

• Valve Type: Diaphragm, Single-Stage
• Size: 1 inch NPT pipe size
• Power: 120 volts
• Max Capacity (CFH): Up to 1000
• Min Temperature (F): -40 degrees Fahrenheit
• Max Temperature (F): 150 degrees Fahrenheit
