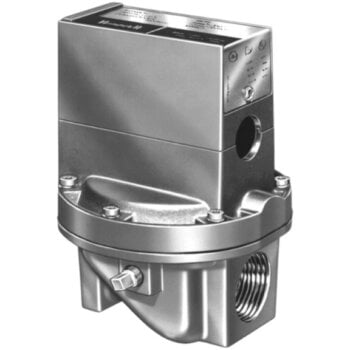

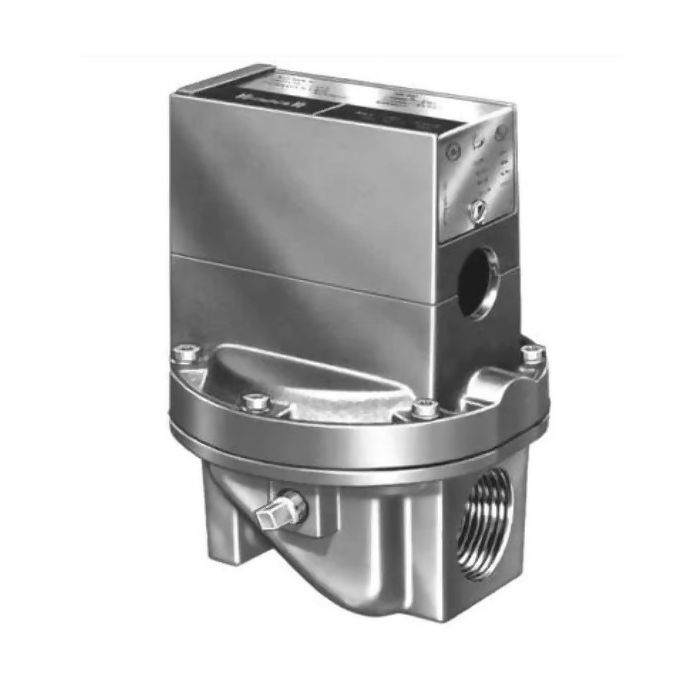

Honeywell V48A2177/U diaphragm gas valve 120 VAC 1/2 psi 1-1/4 in. NPT

Product Description

The HONEYWELL V48A2177/U is a diaphragm gas valve operating at 120 VAC and rated for 1/2 PSI. It provides slow opening and fast closing for precise gas flow control in line voltage service applications. This solenoid-operated valve is suitable for natural, manufactured, and LP gases, commonly used in atmospheric boilers, commercial water heaters, and rooftop heaters. It features a 1-1/4 inch NPT connection and is normally closed.

• Closes firmly with a diaphragm that is both weight and spring loaded.
• Features a two-second maximum closing time.
• Valve closes on power failure, recommended for final shutoff service.

Product Highlights

Solenoid-operated diaphragm gas valve for safe and controlled gas flow, featuring fast closing on power failure and compatibility with various gas types for heating applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V48A2177/U
• Country of Origin: United States

Technical Specifications

• Capacity: 2100 cfh
• Gas Type: Natural, Manufactured, And LP
• Body Pattern: Straight-Through
• Operating Temperature: 32 F To 125 F (0 C To 52 C)
• Pipe Size: 1-1/4"
• Type: VALVE
• Diaphragm Type: NC Diaphragm
• Operation: Normally Closed
• Pressure Rating: 1/2 PSI
• Ground Terminal: Yes
• Application: Gas Safety Shutoff
• Series: V48A
• Compatibility: Gas Trains
• Connection Type: NPT Threaded
