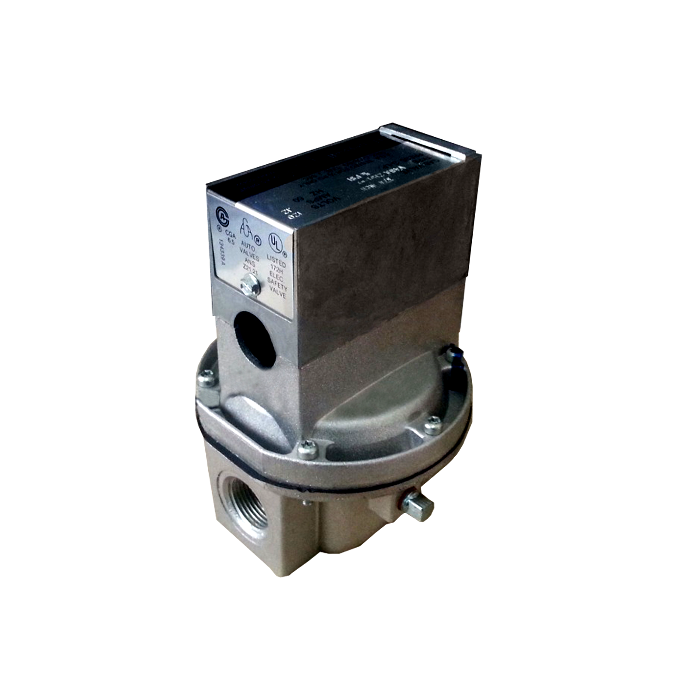

Honeywell V48A2151/U Diaphragm Gas Valve 120 VAC 3/4 in. NPT

Product Description

The HONEYWELL V48A2151/U is a diaphragm gas valve designed for line voltage service, operating at 120 VAC. It provides slow opening and fast closing, suitable for controlling natural, manufactured, and LP gases. This valve is recommended for final shutoff service, closing firmly with a weight and spring-loaded diaphragm. It has a capacity of 668 cfh and operates within a temperature range of 32 F to 125 F (0 C to 52 C) at 1/2 psi.

• Closes firmly with a weight and spring-loaded diaphragm.
• Features a two-second maximum closing time.
• Closes on power failure, recommended for final shutoff service.

Product Highlights

This 120 VAC diaphragm gas valve offers slow opening and fast closing for gas control, ensuring safety with power failure closure.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V48A2151/U
• Country of Origin: United States

Technical Specifications

• Capacity: 668 cfh
• Type Of Gas: Natural, Manufactured, And LP
• Body Pattern: Straight-Through
• Operating Temperature: 32 F To 125 F (0 C To 52 C)
• Pressure Rating: 1/2 psi
• Input Voltage: 120 VAC
• Product Type: VALVE
• Pipe Size: 3/4"
• NPT Type: N.C.
• Inlet Connection Type: National Pipe Tapered
• Certifications: NSF, UPC
• Valve Type: Diaphragm Gas Valve
