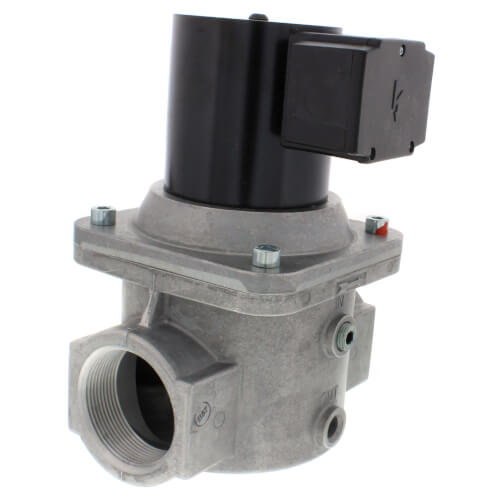

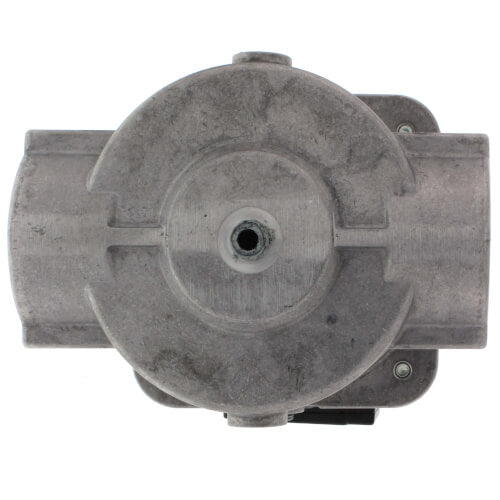

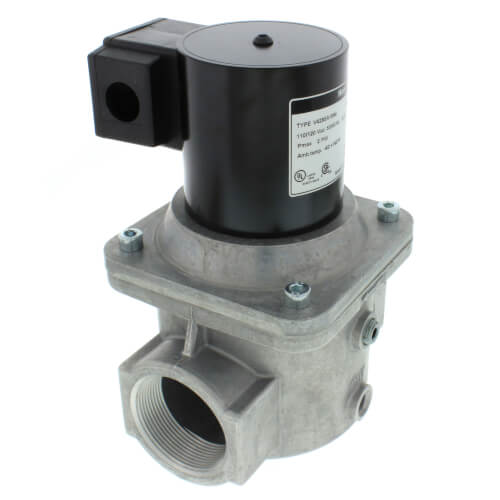

Honeywell V4295A1064 2 Inch N/C 120V Solenoid Gas Valve

Product Description

The Honeywell V4295A1064 is a 2-inch Normally Closed 120V Solenoid Gas Valve, suitable for controlling the flow of gases in various industrial applications. This high-performance valve ensures reliable operation with a maximum pressure of 2 psi, designed for use in systems like furnaces, roof-top units, and other industrial equipment.

• Operates effectively with 120V AC control systems.
• Supports a maximum operating pressure of 2 PSI.
• Constructed to provide low noise operation and low rush-in current.

Product Highlights

Equipped with a high valve spring force, this solenoid valve maintains a tight closure, preventing gas leaks when de-energized. Its robust design leads to dependable performance in demanding conditions.

Product Information

Standard Information

• Size: 2 inches
• Orientation: Normally Closed
• Control Voltage: 120V AC

Technical Specifications

• Pressure Capability: Up to 2 psi back pressure at valve seat
• Body Pattern: Straight-through, non-offset
• Temperature Range: -40° to 140°F
• Connection Type: NPT
• Installation: Vertical to 90 degrees from vertical
