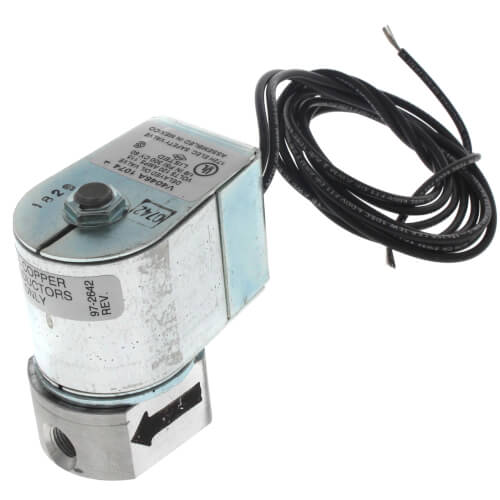

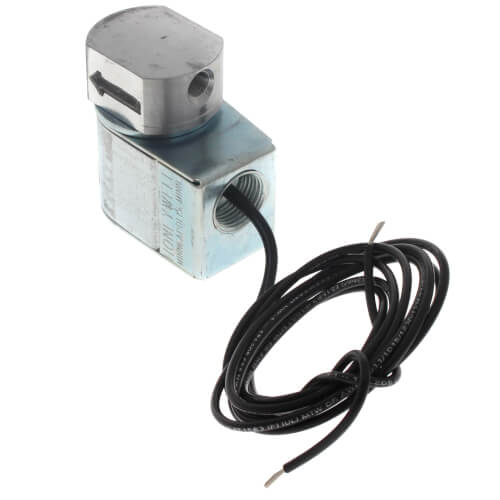

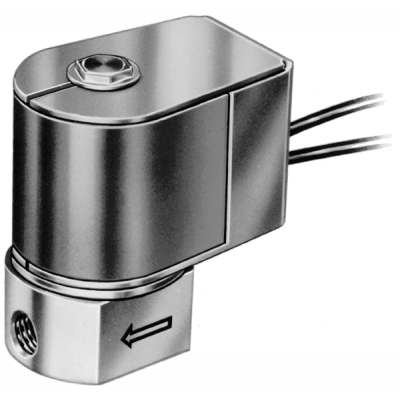

HONEYWELL V4046A1074/U Magnetic Oil Valve

Product Description

The HONEYWELL V4046A1074/U is a magnetic oil valve that controls on-off oil flow in domestic oil burner systems. This valve features a straight-through design, allowing for effective oil management. The aluminum construction ensures durability and reliability in operation.

• Controls on-off flow for oil burners.
• Delayed opening with immediate closure on power loss.
• Compatible with #2 fuel oil.

Product Highlights

This valve is suitable for various heating applications where consistent oil flow management is necessary. Its reliable operation makes it ideal for oil burner equipment.

Product Information

Standard Information

• Manufacturer Part Number: V4046A1074/U
• Voltage: 120 Vac

Technical Specifications

• Frequency: 60 Hz
• Power Consumption: 8 W
• Pipe Size: 1/8 in.
• Pipe Connection: NPT
• Max Operating Pressure (psi): 300 psi
• Operating Temperature Range (F): 32 F to 115 F
• Valve Opening Time: 3 to 8 sec
• Valve Closing Time: 1 sec max
• Current Ratings: 0.115 max amps
• Body Material: Aluminum
• Valve Type: Straight through
• Dimensions: 2 3/4 in. high x 1 5/8 in. wide x 2 5/8 in. deep
