Product Description

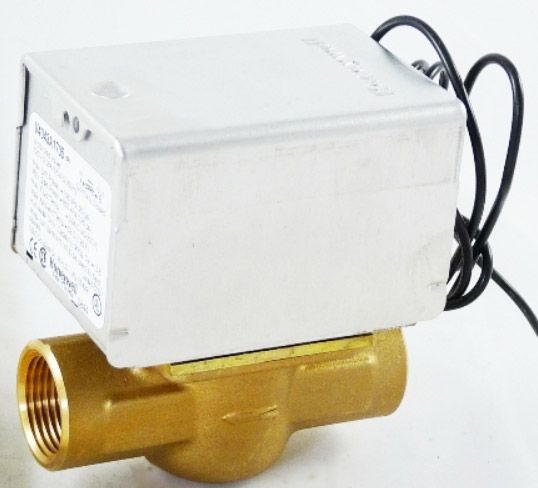

The Honeywell V4043A1705 zone valve is a reliable 3/4 inch line voltage valve. It is designed for hydronic control in heating and cooling systems.
- 3/4 inch nominal size
- 9.6 volt amp at 120 volt AC
- 40 to 200 degrees Fahrenheit fluid temperature rating
Product Highlights
Rated to 20 psi close-off pressure and 200 degrees Fahrenheit maximum operating temperature, the valve includes an actuator motor and valve assembly for controlling the flow of hot or chilled water.
Product Information
Standard Information
-
Model: V4043A
-
Manufacturer: Honeywell
Technical Specifications
-
MPN: V4043A1705
-
Valve Size: 3/4 inch
-
Valve Connection: NPT
-
Piping Configuration: Straight
-
Body Material: Brass
-
Valve Application: Water
-
Max Pressure: 125 psi WOG
-
Weight: 2.50 lbs
