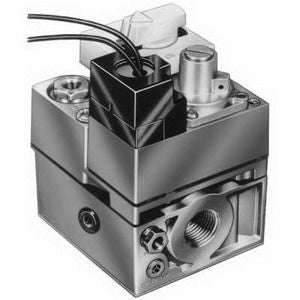

Honeywell V400A1095/U Gas Valve Multi-Tapped Standard Opening 3/4 Inch NPT

Product Description

The Honeywell V400A1095/U is a multi-tapped gas valve designed for use in various gas-fired appliances. This model features a standard opening and includes 1/2 inch side outlets with a three-quarter inch NPT connection. The valve operates efficiently at a pressure rating of 0.5 psi and supports standing pilot ignition with a capacity range of thirty-four thousand to four hundred twenty-five thousand BtuH.

• Easy installation with accessible adjustments and connections from the top of the control.
• Complete safety shut-off on pilot flame failure.
• Includes various reducers and adapters for enhanced compatibility.

Product Highlights

This gas valve is ideal for applications requiring strict safety measures and reliable operation in a wide range of temperatures.

Product Information

Standard Information

• Manufacturer: Honeywell
• MPN: V400A1095/U

Technical Specifications

• Type: Multi-Tapped, Standard Opening, Straight-Through
• Gas Type: Natural Gas
• End Style: NPT
• Dimensions: 4-3/4 Inch H x 4-1/16 Inch W x 3-3/16 Inch D
• Coil Voltage: 120 VAC, 60 Hz
• Nominal Size: 3/4 Inch
• Ignition Type: Standing Pilot
• Pressure Rating: 0.5 psi
• Nominal Capacity: 34000 - 425000 BtuH
• Temperature Range: 32 - 175 deg F
• Electrical Connection: 39 Inch Leadwires with Conduit Cover
