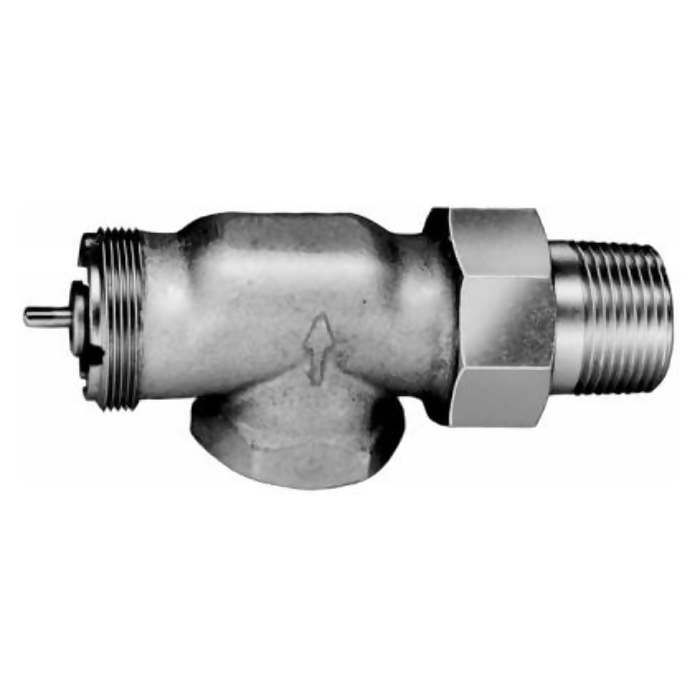

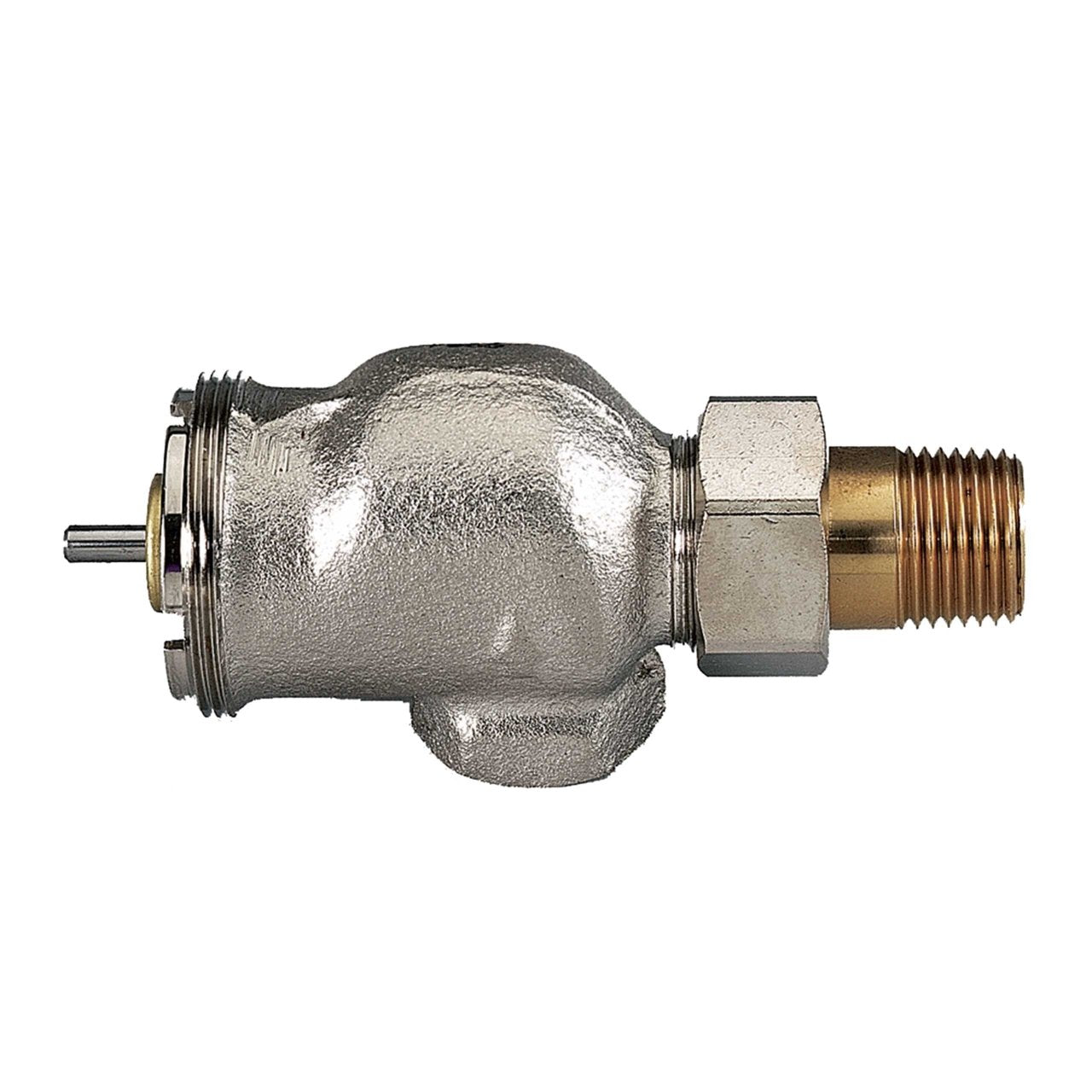

Honeywell V110F1010/U radiator valve 5.8 Cv 3/4 in. horizontal angle pattern

Product Description

The HONEYWELL V110F1010/U Radiator Valve is a high-capacity thermostatic valve designed for hot water or steam systems. Featuring a nickel-plated bronze casted body, it provides precise and automatic control of room temperature by modulating flow through radiators and heating units. It has a 5.8 Cv flow coefficient, a maximum operating temperature of 248°F, and a close-off pressure of 17 psi. This 3/4 inch threaded valve is suitable for two-pipe systems.

• Designed with the higher capacity normally required by North American heating systems
• Valve seat disc, made of resilient EPDM material, ensures tight shut-off on steam or hot water systems
• Nickel-plated bronze casted body with working parts in cartridge insert for ease of service

Product Highlights

High capacity thermostatic radiator valve for precise temperature control in hot water or steam heating systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: V110F1010/U
• Country of Origin: United States

Technical Specifications

• Compatible Media: Hot Water Or Steam
• Differential Pressure (Max): 17 psi
• Max Operating Temperature: 248 F
• Finish: Nickel Plated
• Series: V110F
• Body Material: Bronze
• Connection Type: Threaded
• Nominal Size: 3/4 Inch
• Pressure Rating: 150 psi Water, 15 psi Steam
• Heating Capacity: 162000 BtuH
• Flow Coefficient: 5.8 Cv
• Valve Type: Thermostatic Radiator Valve
• DN Size: DN20
• Valve Body Pattern: Horizontal Angle
• For Use With: T104 Thermostatic Actuator
• Seat Disc Material: EPDM
