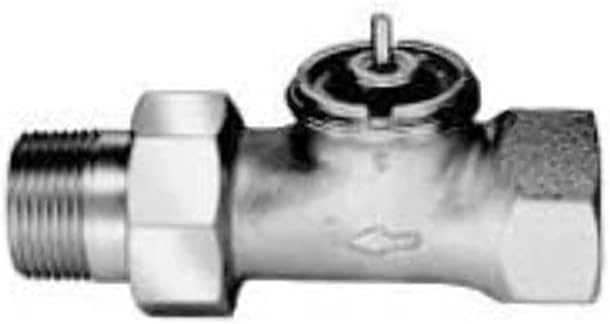

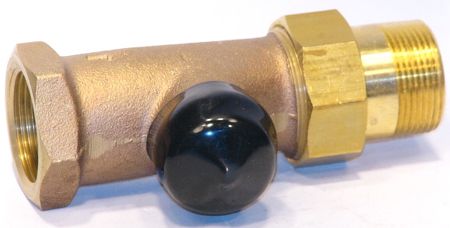

Honeywell V110D1016 Braukmann V110 High Capacity Thermostatic Radiator Valve 1 Inch FPT x MPT Union

Product Description

The Honeywell V110D1016 is a Braukmann high capacity thermostatic radiator valve designed for efficient control in heating systems. This valve features a one-inch female pipe thread by male pipe thread union connection. It is suitable for various heating applications including hot water and steam systems. This valve operates without electrical connections, making installation straightforward.

• High capacity design for efficient heating control.
• Non-electric operation for ease of use.
• Durable bronze construction ensures longevity.

Product Highlights

The V110D1016 continuously monitors and adjusts the room temperature to provide consistent heating comfort. The valve features a resilient EPDM seat disc for tight shut-off on steam or hot water systems.

Product Information

Standard Information

• Brand: Honeywell
• MPN: V110D1016

Technical Specifications

• Type: High Capacity, Straight Body
• Finish: Nickel Plated
• Material: Bronze
• Nominal Size: 1 Inch
• Pressure Rating: 150 psi Maximum Hot Water, 15 psi Maximum Steam
• Heating Capacity: 193000 BtuH
• Coefficient of Volume: 7 Cv
• Valve Connection: FPT x MPT Union
• Weight: 2.00 lbs
