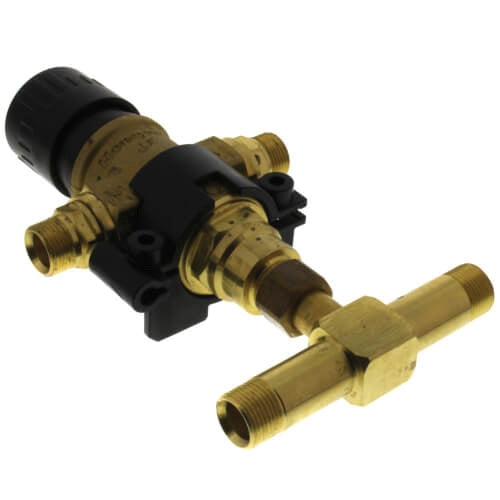

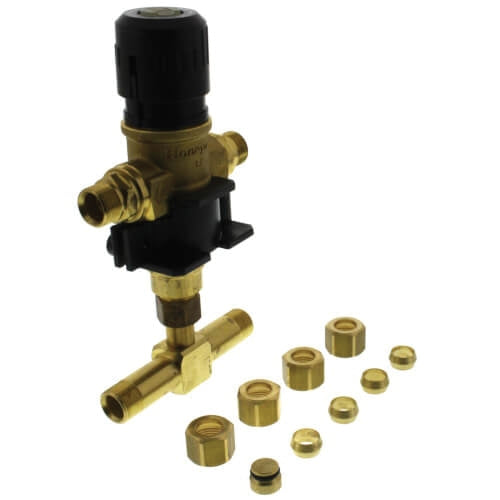

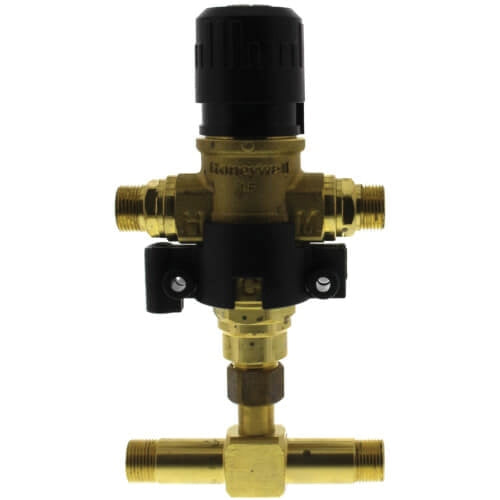

Honeywell UMV500-LF/U Honeywell UMV Series 3/8 inch x 3-5/32 inch L Lead-Free Brass Universal Undersink Thermostatic Mixing Valve

Product Description

The Honeywell UMV500-LF/U is a thermostatic mixing valve designed for under counter and under sink applications. This lead-free brass valve ensures safe water temperatures to prevent accidental scalding. It accommodates a flow capacity between zero point five two to four point three gallons per minute and operates at a maximum temperature of one hundred eighty degrees Fahrenheit. The valve fits three-eighth inch inlet and outlet sizes and is applicable for both three-port and four-port designs.

• Lead-free brass construction
• Flow capacity of zero point five two to four point three gallons per minute
• Designed to prevent accidental scalding in under sink applications

Product Highlights

This valve features integral check valves, a lockable hand wheel for temperature control, and comes with mounting standoffs for easy installation.

Product Information

Standard Information

• Classification: Mixing Valve
• Type: Universal, Undersink

Technical Specifications

• Flow Capacity: 0.52 - 4.3 gpm
• Inlet Size: 3/8 inch
• Outlet Size: 3/8 inch
• Maximum Temperature: 180 °F
• Pressure Rating: 20 - 125 psi
• Dimensions: 1-37/64 inch W x 5-31/32 inch H
• Body Material: Lead-Free Brass
• Applications: For Use in Under Counter and Under Sink Applications to Prevent Accidental Scalding
• Standards/Approvals: ASSE 1070, CSA Certified, IAPMO/UPC Listed, NSF 61, 372
