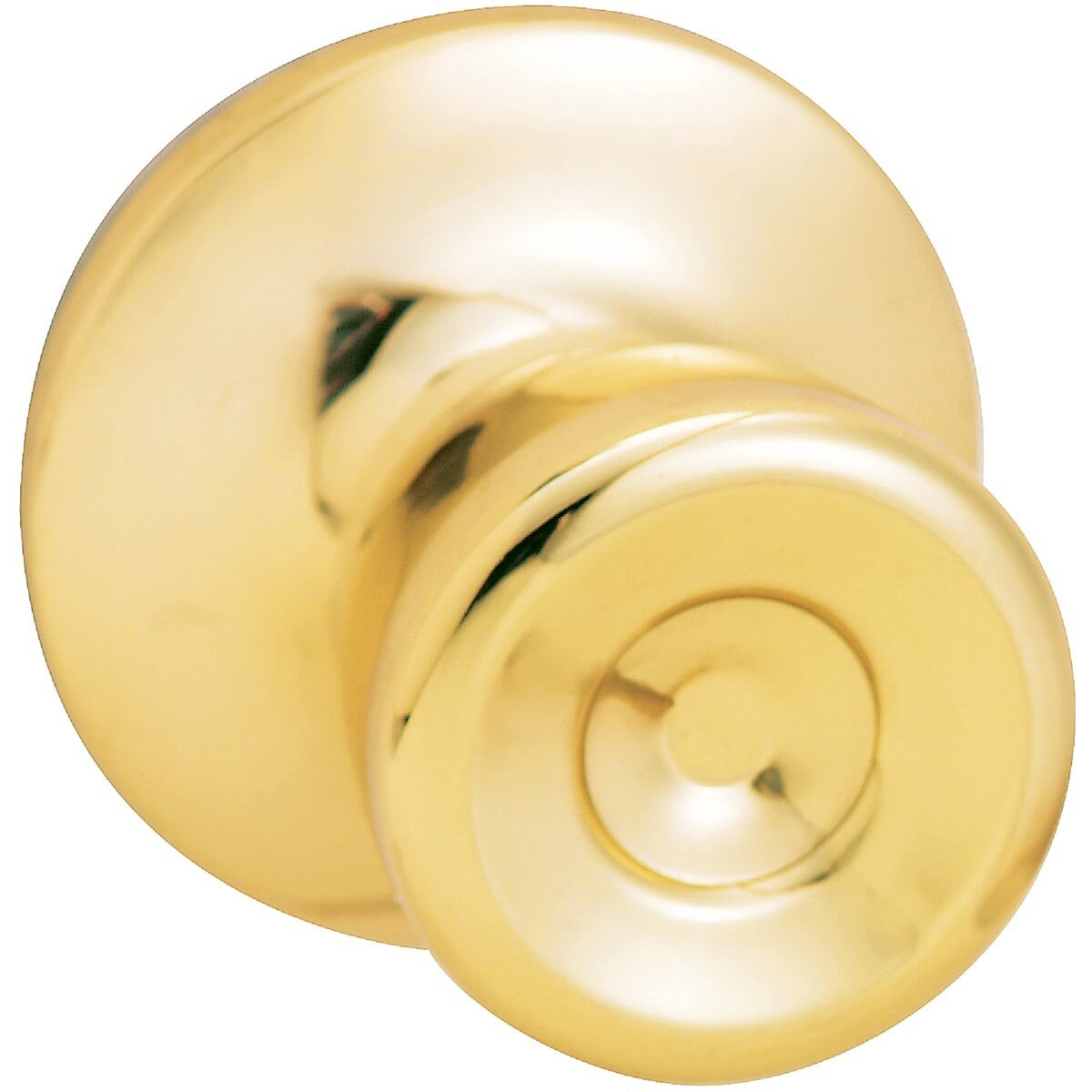

Honeywell TR730B Polished Brass Hall Closet Door Knob

Product Description

The HONEYWELL TR730B is a tulip-style passage door knob set designed for interior hall and closet doors where a simple latch function is required. Constructed with a steel core and finished in polished brass, this passage set includes an adjustable latch that accommodates both 2-3/8 inch and 2-3/4 inch backsets using a square face plain latch. Both knobs operate identically, allowing either side to retract the latch bolt at all times. This is a non-locking passage function, meaning there is no keying or privacy lock involved. It is sold as a single unit and is suited for installation by general contractors, finish carpenters, and property maintenance technicians.

The TR730B is intended for residential and light commercial interior doors where access control is not required. Typical applications include hallway doors, closet doors, pantry doors, and other interior passages. The adjustable backset latch makes it compatible with standard door preparations across a wide range of door thicknesses and frame configurations commonly found in residential construction. The consumer clear pack includes all hardware needed for a complete installation on a pre-bored door.

Key Features

• Tulip-style knob profile on both sides for a classic interior aesthetic
• Adjustable latch fits 2-3/8 inch or 2-3/4 inch backsets interchangeably
• Square face plain latch included with the set
• Non-locking passage function — either knob retracts the latch bolt at all times
• Steel construction with polished brass finish
• Packaged as a consumer clear pack, single unit per package

Compatibility

Designed as a standard passage-function replacement or new-installation door knob for interior doors with pre-bored holes accepting a 2-3/8 inch or 2-3/4 inch backset latch.

Installation Notes

Installation is typically performed by a finish carpenter, general contractor, or experienced maintenance technician using a screwdriver and a tape measure. Confirm the door bore diameter and backset measurement before installing to select the correct latch position. The door does not need to be removed from the frame for most installations, but the latch and strike plate alignment should be verified before final tightening. No electrical shutoff or gas shutoff is required for this hardware installation.

Technical Specifications

• Finish: Polished Brass
• Material: Steel
• Knob Style: Tulip
• Function: Passage (non-locking)
• Backset Compatibility: 2-3/8 inches or 2-3/4 inches (adjustable)
• Latch Face Type: Square Face Plain Latch
• Weight: 1.072 pounds
• Sold As: Each

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TR730B
