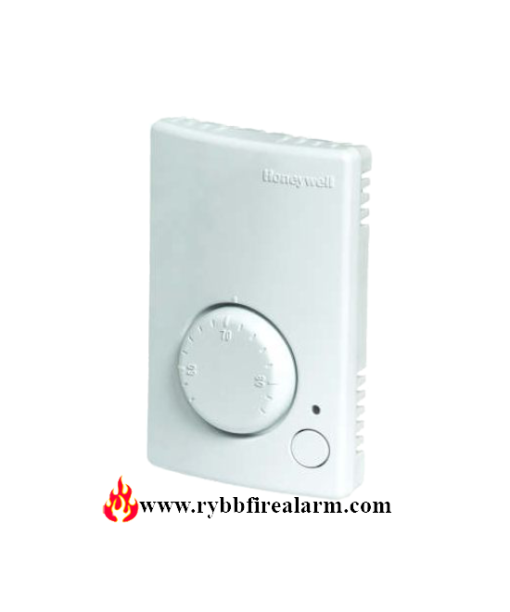

HONEYWELL TR23-F5-US Temperature Wall Module

Product Description

The HONEYWELL TR23-F5-US is a temperature wall module suitable for Honeywell Excel and Spyder Unitary Controllers. It utilizes a 20K ohm NTC non-linear thermistor sensor for accurate room temperature measurement in environments like classrooms, offices, and washdown areas. This module is designed to mount on a standard two by four inch junction box and features a decorator housing style.

• User-selectable dials for Fahrenheit, Celsius, and relative setpoint adjustments.
• Five-position fan switch for customized fan control settings.
• Includes an override button with an LED indicator for operational status.

Product Highlights

This device allows for flexible temperature control and monitoring in various commercial and educational settings.

Product Information

Standard Information

• Application: Networked Sensor, Room Temperature, Classroom Temperature, Office Temperature, Washdown Environment
• Mounting: Mounted on a standard 2 x 4 inch junction box

Technical Specifications

• Sensor Type: 20 K ohm NTC non-linear
• Fan Switch Positions: Auto-Off-1-2-3
• Includes: Selectable Setpoint dials, LON Jack, Override Button with LED, 5-position fan switch
• Compatible Controllers: Spyder, Excel 600, 500, 100, 80, 10, 15 Series
• Housing Style: Decorator
• Output: Resistance
• Override: Occupied/Unoccupied
• Sensor Element: 20K Thermistor
