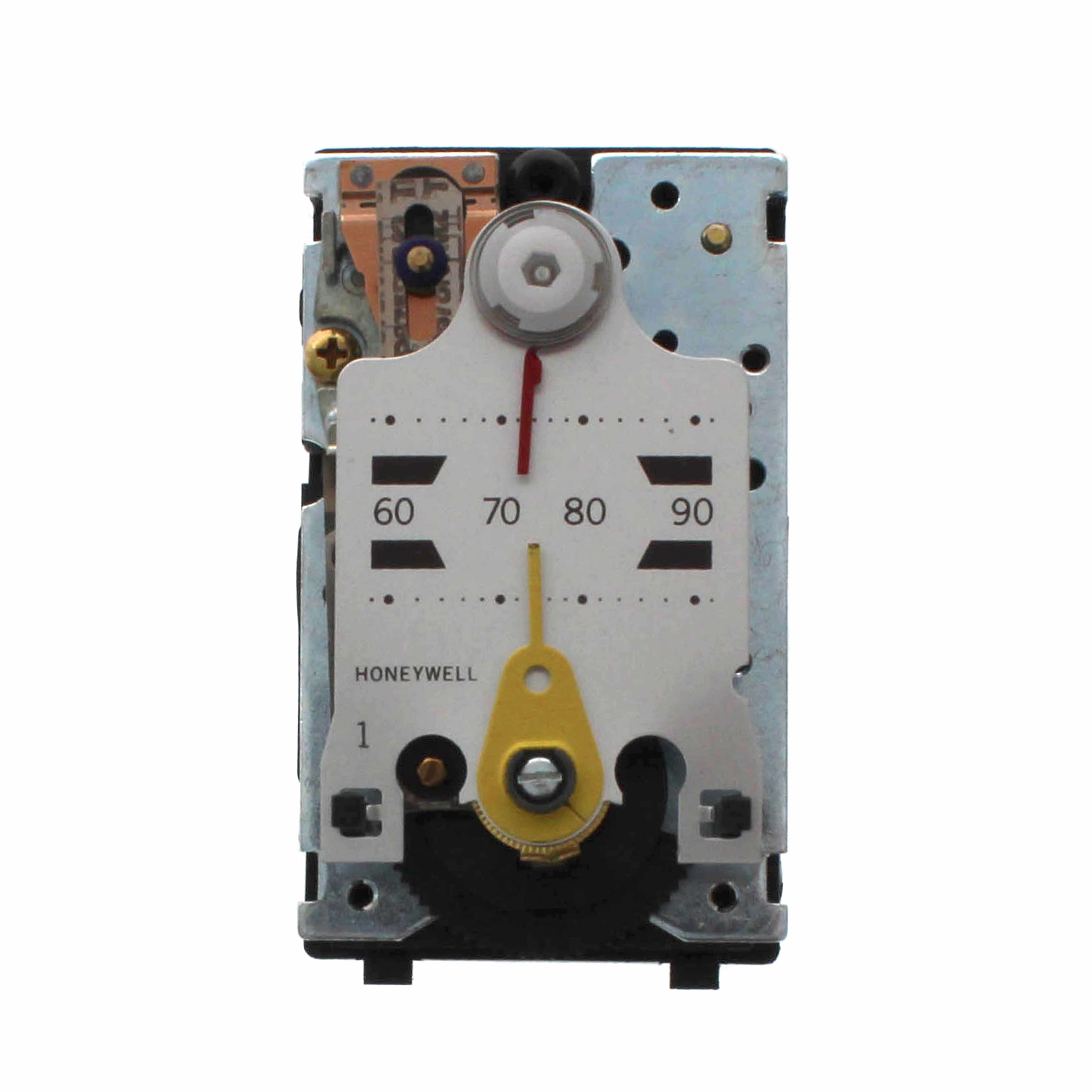

Honeywell TP973B2132 Pneumatic Thermostat Power

Product Description

The Honeywell TP973B2132 is a pneumatic thermostat designed for proportional control of pneumatic valves and damper actuators within HVAC systems. This device is ideal for two-pipe, single-setpoint applications, ensuring efficient heating and cooling. It enables temperature regulation with a range from sixty to ninety degrees Fahrenheit.

• Provides proportional control for pneumatic actuators.
• Adjustable throttling range from two to ten degrees Fahrenheit.
• Designed for two-pipe systems with a single setpoint.

Product Highlights

This thermostat is suitable for heating and air conditioning applications, offering reliable temperature management.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer: Honeywell

Technical Specifications

• Part Number: TP973B2132
• Model: P1904445
• Series: TP973B
• Type: Reverse Acting
• Connection: 1 or 2 Pipe
• Number of Pipes: 2
• Set Point Range: 60 to 90 °F
• Sensor Element: Bimetal
• Setpoints: Single
• Throttling Range: Adjustable, 2 to 10 °F (1 to 5 °C)
• Remote Bulb: No
• Air Consumption: 0.011 scfm (5.2 mL/s)
• Operating Temperature: 100 °F (37.8 °C) maximum
• Mounting: Wall
• Maximum Operating Pressure: 25 psi (170 kPa)
• Dimensions: 3.3 inches H x 2.0 inches W x 1.6 inches D (8.3 x 5.2 x 4.1 cm)
• Weight: 0.35 lb (0.2 kg)
• Connections: Barbs for 5/32 inches OD poly tubing
