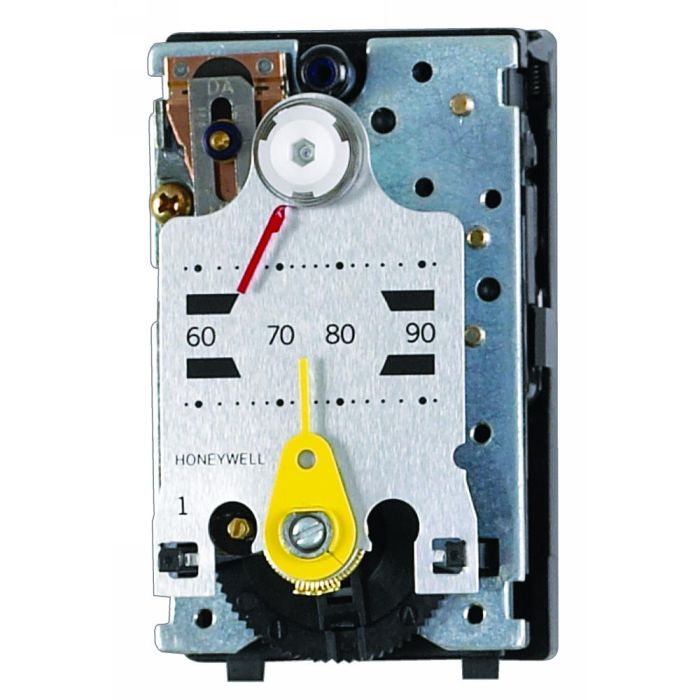

Honeywell TP972A2036/U Pneumatic Thermostat

Product Description

The Honeywell TP972A2036/U is a pneumatic thermostat designed for direct acting heating and reverse acting cooling. This model features dual set point adjustments and has a set point range of fifty degrees Fahrenheit to seventy-five degrees Fahrenheit for heating, and sixty degrees Fahrenheit to ninety degrees Fahrenheit for cooling.

• Durable TP970 series design.
• Adaptable to various existing thermostats.
• Includes a locking cover for safety.

Product Highlights

This thermostat provides proportional control for pneumatic valves and damper actuators, ensuring efficient climate control.

Product Information

Standard Information

• Application: Wall mount thermostat
• Mounting: Wall mount

Technical Specifications

• Temperature Range (F): 50 F to 90 F
• Dimensions: 3.25 inches high x 2 inches wide x 1.625 inches deep
• Airflow Usage: 0.011 scfm
• Max Operating Pressure: 25 psi
• Sensor Element: Bimetal
• Action: Direct acting heating, reverse acting cooling
• Setpoint: Dual
• Number of Pipes: 2
