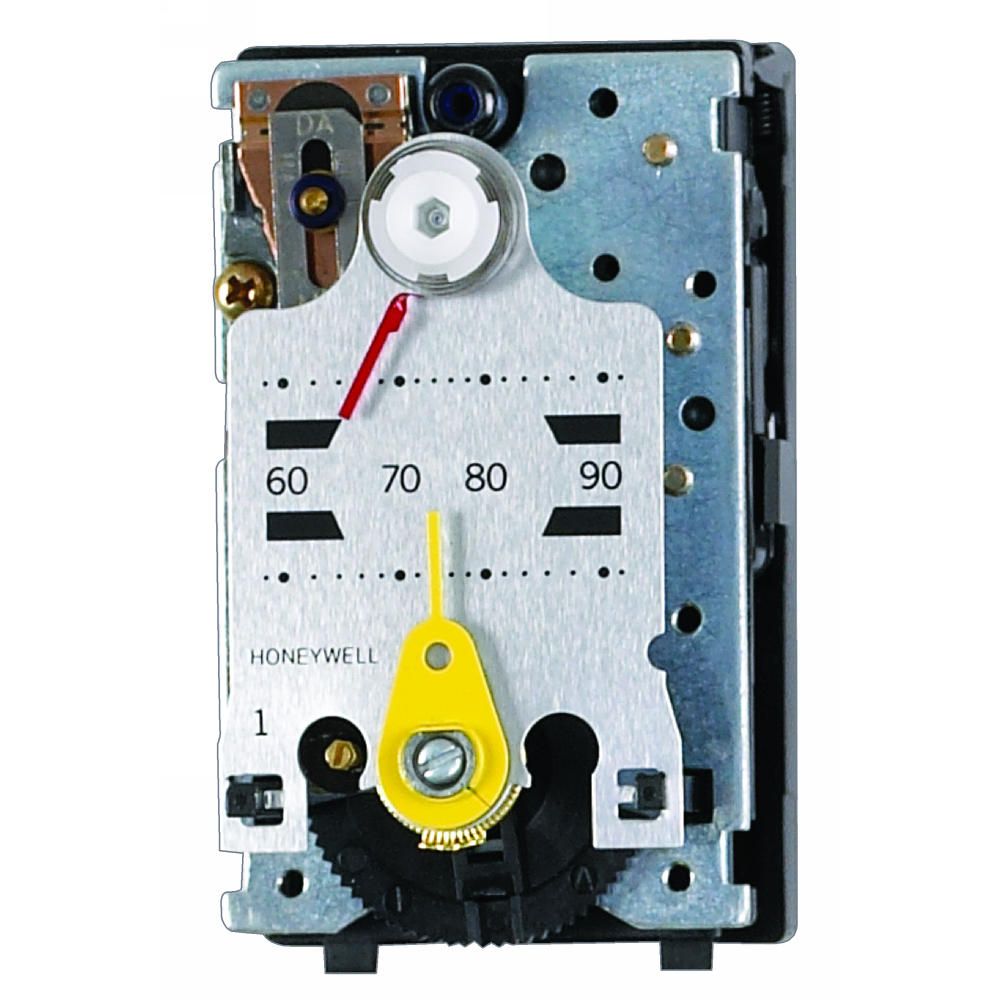

Honeywell TP972A2002/U Pneumatic Thermostat Direct Acting Heating Reverse Acting Cooling

Product Description

The Honeywell TP972A2002/U is a pneumatic thermostat that provides direct acting heating and reverse acting cooling. This unit operates efficiently within a set point range from fifty-nine degrees Fahrenheit to ninety degrees Fahrenheit. It regulates temperatures in two-pipe systems and is suitable for both one-temperature and two-temperature applications. The thermostat is built for high capacity usage and suitable for pneumatic valve and damper actuator control.

• Durable design with pilot operation for high capacity.
• Universal locking cover option available.
• Adapter plate in kits covers existing wall marks.

Product Highlights

This Honeywell thermostat is designed to control heating and cooling efficiently with a reliable functionality in commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: TP972A2002/U

Technical Specifications

• Application: Wall Thermostat, Heat/Cool Operation
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: 3.25 inches high x 2 inches wide x 1.625 inches deep
• Maximum Safe Operating Pressure: 25 psi
• Temperature Range: 100 F maximum
• Setpoint Temperature Range: 59 F to 90 F
• Mounting: Wall mount
• Sensor Element: Bimetal
• Changeover Pressure: Heat 18 psi, Cool 13 psi
