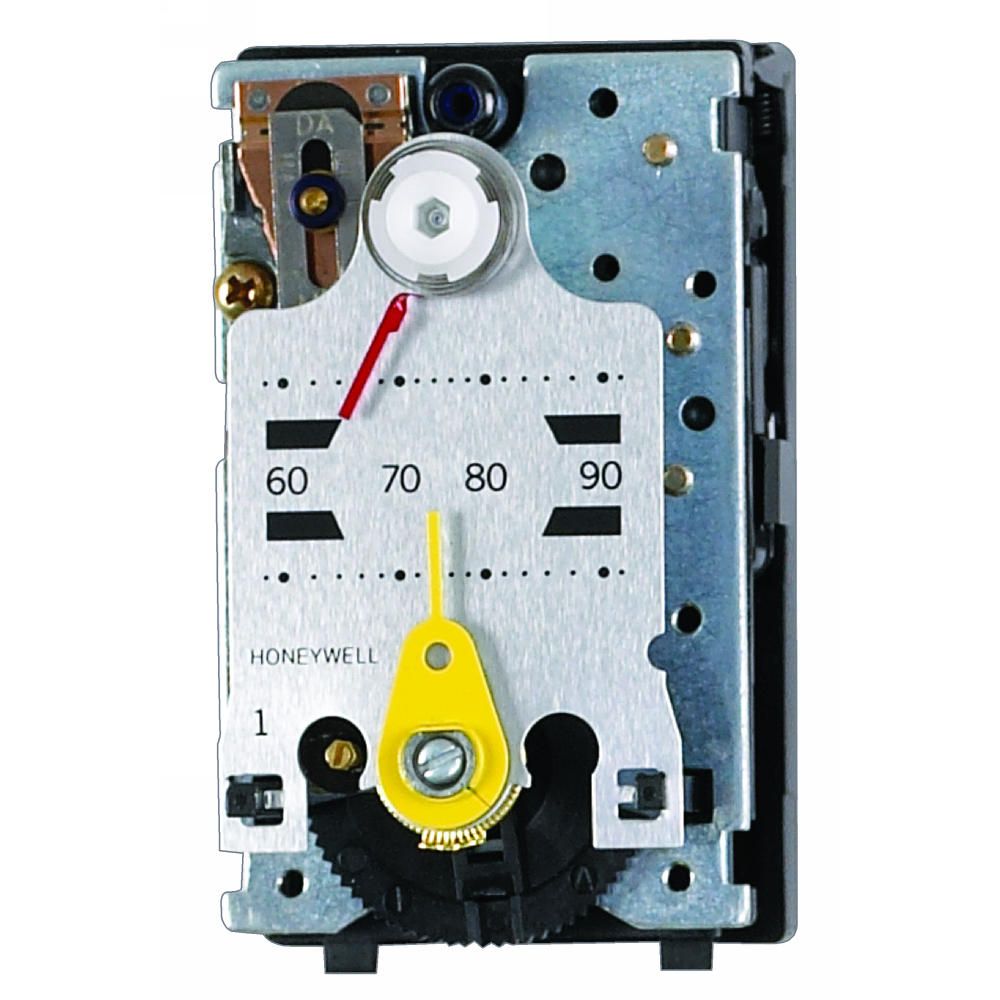

Honeywell TP971C2017/U Pneumatic Thermostat

Product Description

The Honeywell TP971C2017/U is a pneumatic thermostat designed for direct acting heating systems. This thermostat is suitable for controlling pneumatic valves and damper actuators effectively. It features a night setback function for better temperature management. The temperature range for daytime settings is from fifteen degrees Celsius to thirty degrees Celsius, and for nighttime, it ranges from ten degrees Celsius to twenty-seven degrees Celsius.

• Durable TP970 Series Thermostat
• Pilot operated for high capacity
• Three-pipe system for unit ventilator applications

Product Highlights

This Honeywell thermostat is equipped with unique features for reliable operations. It includes an adapter plate that works with existing thermostat setups. The backplate comes with molded air connections that eliminate the need for separate fittings. Its universal locking cover features several options for window displays.

Product Information

Standard Information

• Application: Wall Thermostat, Day/Night operation
• Airflow Usage: 0.011 scfm (5.2 mL/s)

Technical Specifications

• Dimensions: Three and one-fourth inches high x two inches wide x one and five-eighths inches deep
• Maximum Safe Operating Pressure: 25 psi (170 kPa)
• Temperature Range: Maximum 38 degrees Celsius
• Setpoint Temperature Range: Day 15 to 30 degrees Celsius, Night 10 to 27 degrees Celsius
• Mounting Type: Wall mount
• Sensor Element: Bimetal
• Number of Pipes: 3
• Throttling Range: 2 to 10 degrees Fahrenheit
