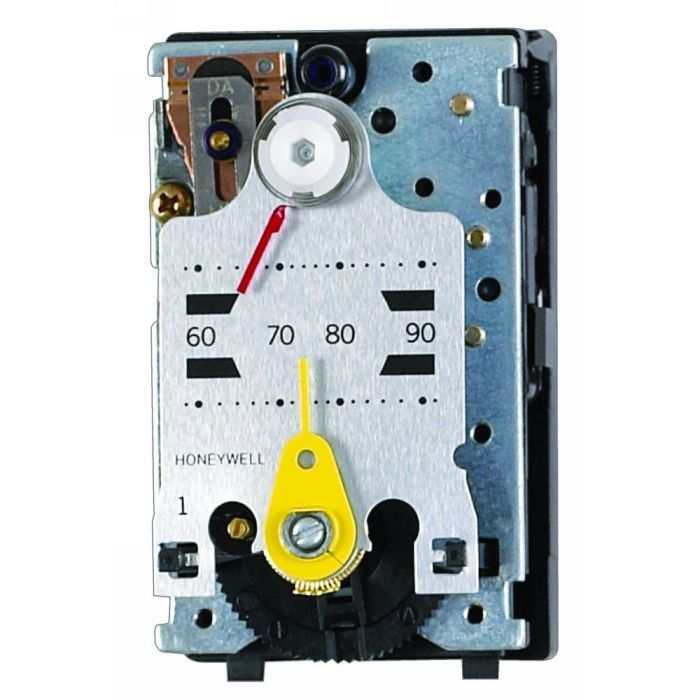

Honeywell TP971C2009/U Pneumatic Thermostat Direct Acting Heating

Product Description

The Honeywell TP971C2009/U is a pneumatic thermostat designed for direct acting heating systems. This device features a day and night set point adjustment, providing a range of fifty-nine degrees Fahrenheit to ninety degrees Fahrenheit during the day and fifty degrees Fahrenheit to eighty degrees Fahrenheit at night. It is suitable for use in applications requiring control of pneumatic valves and damper actuators.

• Durable TP970 series with pilot operation.
• Three-pipe configuration for unit ventilator applications.
• Adapter plate included to cover existing thermostat markings.

Product Highlights

Reliable operation with a focus on efficiency in various pneumatic control applications.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: TP971C2009/U

Technical Specifications

• Application: Wall Thermostat, Day/Night operation
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: 3.25 inches high x 2 inches wide x 1.625 inches deep
• Maximum Safe Operating Pressure: 25 psi
• Temperature Range: 100 F maximum
• Setpoint Temperature Range: Day: 59 F to 90 F, Night: 50 F to 80 F
• Mounting: Wall mount
• Sensor Element: Bimetal
• Number of Pipes: 3
