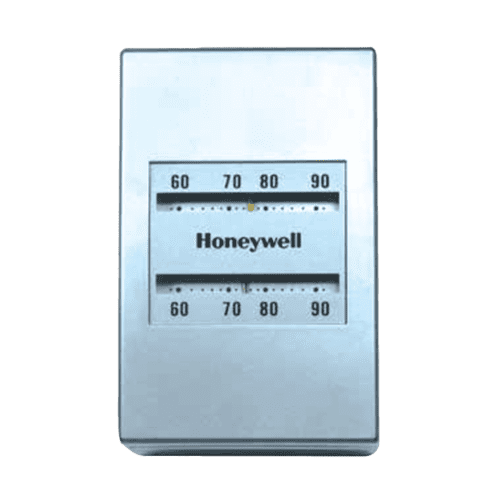

Honeywell TP971B2068 Pneumatic Thermostat with Satin Chrome Cover

Product Description

The Honeywell TP971B2068 is a pneumatic thermostat designed for heating and air conditioning systems. This single setpoint model offers proportional control of pneumatic valves and damper actuators. The thermostat has a robust design with a satin chrome cover and is suitable for two-pipe systems.

• Provides proportional control of pneumatic systems.
• Features an adjustable throttling range.
• Durable, shock-resistant design.

Product Highlights

Effective control solution for HVAC applications with a sleek design.

Product Information

Standard Information

• Brand: Honeywell
• MPN: TP971B2068

Technical Specifications

• Type: Reverse Acting
• Connection: Two Pipe
• Set Point Range: Sixty to Ninety °F
• Pressure Range: Eighteen Heat / Thirteen Cool PSIG
• Connections: Barbs for Five Thirty-Second OD poly tubing
• Number of Pipes: Two
• Sensor Element: Bimetal
• Setpoints: Single
• Throttling Range: Adjustable, Two to Ten °F (One to Five °C), factory set at Four °F (Two °C)
• Remote Bulb: No
• Air Consumption: Zero Point Zero Eleven scfm (Five Point Two mL/s)
• Operating Temperature: One Hundred °F (Thirty-Seven Point Eight °C) maximum
• Mounting: Wall
• Maximum Operating Pressure: Twenty-Five psi (One Hundred Seventy kPa)
• Dimensions: Three Point Three inches H x Two Point Zero inches W x One Point Six inches D (Eight Point Three x Five Point Two x Four Point One cm)
• Weight: Zero Point Thirty-Five lb (Zero Point Two kg) to One Point Three lb (Zero Point Six kg) depending on kit/cover
• Warranty: One year
