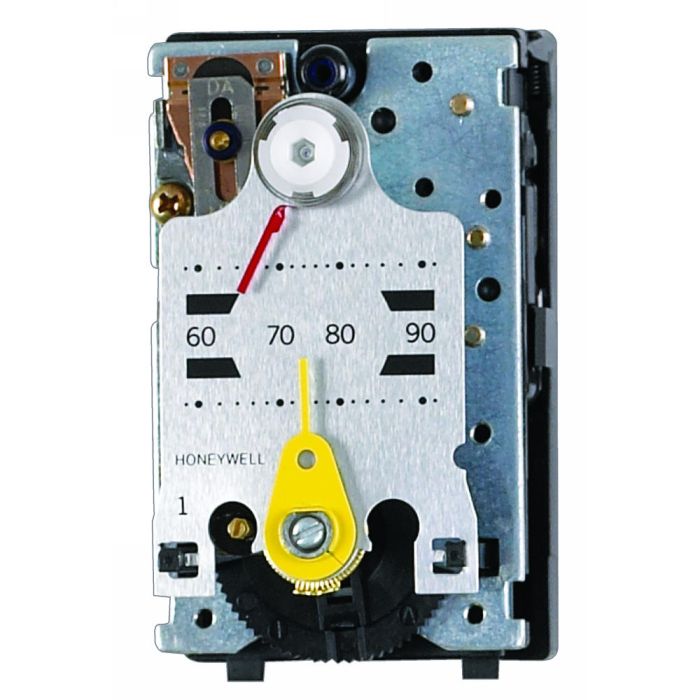

Honeywell TP971A2052/U Pneumatic Thermostat Direct Acting Heating

Product Description

The Honeywell TP971A2052/U is a pneumatic thermostat designed for direct acting heating. It operates efficiently for two pipe systems and provides both day and night set point adjustments. This thermostat is ideal for controlling pneumatic valves and damper actuators in commercial applications.

• Direct acting response for precise temperature control
• Temperature range from fifteen degrees Celsius to thirty degrees Celsius during the day and ten degrees Celsius to twenty-seven degrees Celsius at night
• Universal design fits existing installations without additional fittings

Product Highlights

Use this thermostat for reliable HVAC control in various commercial settings.

Product Information

Standard Information

• Application: Wall Thermostat, Day/Night Operation
• Mounting: Wall mount

Technical Specifications

• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: Three and one-fourth inches high x two inches wide x one and five-eighths inches deep
• Maximum Safe Operating Pressure: Twenty-five psi
• Temperature Range: Maximum thirty-eight degrees Celsius
• Setpoint Temperature Range: Day from fifteen to thirty degrees Celsius, Night from ten to twenty-seven degrees Celsius
• Sensor Element: Bimetal
• Number of Pipes: Two
• Changeover Pressure: Day sixteen psi, Night twenty-one psi
