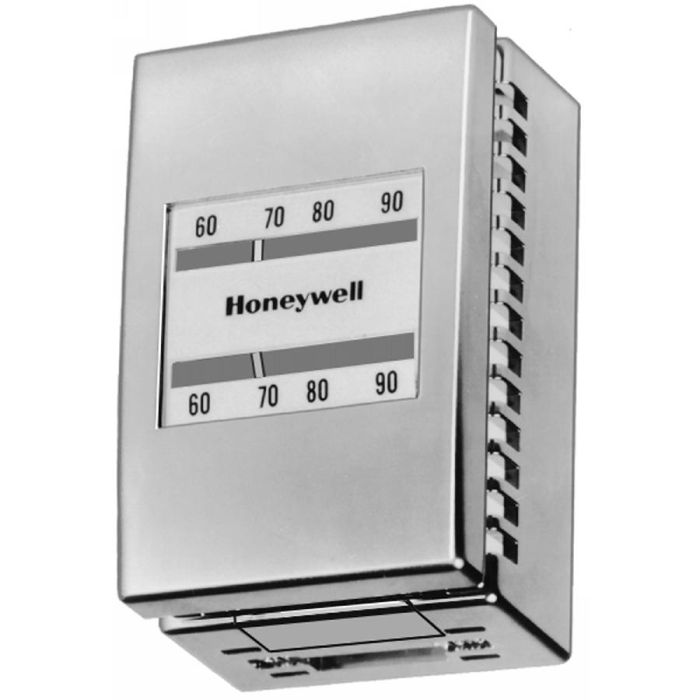

Honeywell TP970A2317 Pneumatic Thermostat Two-Pipe Direct Acting

Product Description

The Honeywell TP970A2317 is a direct acting pneumatic thermostat designed for use in two-pipe heating and air conditioning systems. This thermostat provides proportional control for pneumatic valves and damper actuators, making it effective in maintaining comfortable temperatures. It features an adjustable throttling range, allowing for precise temperature regulation. The unit comes with a satin chrome cover and a backplate equipped with molded air connections, ensuring a robust installation.

• Proportional control for pneumatic valves and damper actuators
• Adjustable throttling range from two to ten degrees Fahrenheit
• Includes a satin chrome cover for durability

Product Highlights

This thermostat is compatible with both Honeywell and other brand two-pipe systems, providing a reliable replacement option.

Product Information

Standard Information

• Brand: Honeywell
• Type: Direct Acting

Technical Specifications

• MPN: TP970A2317
• Number of Pipes: 2
• Setpoints: Single
• Setpoint Range: 60°F to 90°F
• Throttling Range: Adjustable, 2°F to 10°F
• Air Consumption: 0.011 scfm
• Mounting: Wall
• Dimensions: 3.3 inches H x 2.0 inches W x 1.6 inches D
