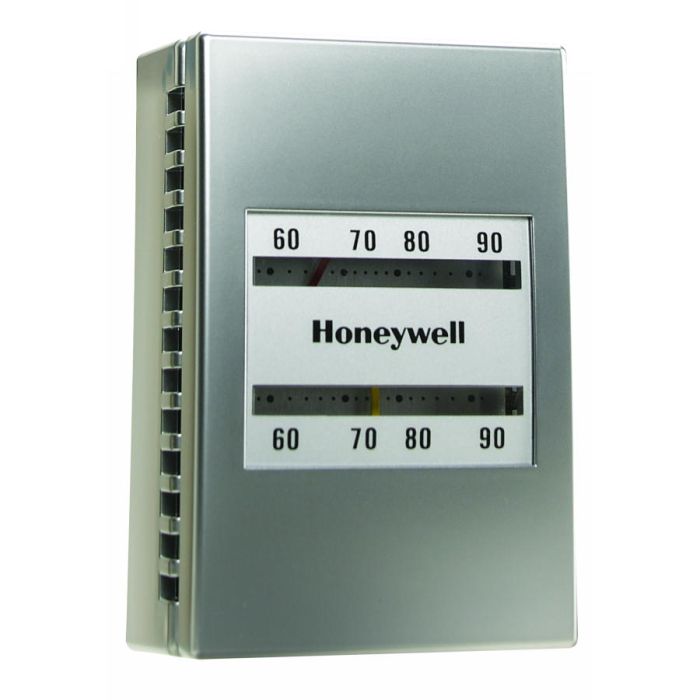

Honeywell TP970A2259/U Pneumatic Thermostat Direct Acting (59 F To 90 F) Replacement MPN

Product Description

Honeywell TP970A2259/U is a pneumatic thermostat designed for direct acting control in heating and air conditioning systems. It features a set point range from fifty-nine degrees Fahrenheit to ninety degrees Fahrenheit. This thermostat is built for two-pipe systems and provides reliable performance.

• Pilot operated for high capacity.
• Shock-resistant and suspension-mounted for dependable use.
• Wide throttling range for Zero Energy Band operation.

Product Highlights

This pneumatic thermostat is suitable for commercial building controls and is compatible with various pneumatic valve systems.

Product Information

Standard Information

• Application: Heating
• Mounting: Wall mount

Technical Specifications

• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: Three and one-fourth inches high x two inches wide x one and five-eighths inches deep
• Maximum Safe Operating Pressure: 25 psi
• Temperature Range: 100 F maximum
• Setpoint Temperature Range: Fifty-nine to ninety degrees Fahrenheit
• Throttling Range: Two to ten degrees Fahrenheit (factory set four degrees)
• Sensor Element: Bimetal
