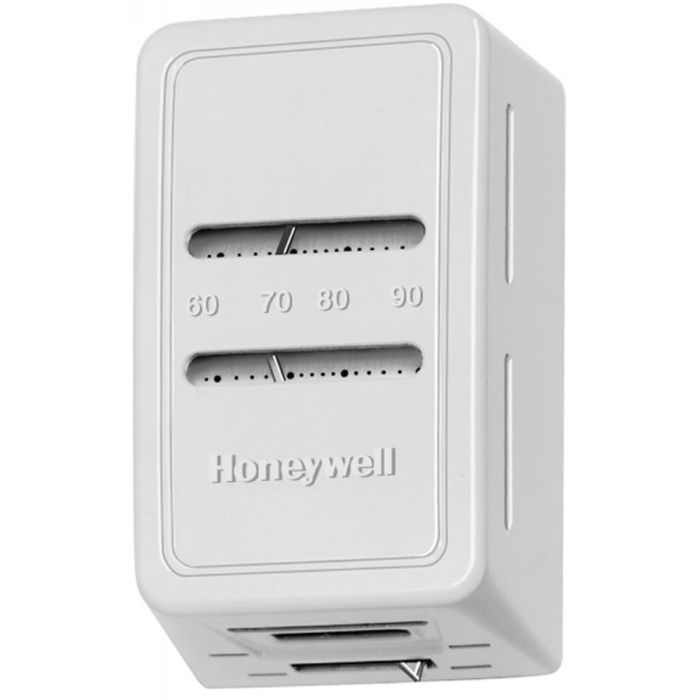

Honeywell TP9630B1003/U Pneumatic Thermostat

Product Description

The Honeywell TP9630B1003/U is a pneumatic thermostat designed for efficient temperature control in one or two pipe systems. This thermostat features a bimetal sensing element and a high capacity, ideal for commercial applications.

• Single set point range of sixty degrees Fahrenheit to ninety degrees Fahrenheit.
• Compatible with both one and two pipe systems for broad application.
• Includes a straight-scale thermometer for easy temperature reading.

Product Highlights

The Honeywell TP9630B1003/U offers dependable temperature management and is simple to install, making it a practical choice for HVAC professionals.

Product Information

Standard Information

• Brand: Honeywell
• Manufacturer Part Number: TP9630B1003/U

Technical Specifications

• Temperature Range: 60 F to 90 F
• Operating Pressure: Up to 25 psi
• Dimensions: 3.25 inches high x 2 inches wide x 1.625 inches deep
• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Throttling Range: 2 F to 10 F
• Mounting Type: Vertical Wall Mounting
• Action Type: Reverse Acting
• Includes: Cover, setpoint, and thermometer visible
