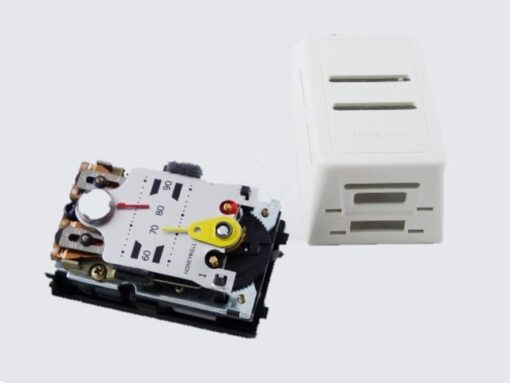

Honeywell TP9630A1004/U Pneumatic Thermostat

Product Description

The Honeywell TP9630A1004/U is a pneumatic thermostat designed for precise temperature control in wall-mounted applications. It operates effectively within a temperature range of sixty degrees Fahrenheit to ninety degrees Fahrenheit. This device is suitable for both one-pipe and two-pipe systems, making it versatile for different installation setups.

• Direct acting mechanism for accurate temperature control
• Includes visible cover, setpoint, and thermometer
• Compatible with high-volume pneumatic applications

Product Highlights

This thermostat efficiently controls pneumatic valves and actuators, providing reliable performance and easy installation for HVAC professionals.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: TP9630A1004/U

Technical Specifications

• Airflow Usage: 0.011 scfm (5.2 mL/s)
• Dimensions: Three and a quarter inches high x two inches wide x one and five-eighths inches deep
• Maximum Safe Operating Pressure: 25 psi
• Temperature Range: 50 F to 100 F
• Mounting: Vertical wall mounting
• Setpoint Temperature Range: 60 F to 90 F
• Sensor Element: Bimetal
• Connection Size: Barb fittings 5/32 in. (4 mm)
