Product Description
The Honeywell TP9620A1005 is a pneumatic thermostat designed for controlling pneumatic valves and actuators in one- or two-pipe systems. This model supports direct heating and reverse cooling actions, ensuring efficient temperature management in commercial settings.
- Proportional control for reliable performance.
- Quick and easy installation with backplate mounting.
- Neutral color blends with modern interiors.
Product Highlights
This thermostat features redesigned models to meet high-volume pneumatic applications.
Product Information
Standard Information
-
Brand: Honeywell
-
MPN: TP9620A1005
Technical Specifications
-
Description: Pneumatic Thermostat Direct Heating, Reverse Cooling Acting, Wall Thermostat, Heat/Cool Operation
-
Application: Wall Thermostat, Heat/Cool Operation
-
Remote Bulb: No
-
Setpoint: Single
-
Action: Direct Acting Heating, Reverse Acting Cooling
-
Number of Pipes: 2
-
Setpoint Temperature Range (F): 60 F to 90 F
-

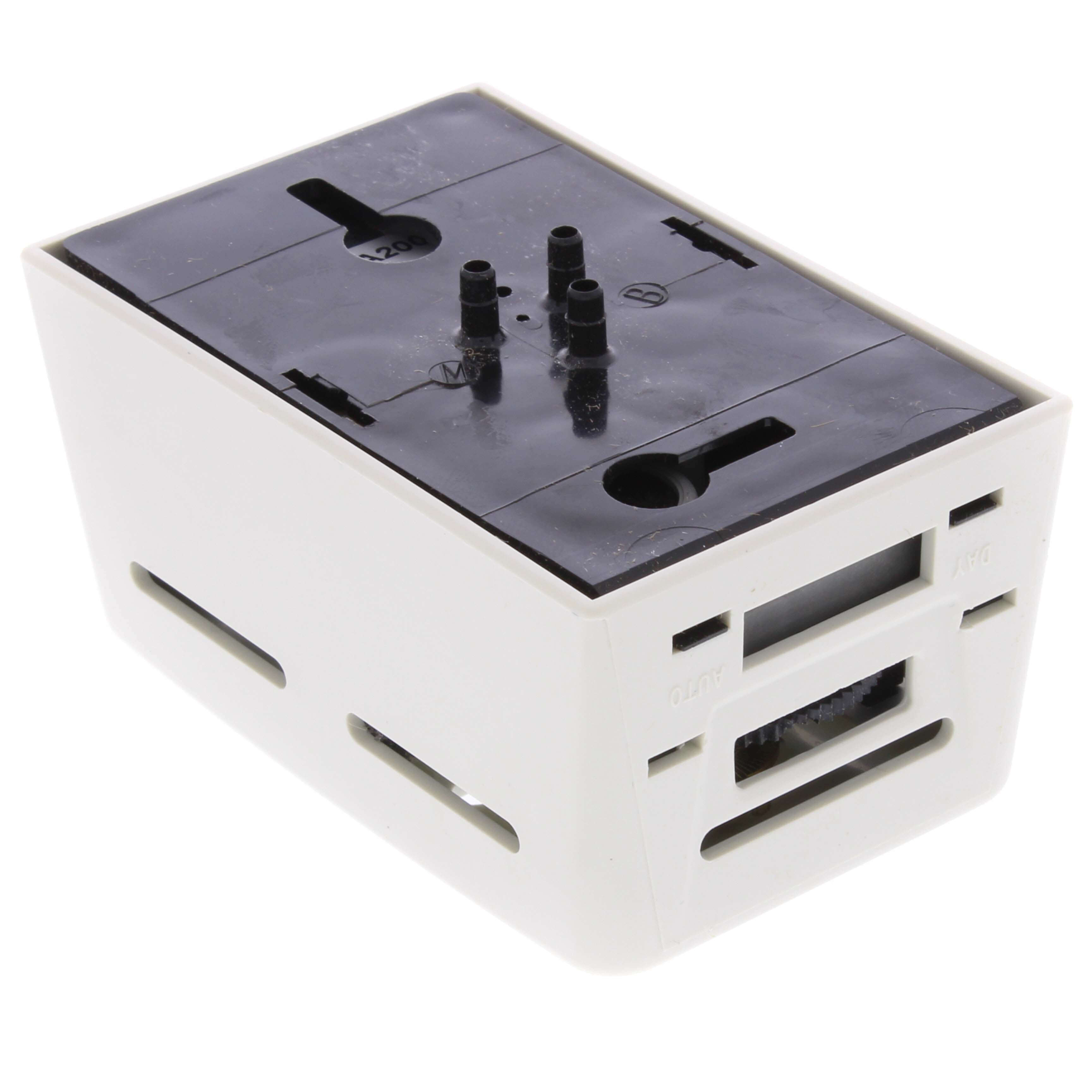

Air connections: Barb fittings 5/32 in. (4 mm)
-

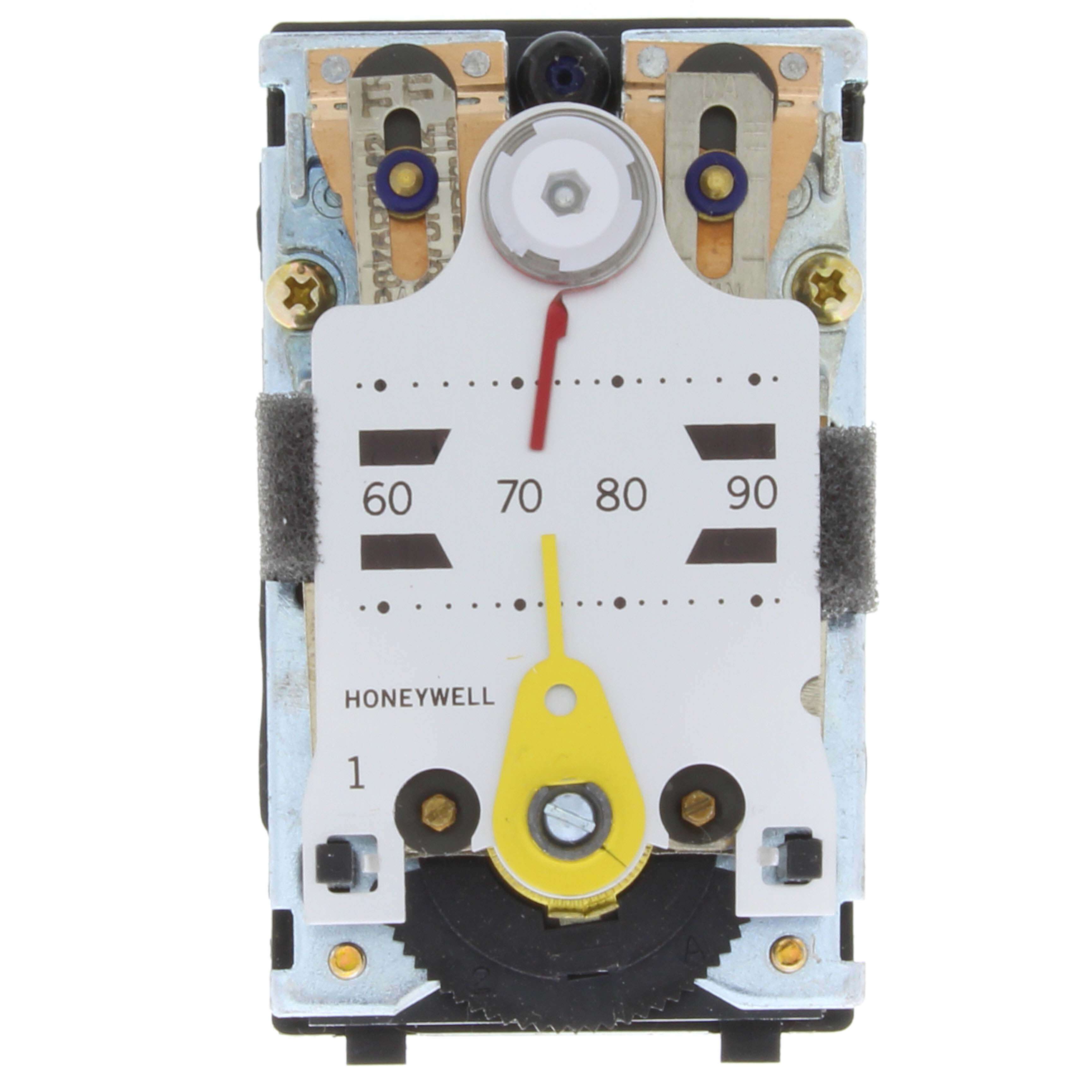

Sensor Element: Bimetal
-
Changeover Pressure (psi): Heat 18 psi, Cool 13 psi
-
Maximum Safe Operating Pressure (psi): 25 psi
-
Operating Temperature Range (F): 50 F to 100 F
-
Storage Temperature (F): 150 F maximum
-
Throttling Range (F): 2 F to 10 F
-
Airflow Usage: 0.011 scfm (5.2 mL/s)
-
Dimensions (in.): 3-1/4 high x 2 wide x 1-5/8 deep
-
Mounting: Vertical Wall Mounting
-

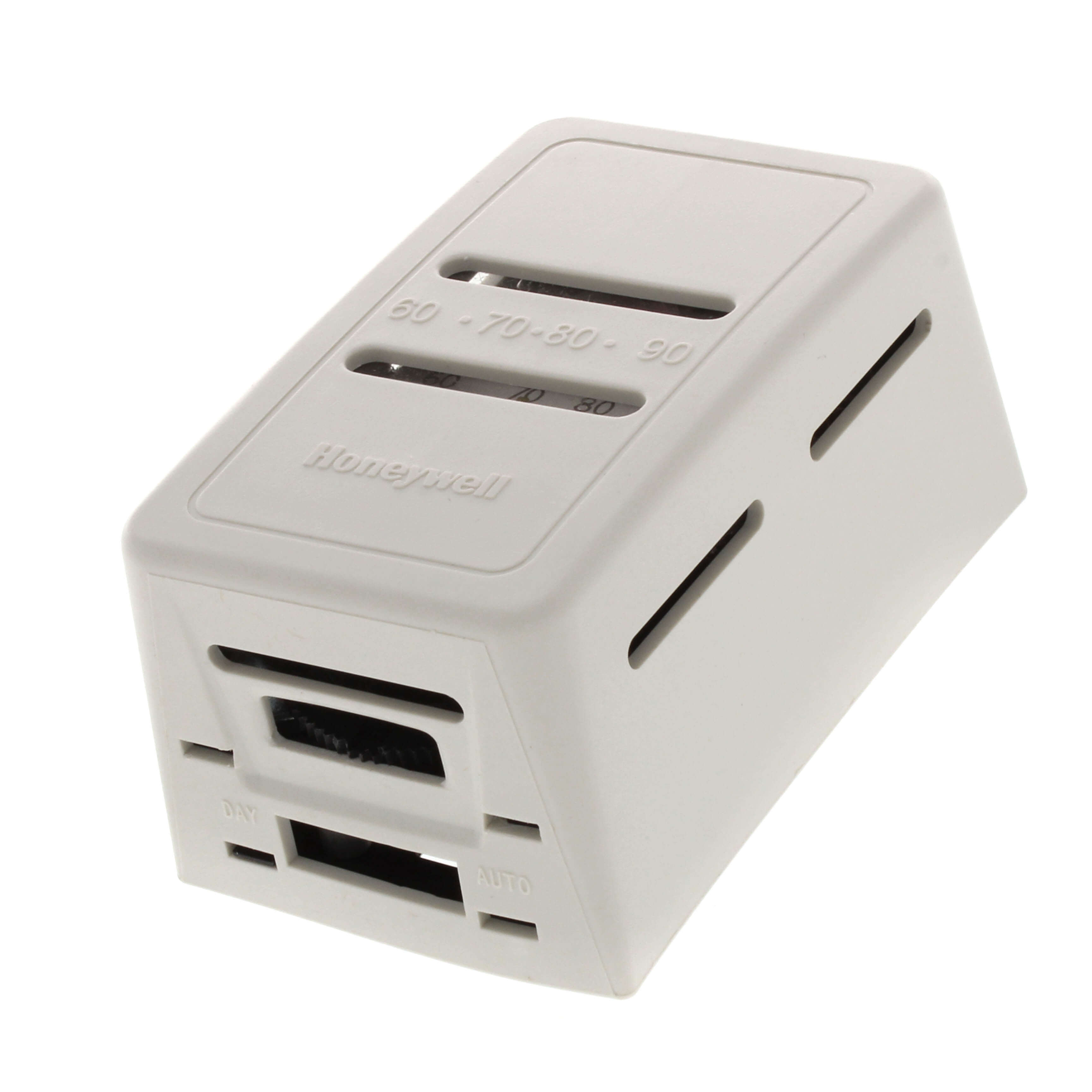

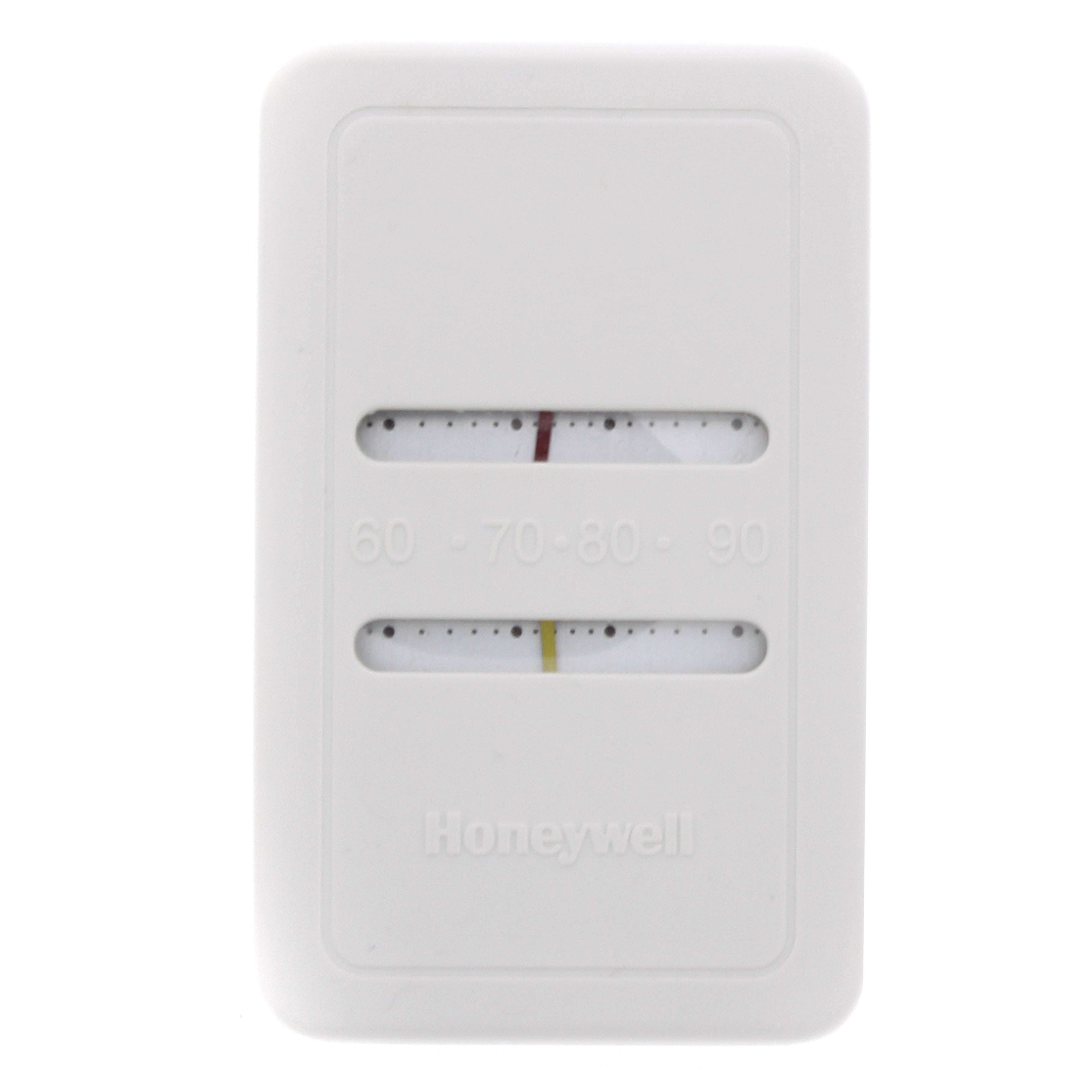

Includes: Cover, Setpoint, and Thermometer is Visible
