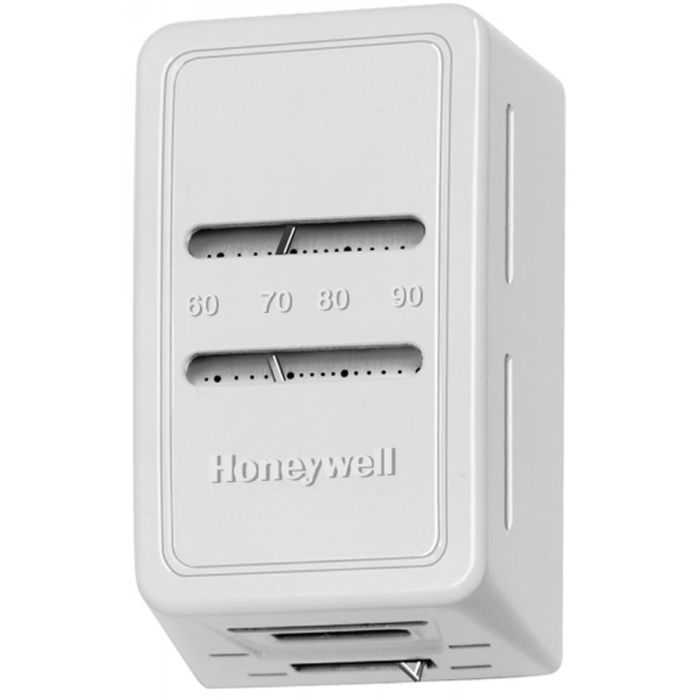

Honeywell TP9600A1007/U Pneumatic Thermostat Direct Acting Wall

Product Description

The Honeywell TP9600A1007/U is a pneumatic thermostat designed for direct acting control in wall-mounted applications. This unit operates within a temperature range of fifty-nine degrees Fahrenheit to ninety degrees Fahrenheit, making it suitable for various HVAC systems. The thermostat is easy to install and features a high-capacity design for effective temperature regulation.

• Temperature Set Point Range: Fifty-nine to ninety degrees Fahrenheit.
• Bimetal sensing element provides accurate measurements.
• Plug-in air connections simplify installation.

Product Highlights

This pneumatic thermostat is built for durability and reliability, ensuring consistent performance in commercial settings.

Product Information

Standard Information

• Brand: Honeywell
• Part Number: TP9600A1007/U

Technical Specifications

• Application: Wall Thermostat
• Temperature Range: Fifty-nine degrees Fahrenheit to ninety degrees Fahrenheit
• Maximum Safe Operating Pressure: Twenty-five psi
• Airflow Usage: Zero point zero eleven scfm
• Dimensions: Three and one-fourth inches high x two inches wide x one and five-eighths inches deep
• Mounting: Vertical wall mount
• Sensor Element: Bimetal
• Throttling Range: Two to ten degrees Fahrenheit
• Number of Pipes: Two
• Connection Size: Five thirty-seconds inches
