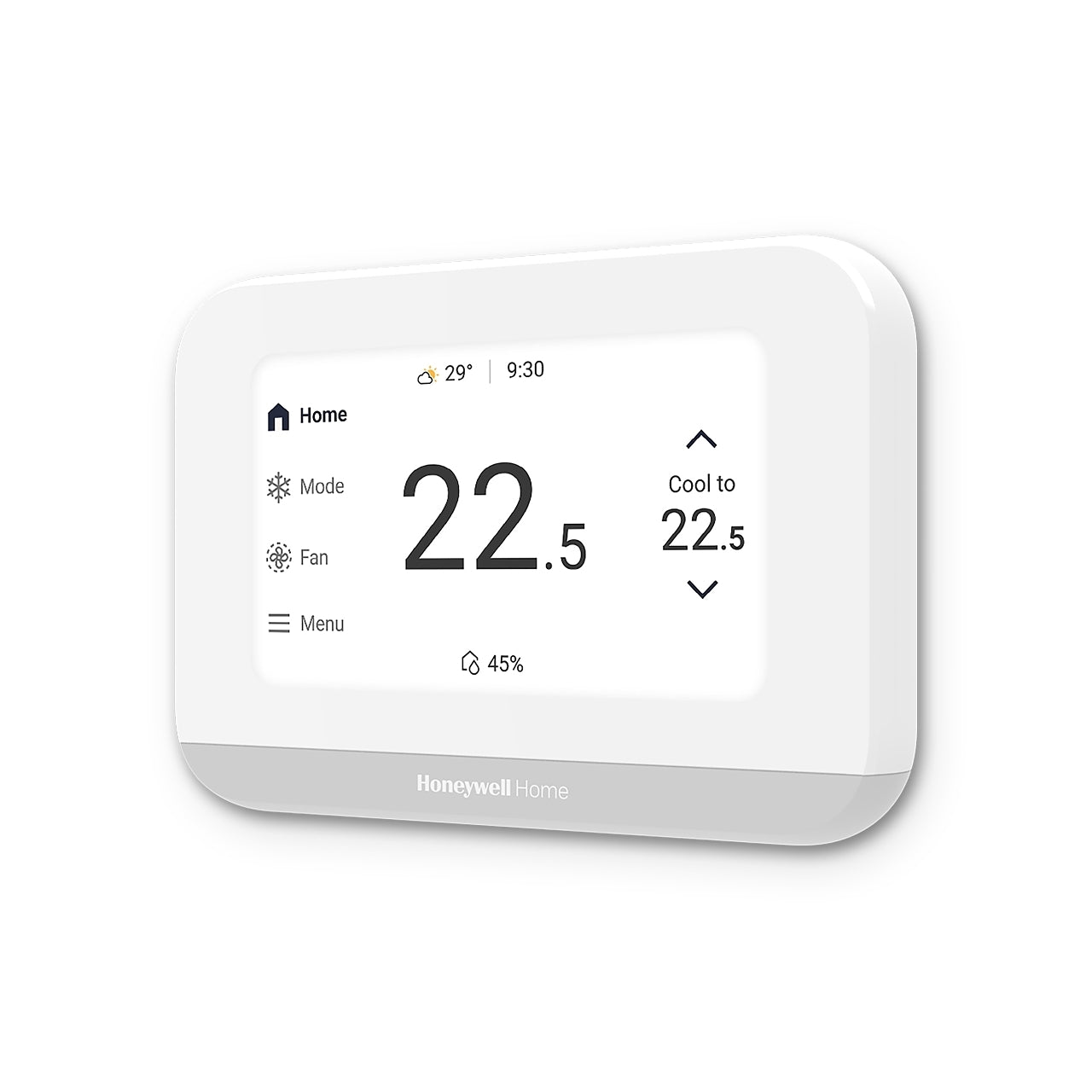

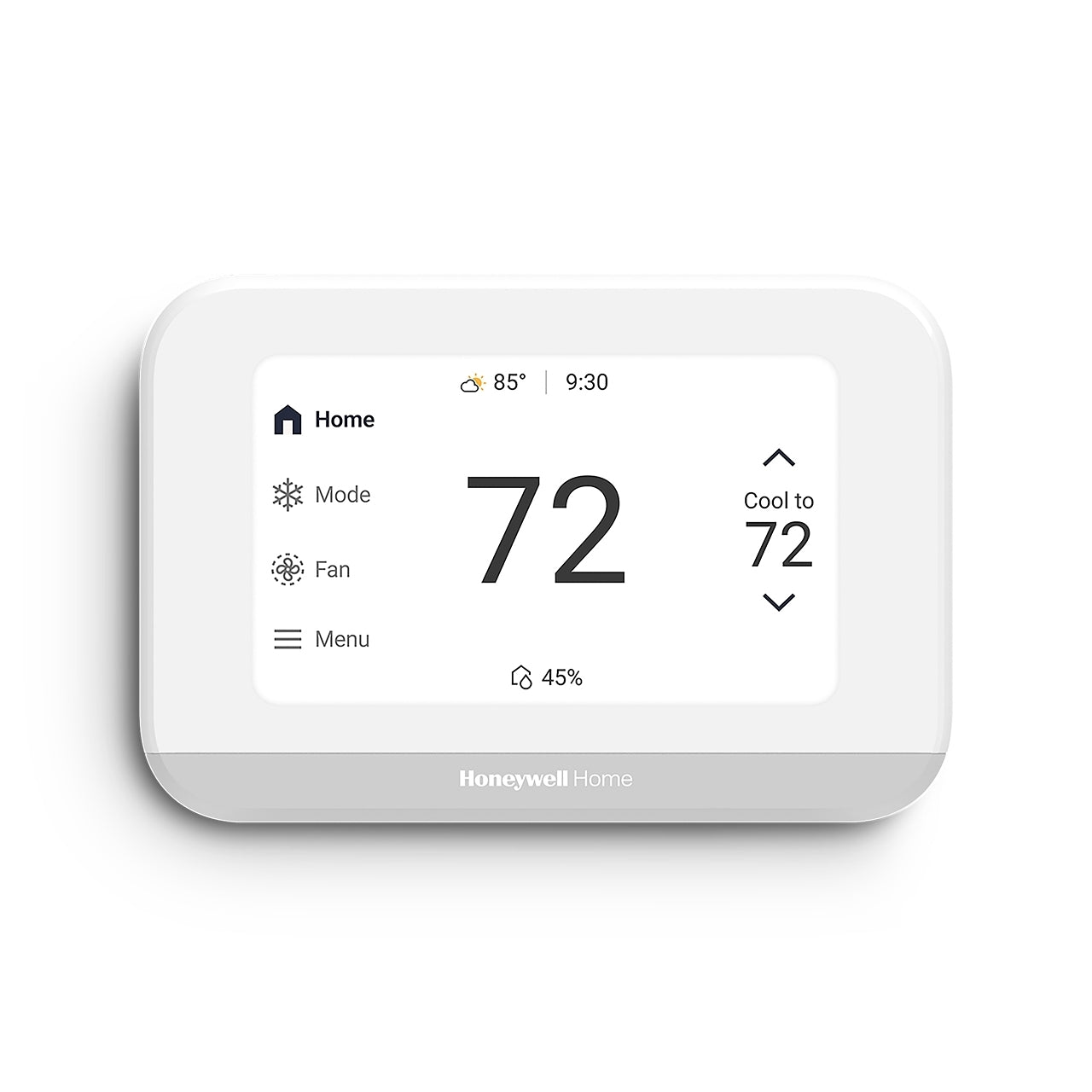

Honeywell THX900W1 ElitePRO S900 Smart Thermostat 4.3 inches

Product Description

The HONEYWELL THX900W1 ElitePRO S900 Smart Thermostat delivers a modern design with a 4.3" customizable touchscreen and indoor humidity monitoring. Combined with Pro-IQ services, it enhances business operations. It is compatible with residential and light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC, and IAQ control.

• Works with residential and commercial systems up to 3H/2C heat pump or 2H/2C conventional
• Monitor indoor humidity
• WiFi / Smart home connectivity enables remote control, programming and monitoring

Product Highlights

The ElitePRO S900 Smart Thermostat is sleek, professional-grade WiFi thermostat designed for residential and light commercial HVAC systems. It has advanced connectivity, indoor humidity monitoring, and a customizable touchscreen display.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: THX900W1

Technical Specifications

• Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
• Stages: 3H/2C heat pump or 2H/2C conventional
• Smart Home Integration: Yes
• Display Size: 4.3 sq. in
• Touchscreen: Yes
• Display Language: Display selectable for English, French, or Spanish
• Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
• Program Type: Time-Based or Smart Away, Residential or Light Commercial
• Energy Star Certified: Yes
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Hardwired, C-Wire required
• Power Source: Hardwired, C-Wire required
• Frequency: 60 Hz
• Includes: ElitePRO Series Thermostat
• WiFi: Yes
• Ambient Operating Temperature (Max): 102 F, 38.9 C
• Ambient Operating Temperature (Min): 37 F, 2.8 C
• Operating Relative Humidity (Max): 90 % RH
• Operating Relative Humidity (Min): 5 % RH
• Auto Changeover: Yes
• Humidity Set point (Max): 90% RH
• Humidity Set point (Min): 0% RH
• Set point Temperature (Max): Heat: 90 F, Cool: 99 F, Heat: 32 C, Cool: 37 C
• Set point Temperature (Min): Heat: 40 F, Cool: 50 F, Heat: 4.5 C, Cool: 10 C
• Shipping and Storage Temperature (Max): 120 F, 49 C
• Shipping and Storage Temperature (Min): -20 F, -29 C
• Mounting Location: J-Box, Horizontal Mount to wall
• Product Height: 3.54 in, 90 mm
• Product Width: 5.25 in, 133 mm
• Product Depth: 0.96 in , 24 mm
• Color: White
