Product Description

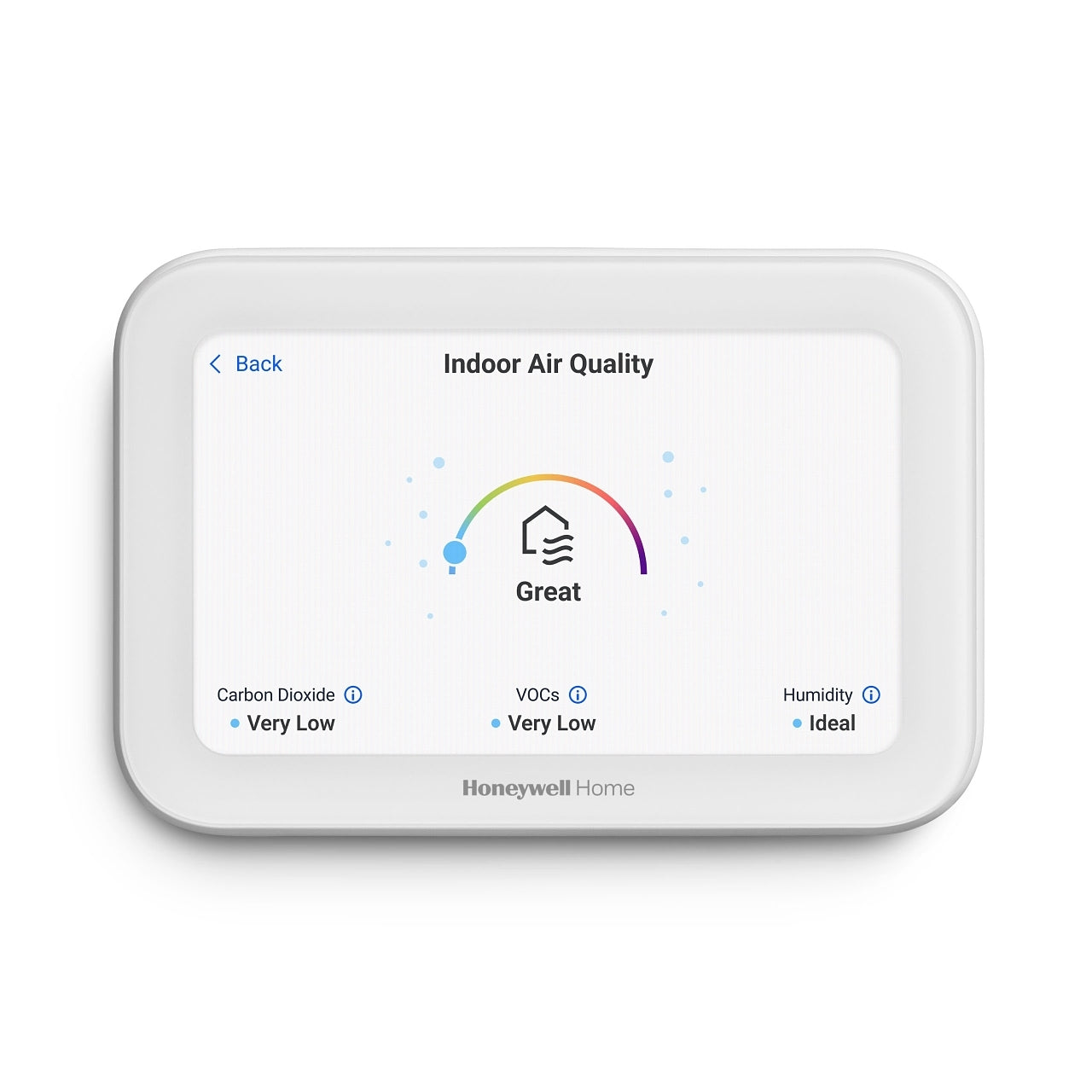

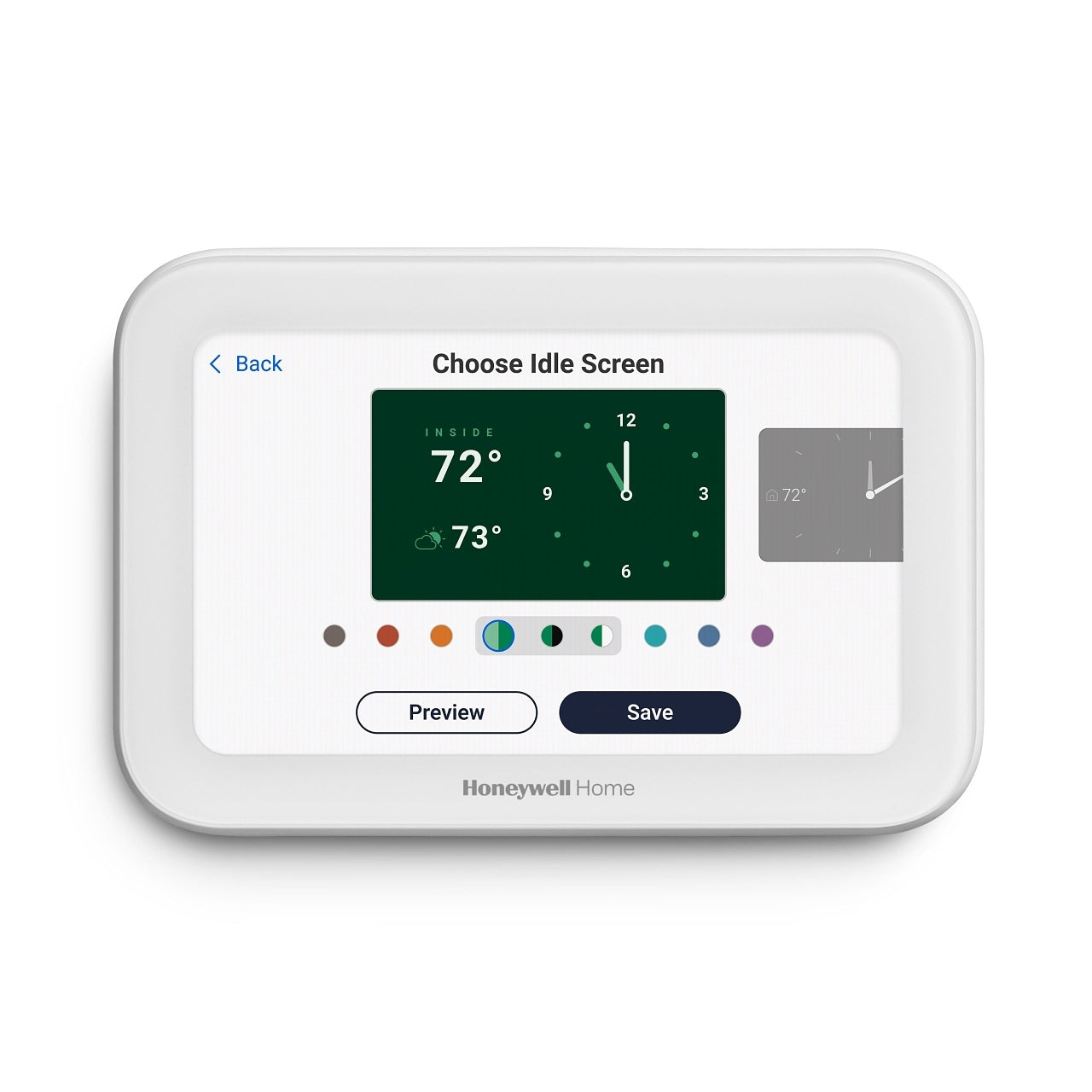

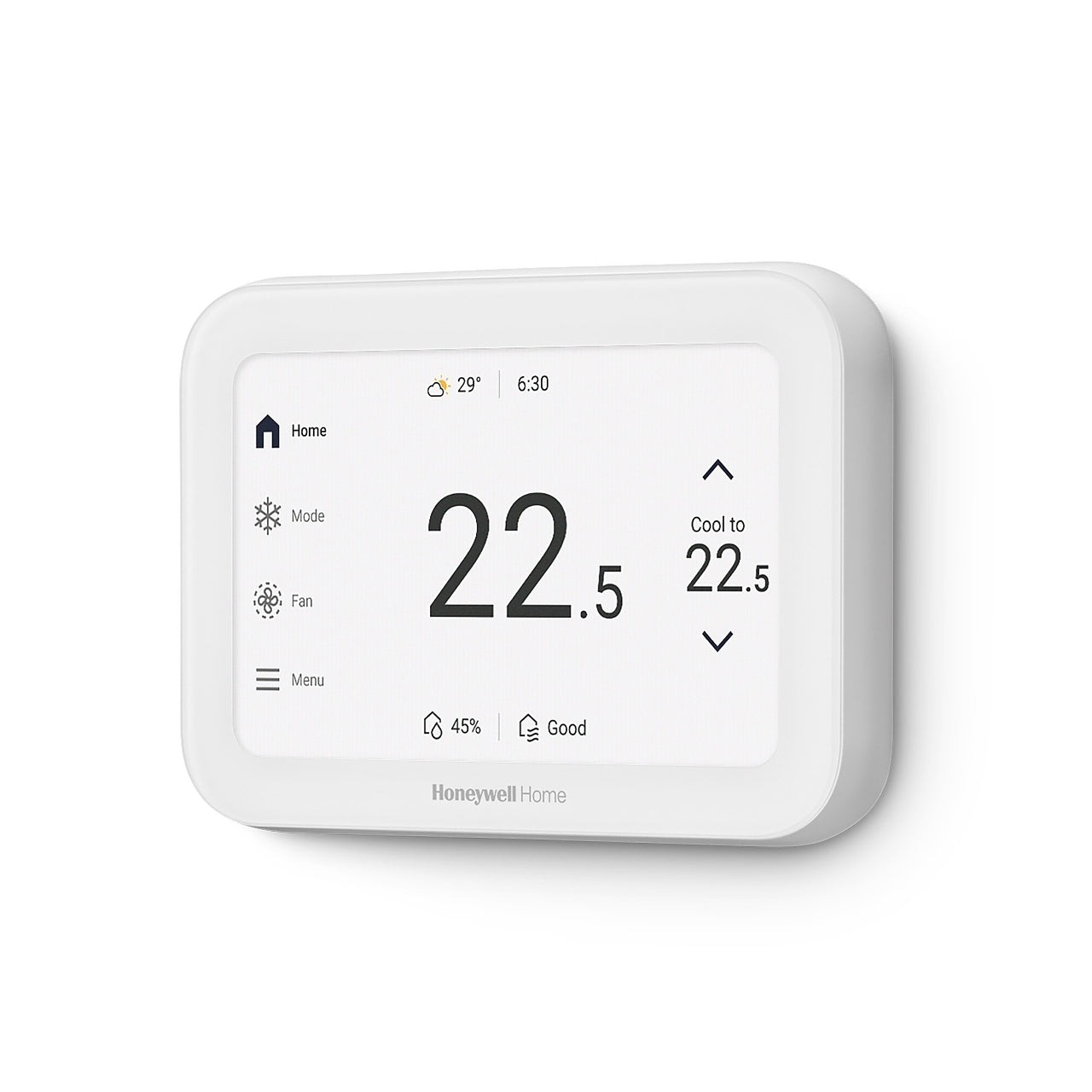

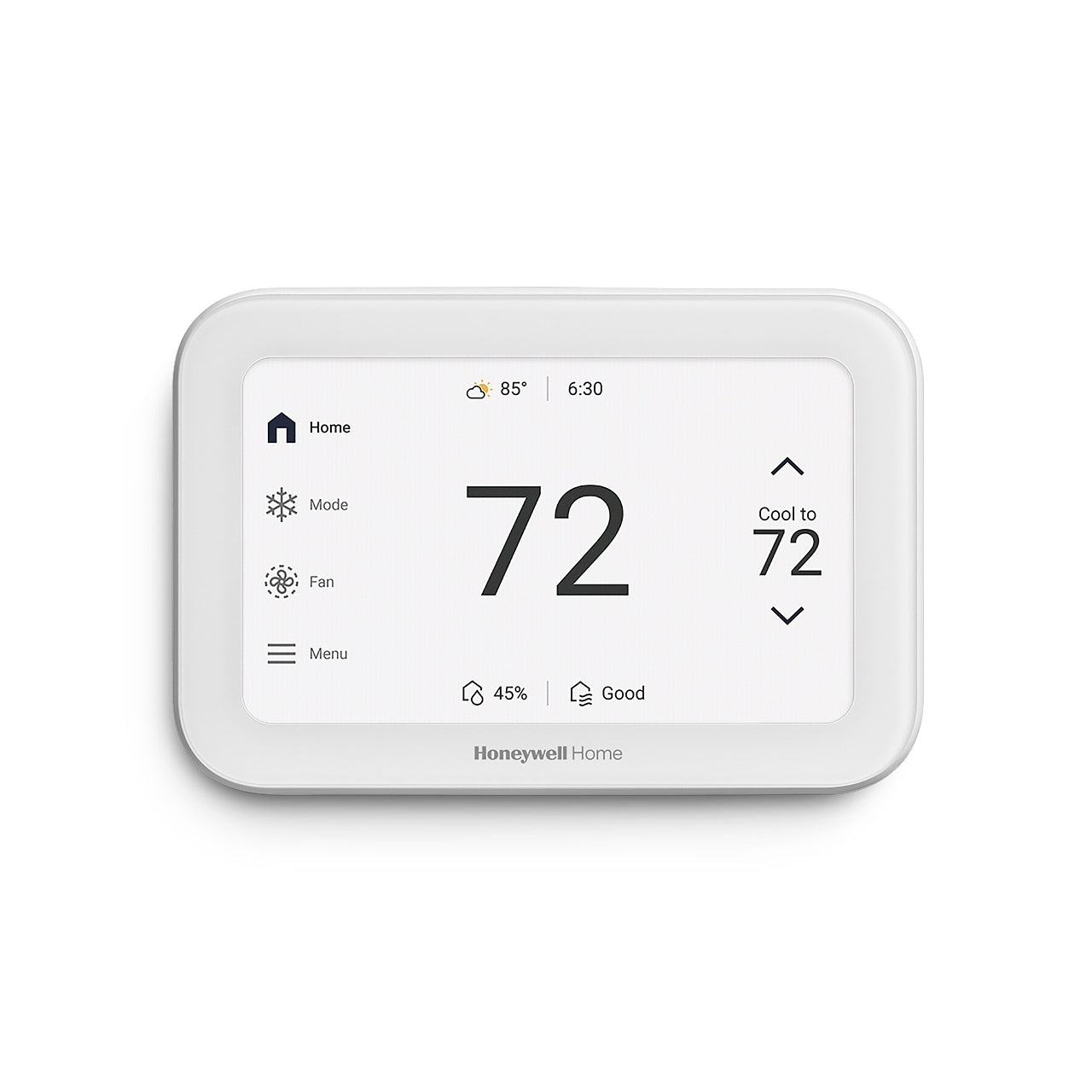

The HONEYWELL THX1100W3 ElitePRO S1100 Smart Thermostat features a 5" customizable touchscreen and advanced indoor air quality (IAQ) control. Compatible with residential and light commercial applications, it supports up to 4 Heat/2 Cool heat pump or 3 Heat/3 Cool conventional systems. Redlink 3.0 technology connects wirelessly with Room Sensors, EIM, and Outdoor Sensors.
- Offers time-based or smart away programming for energy efficiency.
- Includes an onboard radar sensor and allows air quality monitoring.
- Features a display selectable for English, French, or Spanish.
Product Highlights
This smart thermostat delivers modern design and advanced IAQ control. It is compatible with dual fuel, fan-coil, PTAC, and radiant systems.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: THX1100W3
Technical Specifications
-
Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
-
Product Features: Time-Based or Smart Away programming for energy efficency, Includes Onboard Radar Sensor, Allows Air quality monotoring
-
Stages: Up to 4 Heat/2 Cool Heat Pump systems, Up to 3 Heat/3 Cool for conventional systems
-
Smart Home Integration: Yes
-
Display Size: 5 sq. in
-
Touchscreen: Yes
-
Display Language: Display selectable for English, French, or Spanish
-
Display Time Format: 12 Hour (AM/PM)
-
Displayed Information: Indoor Humidity, Outdoor Temperature, Time, Current Setting, Current Temperature, Thermostat Controls, Down Arrow, Up Arrow
-
Modes of Operation: Heat, Off, Cool, Auto, Emergency heat
-
Program Type: Time-Based or Smart Away, Residential or Commercial
-
Energy Star Certified: Yes
-
Heat-Cool Changeover: Auto or Manual
-
Power Supply: Hardwired
-
Power Source: Hardwired
-

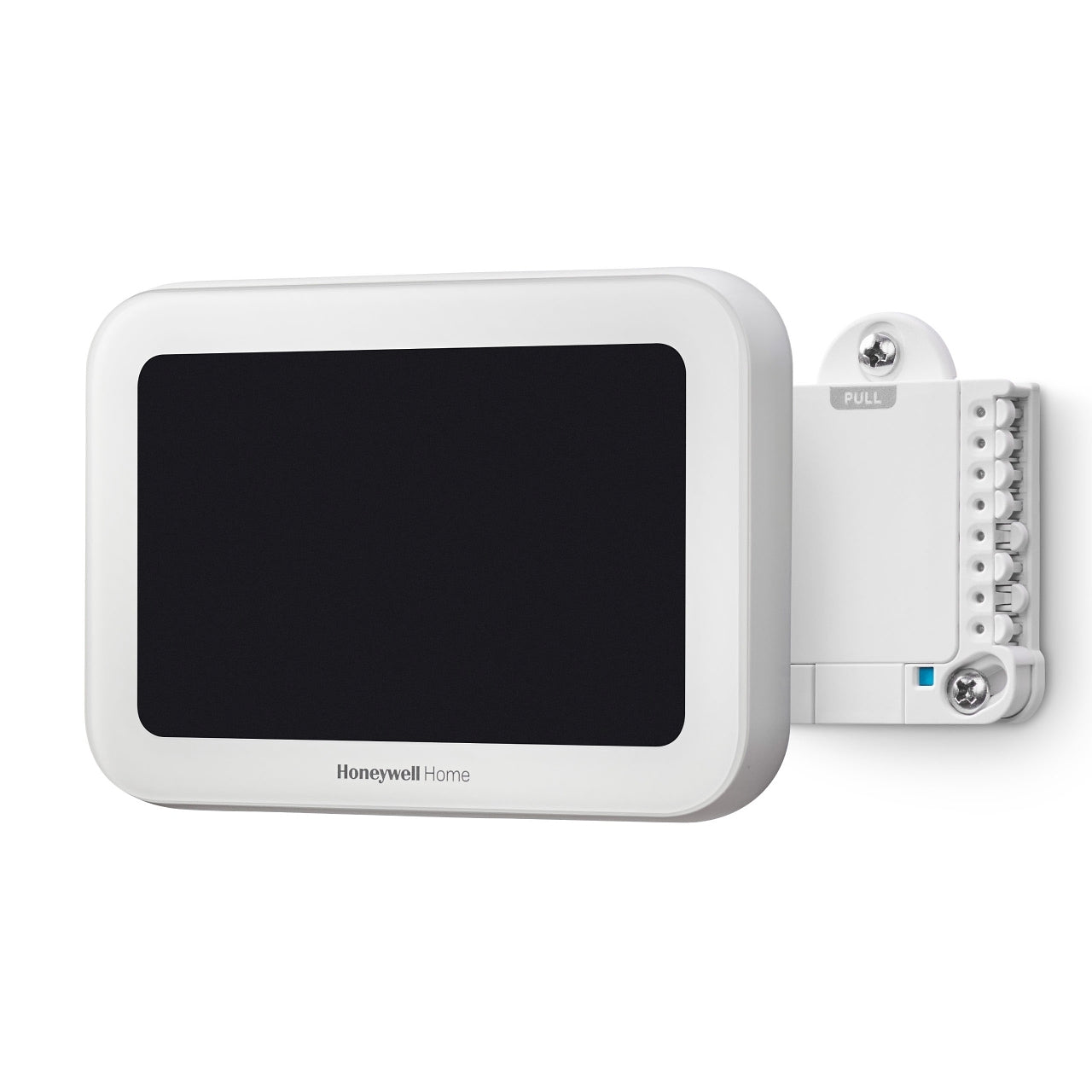

Includes: ElitePRO S1100 Series Thermostat in White, UWP® Wall Plate, Decorative Cover Plate with J-Box Adapter, Mounting hardware, Literature
-
For Use With: THP9045A C-wire adapter, C7189R3010-2 room sensor
-
Bluetooth Specifications: BLE 2.4 GHz
-
WiFi: Yes
-
WiFi Specifications: 2.4 & 5GHz
-
RedLINK: Yes, 3.0
-
Ambient Operating Temperature (Max): 102 °F, 39 °C
-
Ambient Operating Temperature (Min): 37 °F, 3 °C
-
Operating Relative Humidity (Max): 90 % RH
-
Operating Relative Humidity (Min): 5 % RH
-
Compatible Sensor: Room Temperature Sensor
-
Auto Changeover: Yes
-
Humidity Set point (Max): 90 % RH
-
Humidity Set point (Min): 0 % RH
-
Mounting Type: Horizontal Mount, Junction Box, Wall surface, UWP Mounting System
-
Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
-
Power Supply Frequency: 60 Hz
-
Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
-
Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10°C
-
Shipping and Storage Temperature (Max): 120 °F, 49 °C
-
Shipping and Storage Temperature (Min): -20 °F, -29 °C
-
Mounting Location: Wall, Junction Box
-
Product Height: 3.54 in, 90 mm
-
Product Width: 5.25 in, 133 mm
-
Product Weight: 0.91 lb
-
Product Depth: 0.96 in, 24 mm
-
Features: Digital Display, ENERGY STAR Certified, Utility Rewards, Air Quality Monitoring, WiFi Connection, Touchscreen Display
-
Connectivity: Bluetooth/Wi-Fi
-
Dimensions: 5.24 in W x 3.54 in H x 0.96 in D
-
Series: S1100
-
Type: Smart Thermostat
-
System Compatibility: Up to 4H/2C heat pump or 3H/3C conventional systems
-
IAQ Management: Humidity, ventilation, VOC, and estimated CO₂ control
-
Outputs: 2 Configurable outputs for IAQ devices or additional heating/cooling stages
-
Display: 5″ touchscreen
-
Compatibility: Equipment Interface Module (EIM)
-
Supported Systems: Dual fuel, fan-coil, PTAC, and radiant systems
-
Certification: ENERGY STAR® Certified
