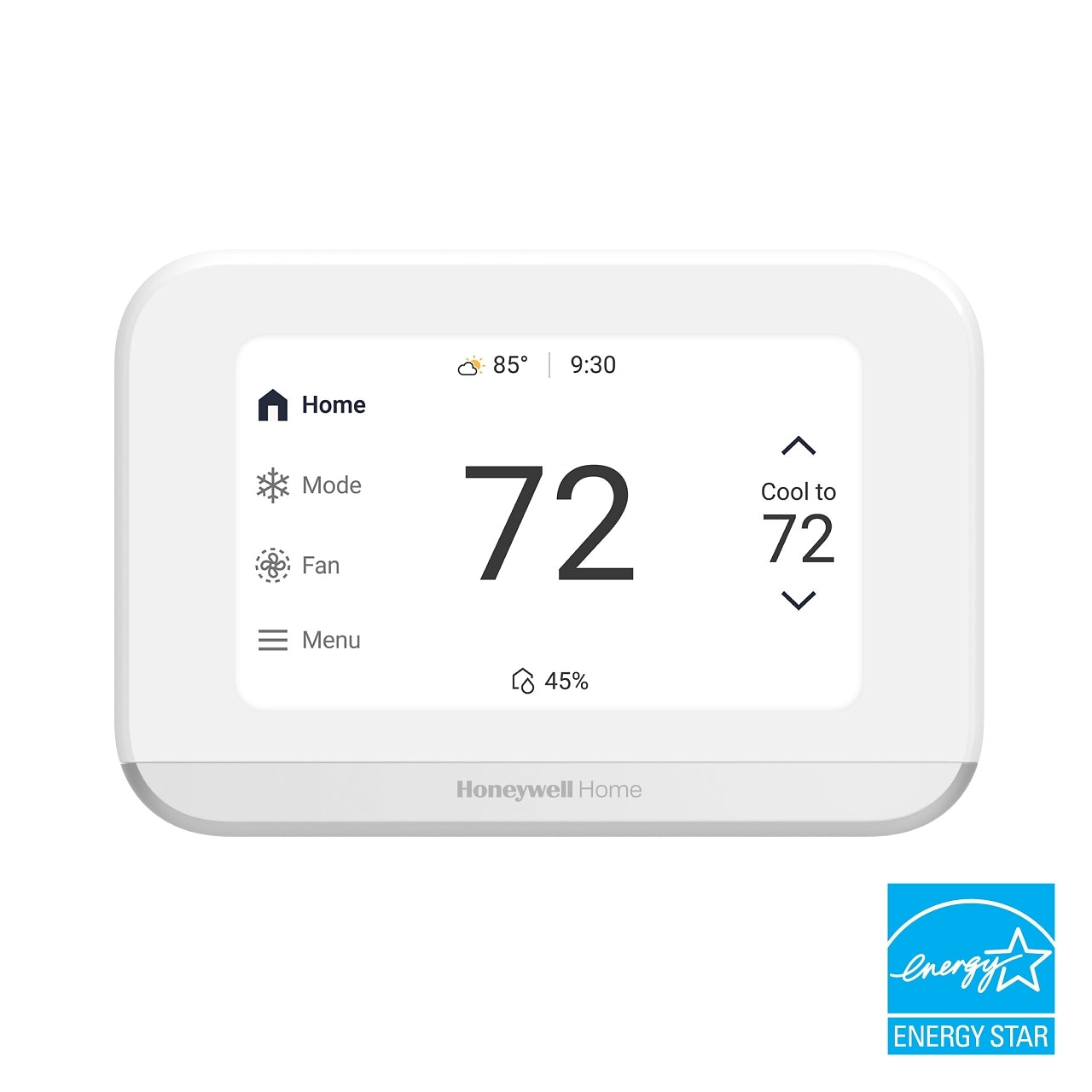

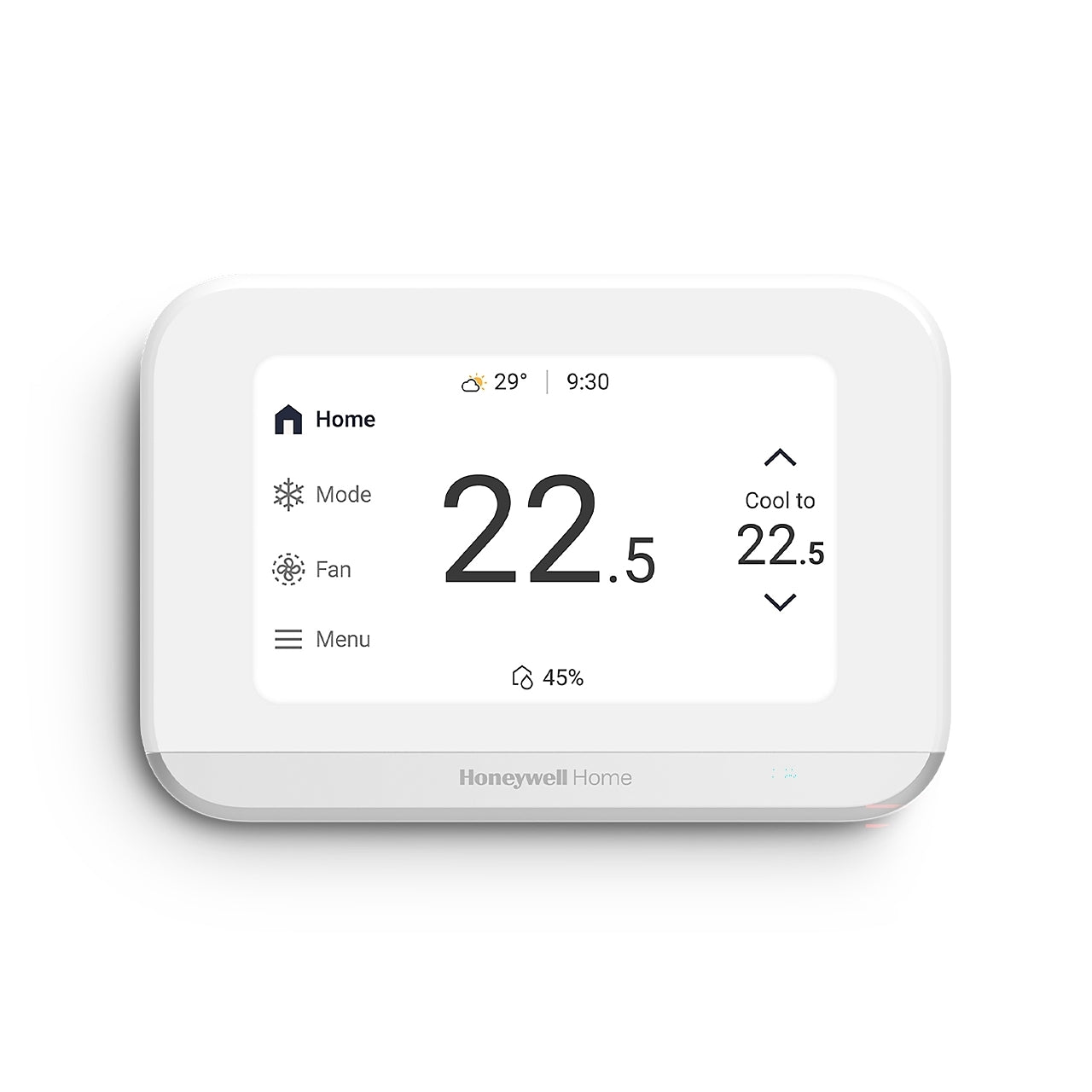

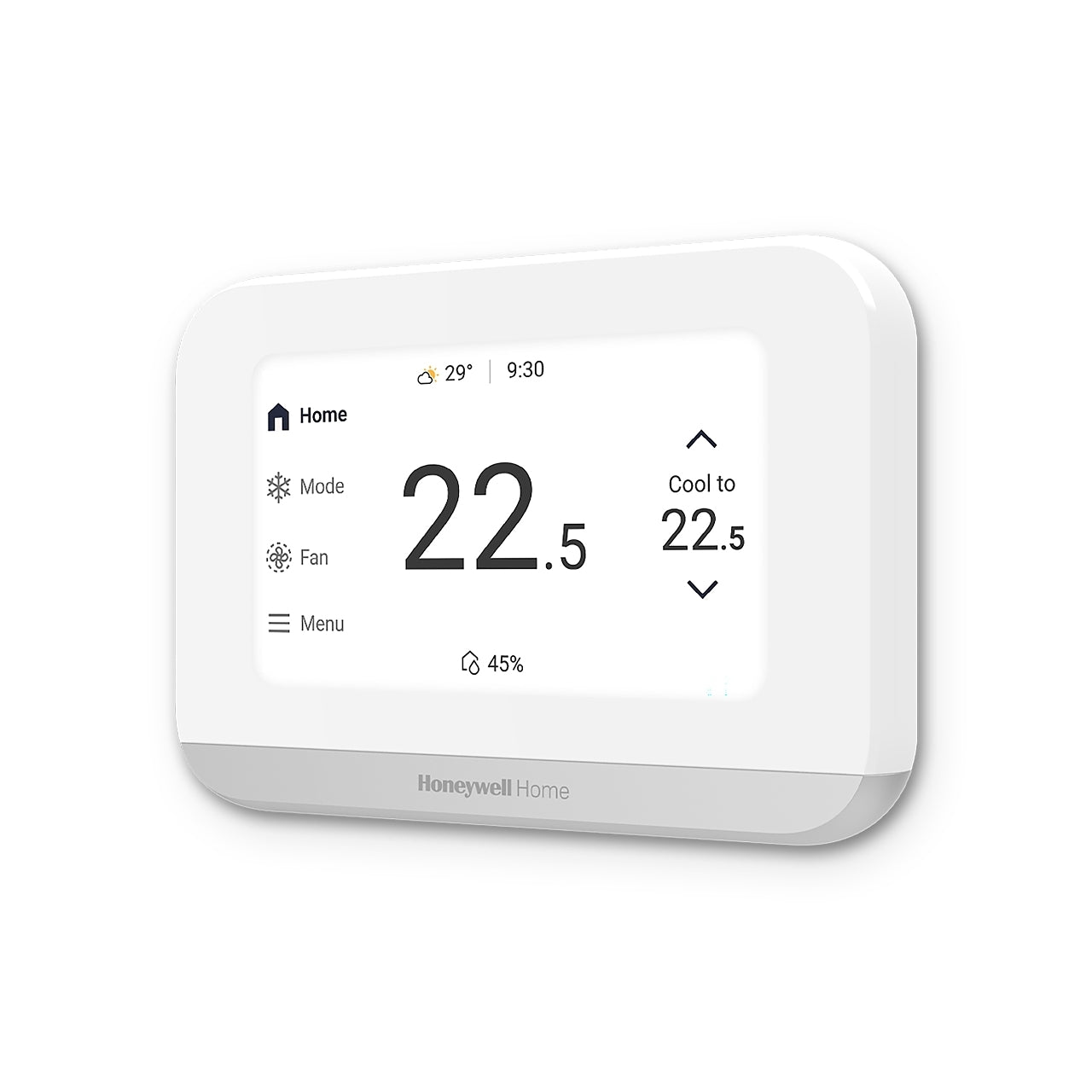

Honeywell THX1000W1/U S1000 Elite Pro 3H/2C Smart Programmable Thermostat

Product Description

The HONEYWELL THX1000W1/U S1000 Elite Pro 3H/2C Smart Programmable Thermostat features a 4.3" customizable touchscreen and offers indoor humidifier, dehumidifier, or ventilator control. It supports up to 4 Heat/2 Cool Heat Pump systems, and up to 2 Heat/3 Cool for conventional systems. The thermostat is also compatible with Pro-IQ services.

• Features Time-Based or Smart Away programming for energy efficiency.
• Includes Onboard Radar Sensor and allows air quality monitoring.
• Offers smart home integration and is Energy Star certified.

Product Highlights

The ElitePRO S1000 smart thermostat combines modern design with smart features for residential or light commercial applications.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: THX1000W1/U
• Country of Origin: Import

Technical Specifications

• Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
• Product Features: Time-Based or Smart Away programming for energy efficency, Includes Onboard Radar Sensor, Allows Air quality monotoring
• Stages: Up to 4 Heat/2 Cool Heat Pump systems, Up to 2 Heat/3 Cool for conventional systems
• Smart Home Integration: Yes
• Display Size: 4.3 sq. in
• Touchscreen: Yes
• Display Language: Display selectable for English, French, or Spanish
• Display Time Format: 12 Hour (AM/PM)
• Displayed Information: Indoor Humidity, Outdoor Temperature, Time, Current Setting, Current Temperature, Thermostat Controls, Down Button, Up Button
• Modes of Operation: Heat, Off, Cool, Auto, Emergency heat
• Energy Star Certified: Yes
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Hardwired
• Power Source: Hardwired
• Includes: ElitePRO® S1000 Series Thermostat, UWP Wall Plate, Decorative Cover Plate with J-Box Adapter, Screws and Anchors
• For Use With: THP9045A C-wire adapter, C7189R3010-2 room sensor
• Bluetooth Specifications: BLE 2.4 GHz
• WiFi: Yes
• WiFi Specifications: 2.4 & 5GHz
• RedLINK: Yes, 3.0
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 37 °F, 3 °C
• Operating Relative Humidity (Max): 90 % RH
• Operating Relative Humidity (Min): 5 % RH
• Compatible Sensor: C7189R3010-2
• Auto Changeover: Yes
• Humidity Set point (Max): 90 % RH
• Humidity Set point (Min): 0 % RH
• Mounting Type: Horizontal Mount, Junction Box, Wall surface, UWP Mounting System
• Number of Fan Speeds: Fan speeds for some systems
• Power Supply Frequency: 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
• Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10°C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall, Junction Box
• Product Height: 3.54 in, 90 mm
• Product Width: 5.25 in, 133 mm
• Product Depth: 0.96 in, 24 mm
• Features: Digital Display, ENERGY STAR Certified, Touchscreen Display, Utility Rewards, WiFi Connection, Air Quality Monitoring
• Display: 4.3 in
• Type: Touchscreen
• Brand Name: Honeywell Home
• Manufacturer Part Number: THX1000W1/U
• Product Line: ElitePro
• Product Series: S1000
