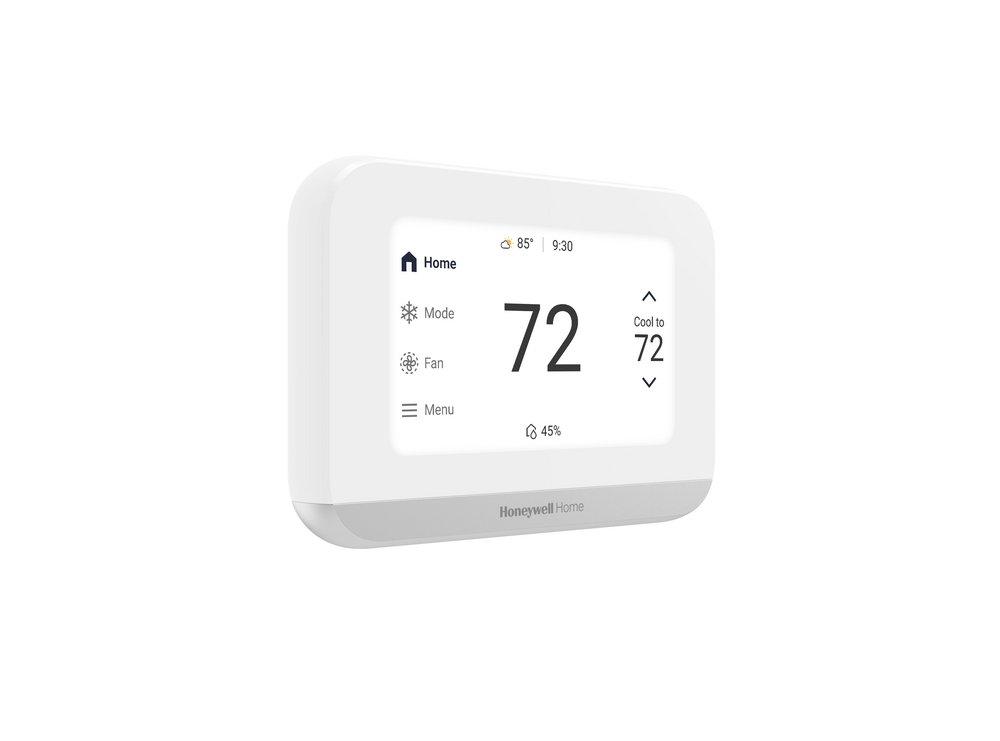

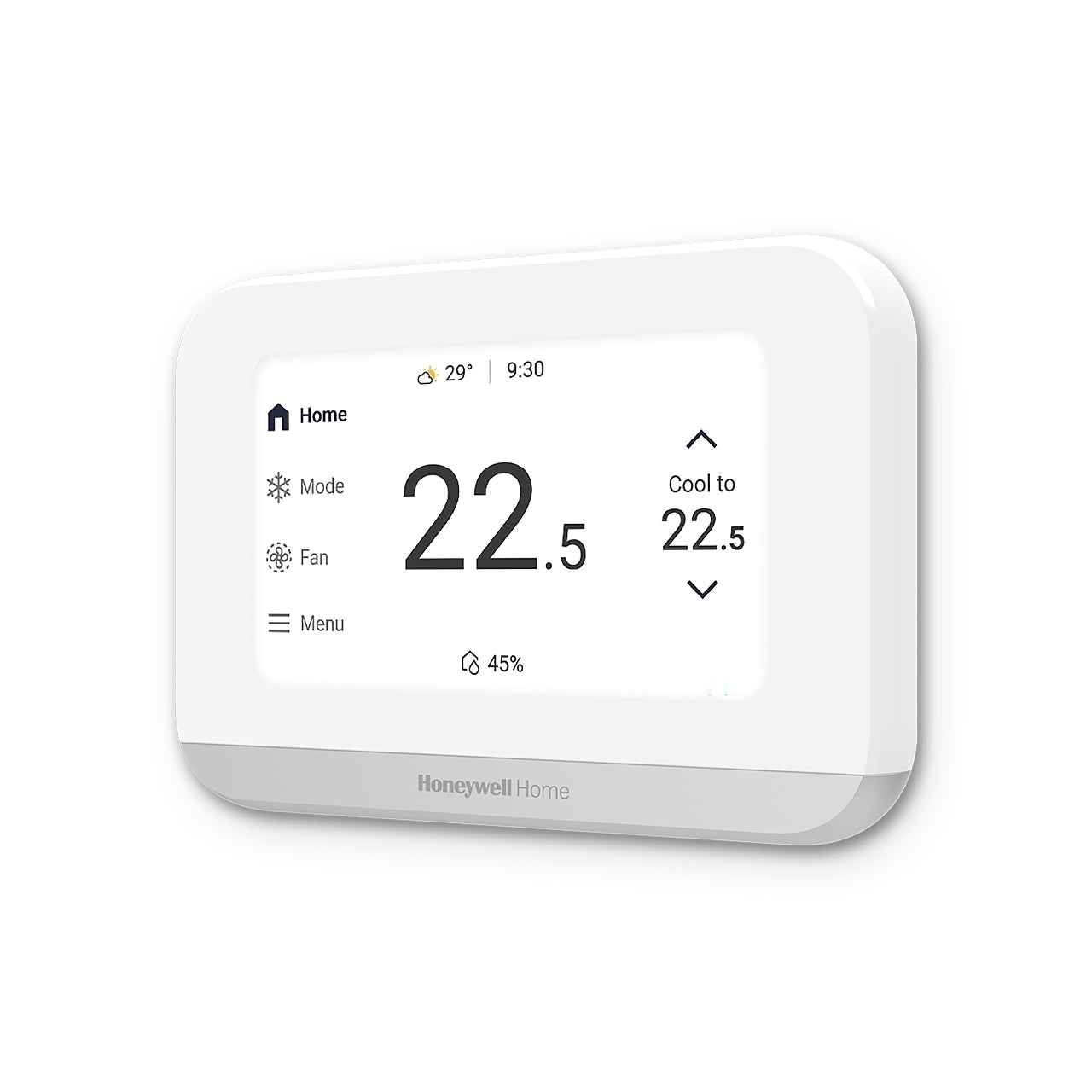

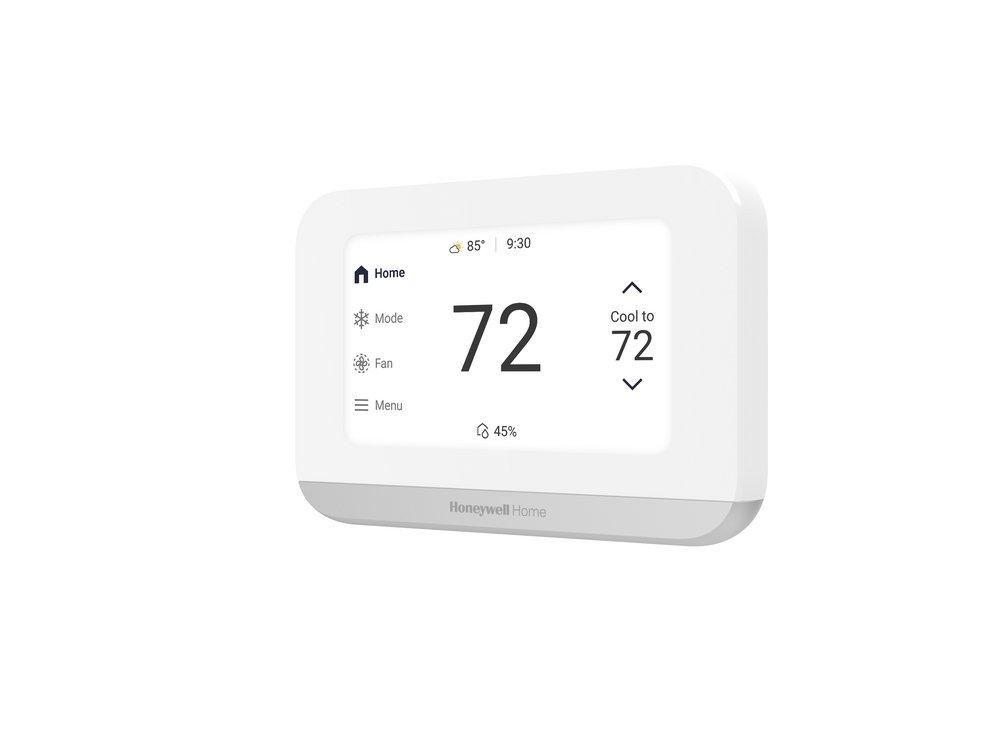

Honeywell THX1000W1 ElitePRO S1000 Smart Thermostat 4.3 inches

Product Description

The HONEYWELL THX1000W1 ElitePRO S1000 Smart Thermostat features a modern design and a 4.3" customizable touchscreen. It offers indoor humidifier, dehumidifier, and ventilator control. Compatible with dual fuel, fan-coil, PTAC, and radiant systems. Advanced occupancy detection helps save energy. Redlink 3.0 technology connects wirelessly with Room Sensors, EIM, and Outdoor Sensors.

• Features a 4.3" customizable touchscreen.
• Offers indoor humidifier, dehumidifier, or ventilator control.
• Connects wirelessly with room and outdoor sensors using Redlink 3.0 technology.

Product Highlights

The ElitePRO S1000 is ENERGY STAR certified and offers advanced occupancy detection to save energy. It supports up to 4 Heat/2 Cool Heat Pump systems and 2 Heat/3 Cool conventional systems.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: THX1000W1
• Country of Origin: Country of origin is subject to change.

Technical Specifications

• Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
• Product Features: Time-Based or Smart Away programming for energy efficency, Includes Onboard Radar Sensor, Allows Air quality monotoring
• Stages: Up to 4 Heat/2 Cool Heat Pump systems, Up to 2 Heat/3 Cool for conventional systems
• Smart Home Integration: Yes
• Display Size: 4.3 sq. in
• Touchscreen: Yes
• Display Language: Display selectable for English, French, or Spanish
• Display Time Format: 12 Hour (AM/PM)
• Displayed Information: Indoor Humidity, Outdoor Temperature, Time, Current Setting, Current Temperature, Thermostat Controls, Down Button, Up Button
• Modes of Operation: Heat, Off, Cool, Auto, Emergency heat
• Energy Star Certified: Yes
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Hardwired
• Power Source: Hardwired
• Includes: ElitePRO® S1000 Series Thermostat, UWP Wall Plate, Decorative Cover Plate with J-Box Adapter, Screws and Anchors
• For Use With: THP9045A C-wire adapter, C7189R3010-2 room sensor
• Bluetooth Specifications: BLE 2.4 GHz
• WiFi: Yes
• WiFi Specifications: 2.4 & 5GHz
• RedLINK: Yes, 3.0
• Ambient Operating Temperature (Max): 102 °F, 39 °C
• Ambient Operating Temperature (Min): 37 °F, 3 °C
• Operating Relative Humidity (Max): 90 % RH
• Operating Relative Humidity (Min): 5 % RH
• Compatible Sensor: C7189R3010-2
• Auto Changeover: Yes
• Humidity Set point (Max): 90 % RH
• Humidity Set point (Min): 0 % RH
• Mounting Type: Horizontal Mount, Junction Box, Wall surface, UWP Mounting System
• Number of Fan Speeds: Fan speeds for some systems
• Power Supply Frequency: 60 Hz
• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
• Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10°C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Mounting Location: Wall, Junction Box
• Product Height: 3.54 in, 90 mm
• Product Width: 5.25 in, 133 mm
• Product Weight: 0.91 lb
• Product Depth: 0.96 in, 24 mm
• Features: Digital Display, ENERGY STAR Certified, Touchscreen Display, Utility Rewards, WiFi Connection, Air Quality Monitoring
• ADI Part Number: QC-THX1000W1U
• Brand Name: Honeywell Home
• Manufacturer Part Number: THX1000W1/U
• Product Line: ElitePro
• Product Series: S1000
• Standby Power (W): 2.19
• Thermostat Brand Name: Honeywell Home
• Thermostat Model Name: ElitePRO S1000 Smart Thermostat
• Thermostat Model Number: THX1000W1
• Additional Thermostat Model Numbers: THX1000B2
• ENERGY STAR Unique ID: 4481893
• Collection: ElitePRO™
• Color Finish Category: Whites
• Color Finish Name: White
• Depth: 24/25 in
• Display Type: Digital
• Energy Star Compliant: Yes
• Height: 3-27/50 in
• Humidity Sensing: Yes
• Programmability: Programmable
• Smart Home Compatibility: Google Home, Amazon Alexa, Apple HomeKit, Matter, Redlink
• Smart Home Enabled: Yes
• Volts: 24V
• Wireless Communication: Bluetooth/Wi-Fi
