Product Description

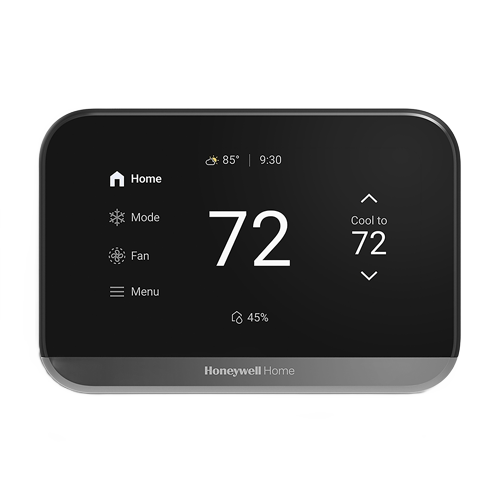

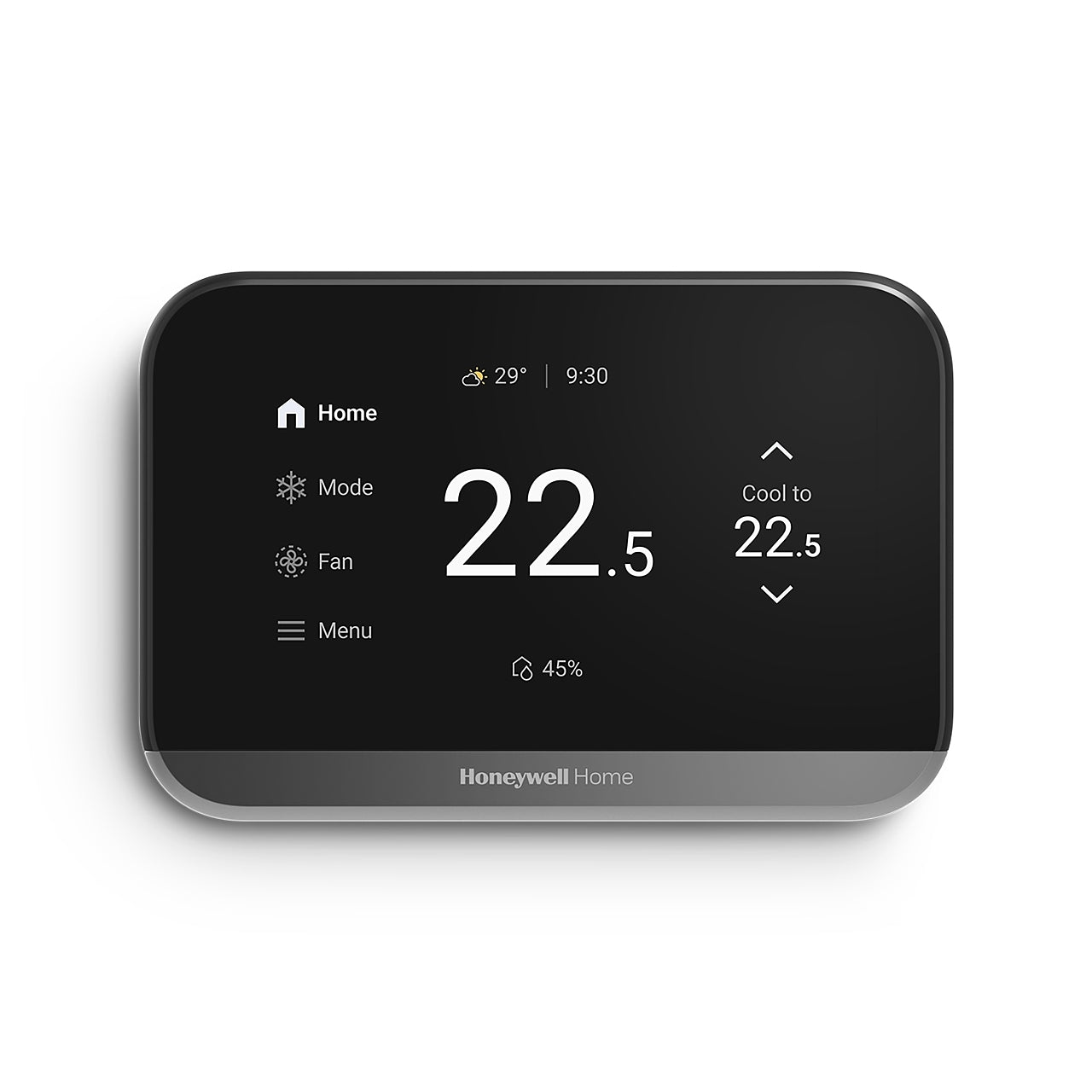

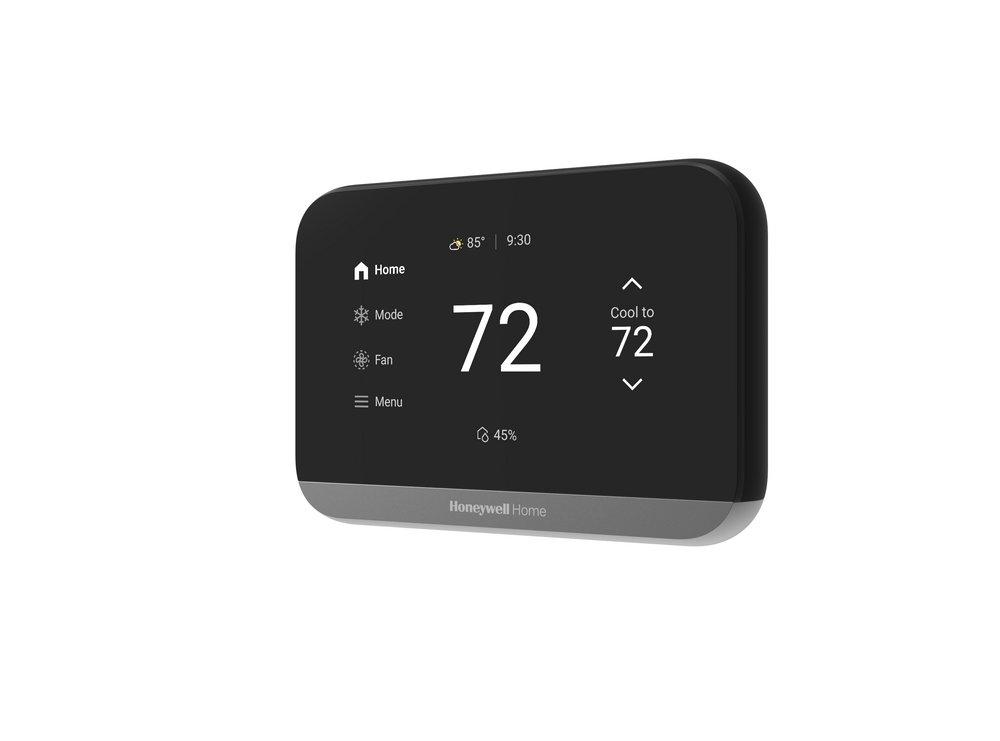

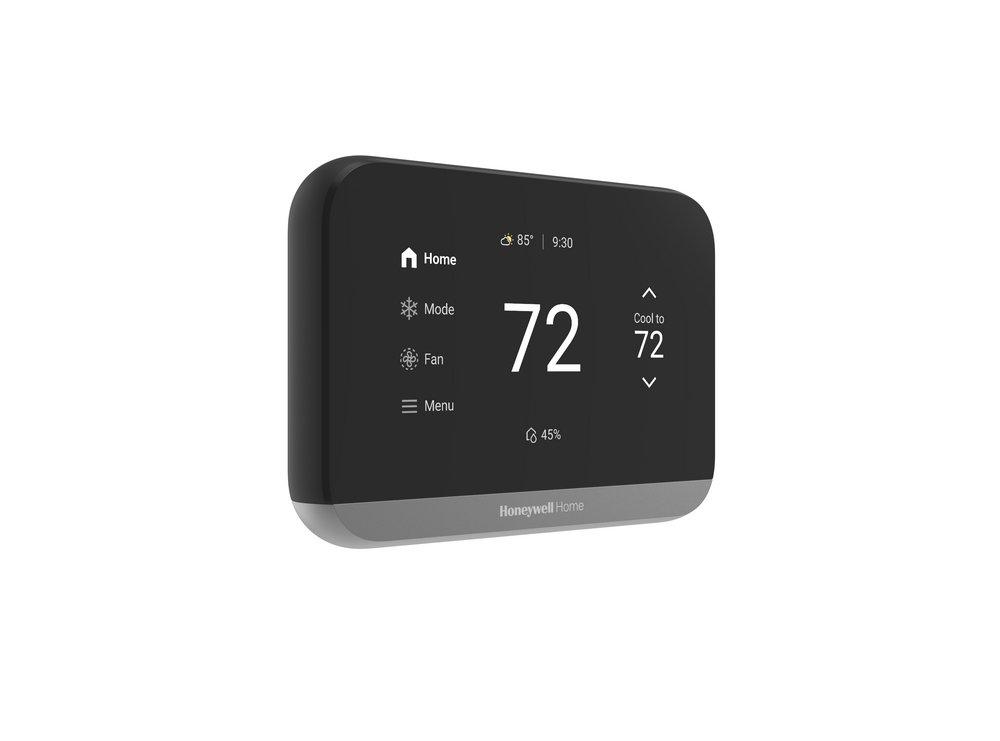

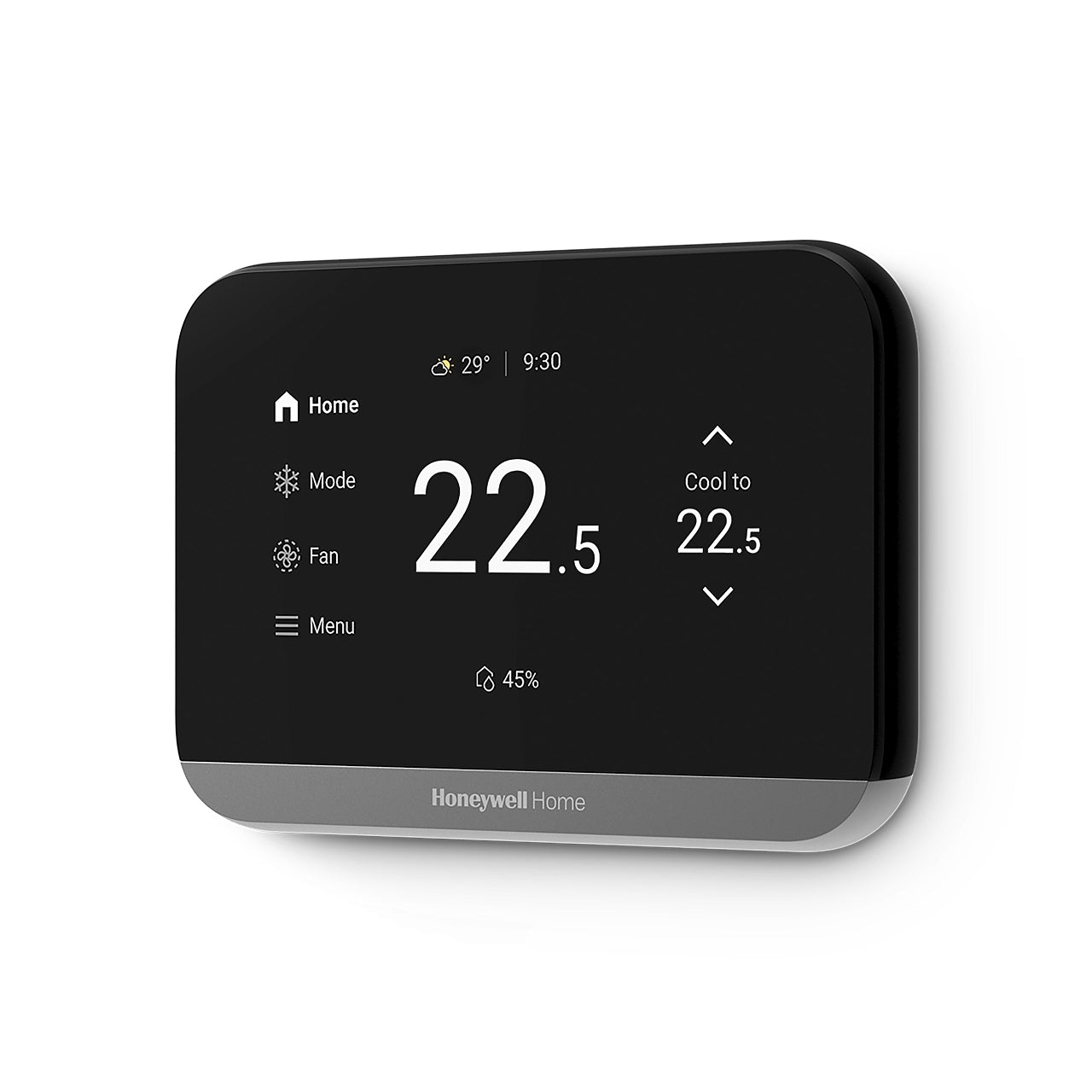

The HONEYWELL THX1000B2 ElitePRO S1000 Smart Thermostat delivers modern design with a 4.3" customizable touchscreen. It features indoor humidifier, dehumidifier, or ventilator control. The thermostat supports up to 4 Heat/2 Cool Heat Pump systems, and up to 2 Heat/3 Cool for conventional systems. It also allows air quality monitoring.
- Features a 4.3" customizable touchscreen.
- Offers indoor humidifier, dehumidifier, or ventilator control.
- Allows Time-Based or Smart Away programming for energy efficiency.
Product Highlights
This smart thermostat is ENERGY STAR certified and offers smart home integration with WiFi and RedLINK connectivity.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: THX1000B2
-
Country of Origin: Mexico
Technical Specifications
-
Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
-
Product Features: Time-Based or Smart Away programming for energy efficency, Includes Onboard Radar Sensor, Allows Air quality monotoring
-
Stages: Up to 4 Heat/2 Cool Heat Pump systems, Up to 2 Heat/3 Cool for conventional systems
-
Smart Home Integration: Yes
-
Display Size: 4.3 sq. in
-
Touchscreen: Yes
-
Display Language: Display selectable for English, French, or Spanish
-
Display Time Format: 12 Hour (AM/PM)
-
Displayed Information: Indoor Humidity, Outdoor Temperature, Time, Current Setting, Current Temperature, Thermostat Controls, Down Button, Up Button
-
Modes of Operation: Heat, Off, Cool, Auto, Emergency heat
-
Energy Star Certified: Yes
-
Heat-Cool Changeover: Auto or Manual
-
Power Supply: Hardwired
-
Power Source: Electric
-
Includes: ElitePRO® S1000 Series Thermostat, UWP Wall Plate, Decorative Cover Plate with J-Box Adapter, Screws and Anchors
-
For Use With: THP9045A C-wire adapter, C7189R3010-2 room sensor
-
Bluetooth Specifications: BLE 2.4 GHz
-
WiFi: Yes
-
WiFi Specifications: 2.4 & 5GHz
-
RedLINK: Yes, 3.0
-
Ambient Operating Temperature (Max): 102 °F, 39 °C
-
Ambient Operating Temperature (Min): 37 °F, 3 °C
-
Operating Relative Humidity (Max): 90 % RH
-
Operating Relative Humidity (Min): 5 % RH
-
Compatible Sensor: C7189R3010-2
-
Auto Changeover: Yes
-
Humidity Set point (Max): 90 % RH
-
Humidity Set point (Min): 0 % RH
-
Mounting Type: Horizontal Mount, Junction Box, Wall surface, UWP Mounting System
-
Number of Fan Speeds: Fan speeds for some systems
-
Power Supply Frequency: 60 Hz
-
Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
-
Set point Temperature (Min): Heat: 40 °F, Cool: 50 °F, Heat: 4.5 °C, Cool: 10°C
-
Shipping and Storage Temperature (Max): 120 °F, 49 °C
-
Shipping and Storage Temperature (Min): -20 °F, -29 °C
-
Mounting Location: Wall, Junction Box
-
Features: Digital Display, ENERGY STAR Certified, Touchscreen Display, Utility Rewards, WiFi Connection, Air Quality Monitoring
-
ADI Part Number: QC-THX1000B2U
-
Brand Name: Honeywell Home
-
Manufacturer Part Number: THX1000B2/U
-
Product Line: ElitePro
-
Product Series: S1000
-
HVAC Compatibility: Up to 4H/2C heat pump or 3H/2C conventional systems, including dual fuel, radiant, fan-coil, and PTAC
-
Connectivity: WiFi, Bluetooth®, RedLINK™, and Matter
-
Sensors: Built-in occupancy and ambient light sensors plus optional remote room sensors
-
Collection: ElitePRO™
-
Color Finish Category: Blacks
-
Color Finish Name: Black
-
Depth: 24/25 in
-
Display Type: Digital
-
Programmability: Programmable
-
Smart Home Compatibility: Google Home, Amazon Alexa, Apple HomeKit, Matter, Redlink
-
Smart Home Enabled: Yes
-
Volts: 24V
-
Wireless Communication: Bluetooth/Wi-Fi
-
Style Name: ElitePRO S1000
-
Brand/Model Compatibility: THP9045A C-wire adapter and C7189R3010-2 room sensor
-
Maximum Temperature: 90
