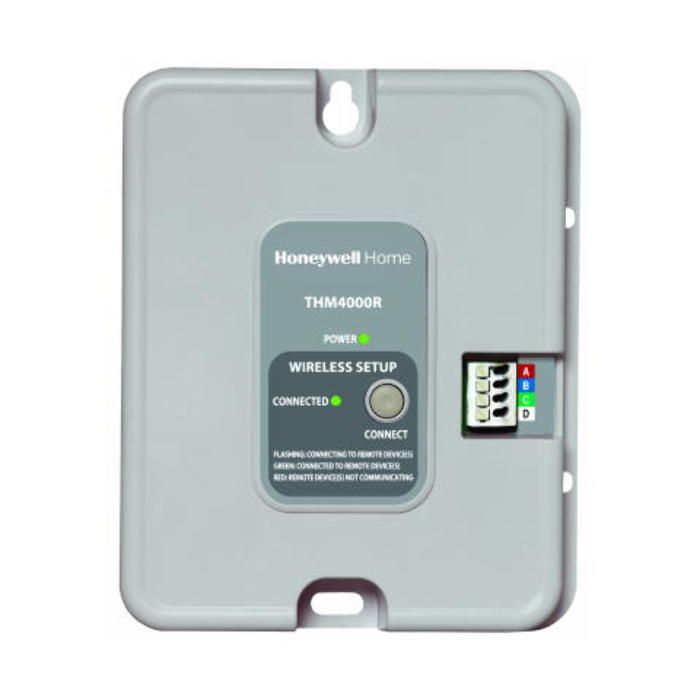

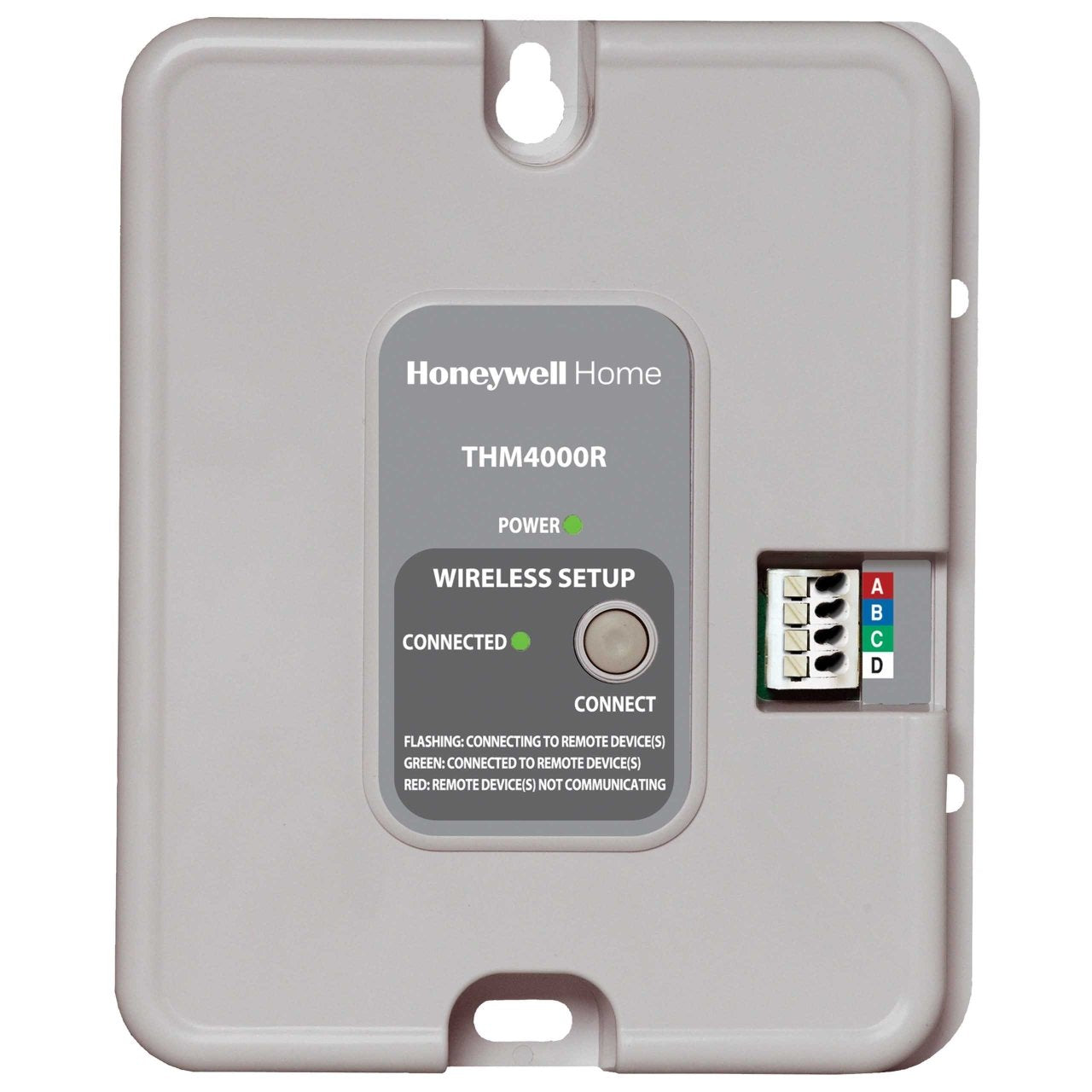

Honeywell THM4000R1000/U Wireless Adapter for Use With Red Link Enabled Thermostats and True Zone System

Product Description

The Honeywell THM4000R1000/U is a wireless adapter that enables RedLINK-enabled thermostats to join TrueZONE zoning systems. It provides Wi-Fi connectivity with an LED backlight display and mounts on a wall near HVAC equipment or on a duct. The adapter pairs one unit per zone control panel (HZ322 or HZ432) and supports communication with RedLINK-enabled humidification systems and wireless outdoor sensors for humidity control.

• Adds RedLINK-enabled thermostats to TrueZONE systems; one adapter per zone control panel (HZ322 or HZ432)
• Wi-Fi connectivity with LED backlight display; surface-mount for wall or duct installation
• Communicates with RedLINK-enabled TrueSTEAM humidification systems, wireless outdoor sensor, and compatible dehumidifiers for humidity control

Product Highlights

Wireless adapter enabling RedLINK integration with TrueZONE zoning; Wi-Fi and LED backlight; mounts near HVAC or on duct; supports humidity control and pairs per zone panel.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: THM4000R1000/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number (MPN): THM4000R1000/U
• Item Model Number: THM4000R1000/U
• Product Type: Wireless adapter (TrueZONE to RedLINK)
• Function: Adds RedLINK-enabled thermostats to TrueZONE systems; enables wireless communication and humidity control with RedLINK-enabled humidification systems
• Compatibility: RedLINK-enabled thermostats; TrueZONE zone control panels HZ322 and HZ432; RedLINK-enabled TrueSTEAM humidification systems; Honeywell Home dehumidifiers; wireless outdoor sensor
• Connectivity Protocol: Wi-Fi / RedLINK
• Connectivity Technology: Wi-Fi
• Controller Type: Wi-Fi
• Display Type: LED
• Backlight: Yes
• Mounting Type: Surface mount (mount on wall near HVAC equipment or on duct)
• Operation Note: One adapter per zone control panel (HZ322 or HZ432)
• Dimensions (inches): 5.5625 x 4.375 x 1.25 inches
• Dimensions (mm): 141 x 112 x 32 mm
• Weight: 0.40 lbs
• Operating Temperature Range (F): -40 F to 165 F
• Operating Temperature Range (C): -40 C to 73.9 C
• Operating Humidity Range: 5 to 95% RH, non-condensing
• Terminal Designations: A, B, C, D
• Made In: United States
• Manufacturer: Honeywell
