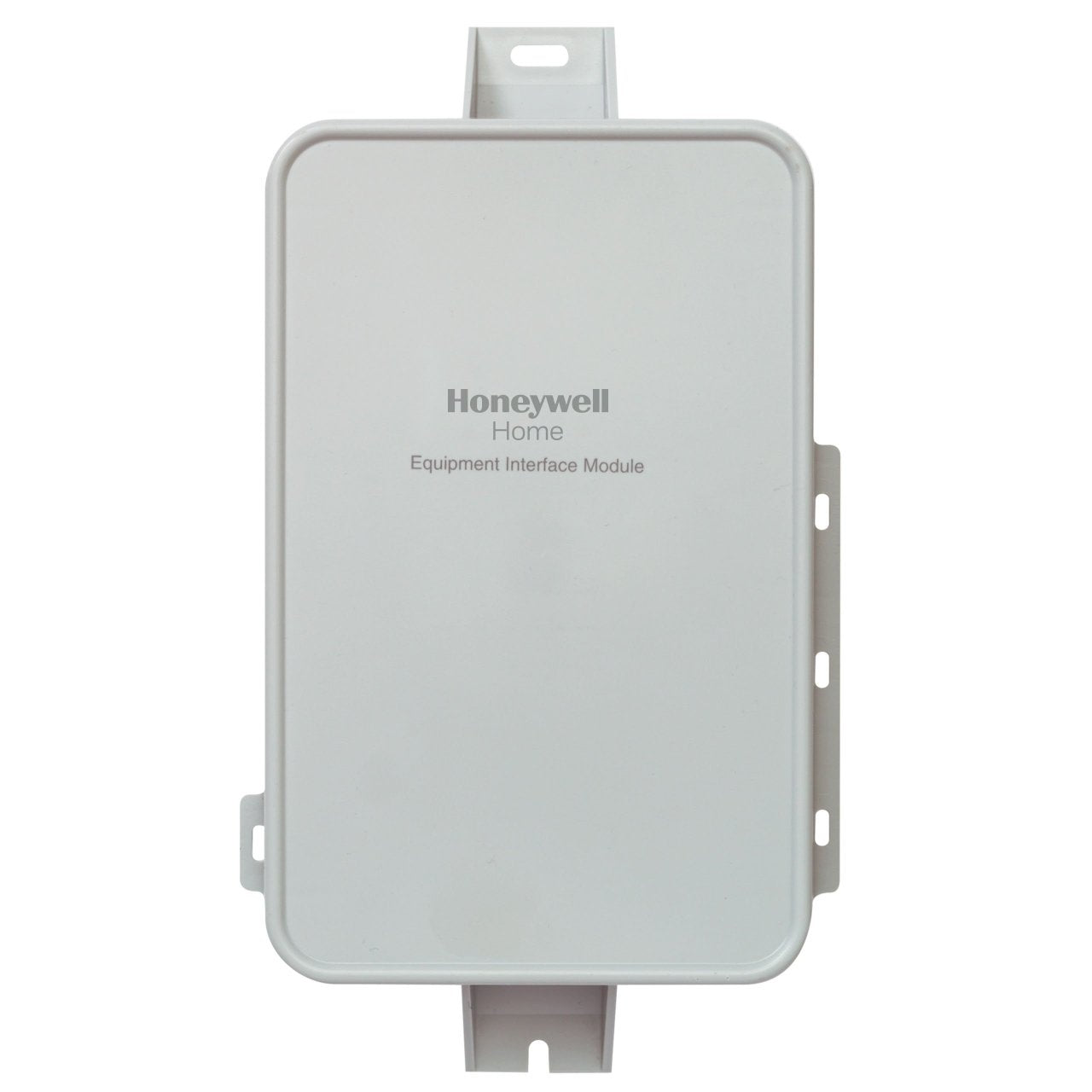

HONEYWELL THM04R3000/U Equipment Interface Module for T10+

Product Description

The HONEYWELL THM04R3000/U Equipment Interface Module is intended for the T10+ Pro Smart Thermostat. This module supports up to three stages of heating and two stages of cooling for heat pump systems and two stages of heating and cooling for conventional systems. It simplifies complex HVAC wiring tasks. The module works with 24 Vac systems which include gas, oil, electric, steam, gravity, and dual fuel setups.

• Supports up to 3H/2C heat pump or 2H/2C conventional systems.
• Utilizes RedLINK wireless technology for easy wiring.
• Versatile mounting options with LED status indicators.

Product Highlights

This Equipment Interface Module connects Honeywell T10+ Pro Smart Thermostats to HVAC systems, providing reliable performance and flexibility in installation.

Product Information

Standard Information

• Application: 24 Vac systems, up to 3H/2C heat pump, up to 2H/2C conventional
• Model: THM04R3000/U

Technical Specifications

• Height: 9.31 inches
• Length: 1.59 inches
• Width: 4.81 inches
• Max Ambient Operating Temperature: 165 °F
• Min Ambient Operating Temperature: -40 °F
• Connection Type: Wired (Screw Terminal), Wireless (RedLINK)
• Electrical Ratings: 20 to 30 Vac
• Humidity Rating: 5-90% RH, non-condensing
