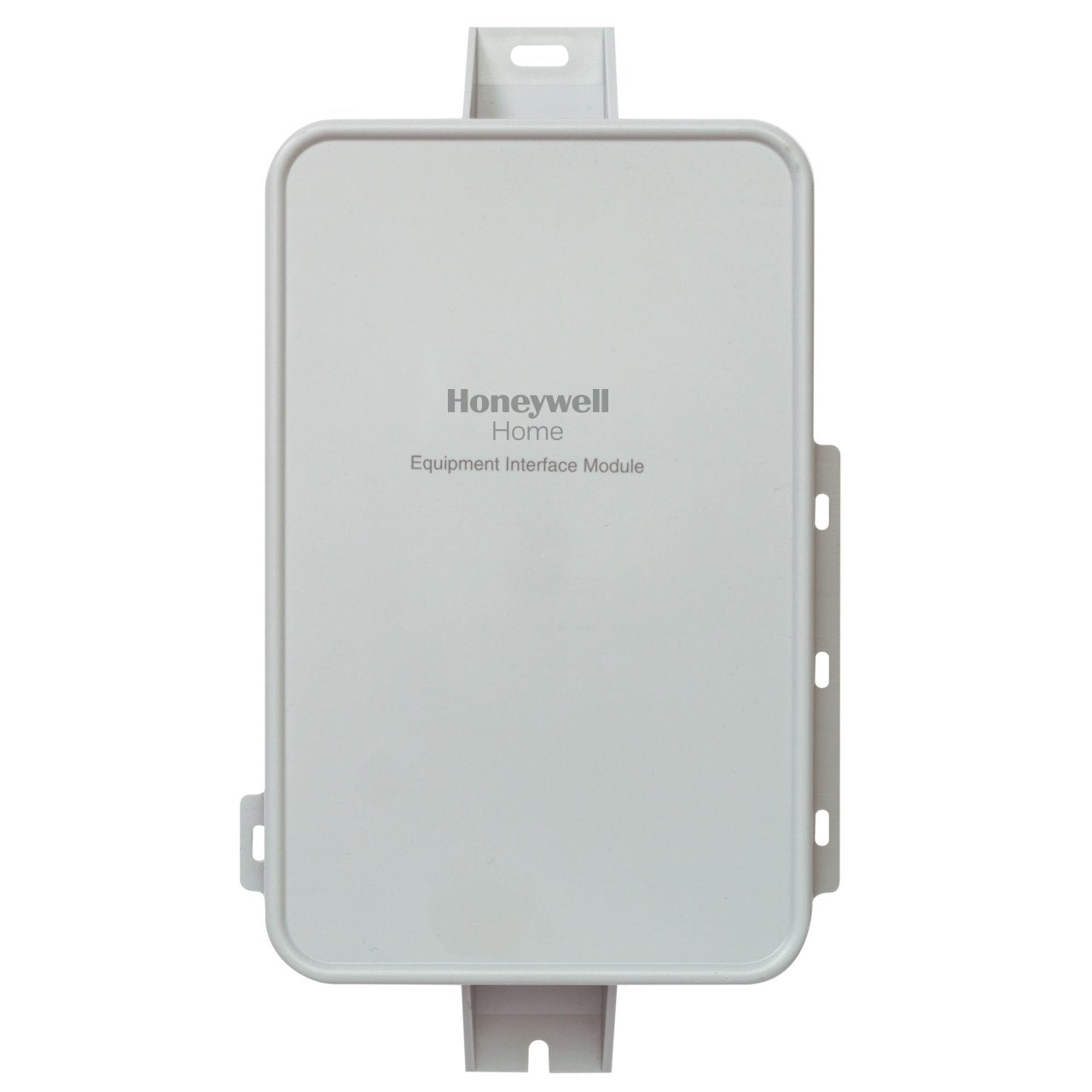

Honeywell THM04R3000 Equipment Interface Module (EIM) w/ RedLINK 3.0 for T10+ Pro Smart Thermostats

Product Description

The HONEYWELL THM04R3000 Equipment Interface Module (EIM) w/ RedLINK 3.0 is designed for use with T10+ Pro Smart Thermostats. It supports multi-stage heat/cool and heat pump applications. The module includes mounting hardware and features screw terminal connections. It operates within a temperature range of -40°F to 165°F.

• Compatible with T10+ Pro Smart Thermostats
• Features RedLINK Enabled technology
• Includes mounting hardware for wall or stud installation

Product Highlights

Equipment Interface Module (EIM) w/ RedLINK 3.0 for use with the T10+ Pro Smart Thermostats Only.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: THM04R3000-EIM

Technical Specifications

• Application: Multi-Stage (Heat/Cool), Heat Pump
• Includes: Equipment Interface Module (EIM), Mounting Hardware
• Product Length: 1.59 in, 42 mm
• Color: Gray
• Ambient Operating Temperature (Min): -40°F, -40°C
• Electrical Ratings: 20 to 30 Vac
• Number of LEDs: 2
• Approvals and Standards: FCC: 47 CFR 15.19 (a)(3), 47 CFR 15.21 (USA only), 47 CFR 15.105 (b), IC REGULATIONS: RSS-GEN
• Product Height: 9.31 in, 91 mm
• Product Width: 4.81 in, 147 mm
• Ambient Operating Temperature (Max): 165°F, 74°C
• Connection Type: Screw Terminals
• For Use With: T10+
• Mount: Wall, Stud
• Stages: 2 Heat/2 Cool, 3 Heat/2 Cool Heat Pump
• Changeover: Auto, Manual
• Voltage: 20-30VAC
• Min Temp (F): -40°F
• Switch: Relay
• Features: RedLINK Enabled
• Brand: Honeywell
• MPN: THM04R3000
• Temperature Range: -40 to 165 Deg F
• Power Source: Hardwired
