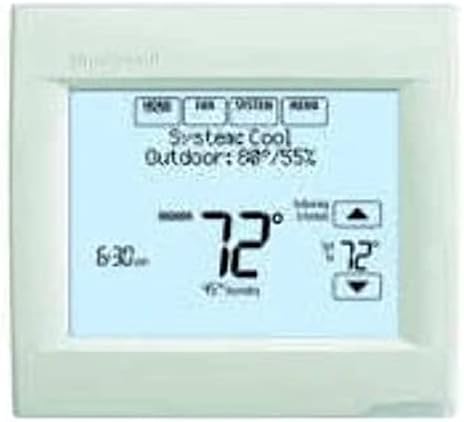

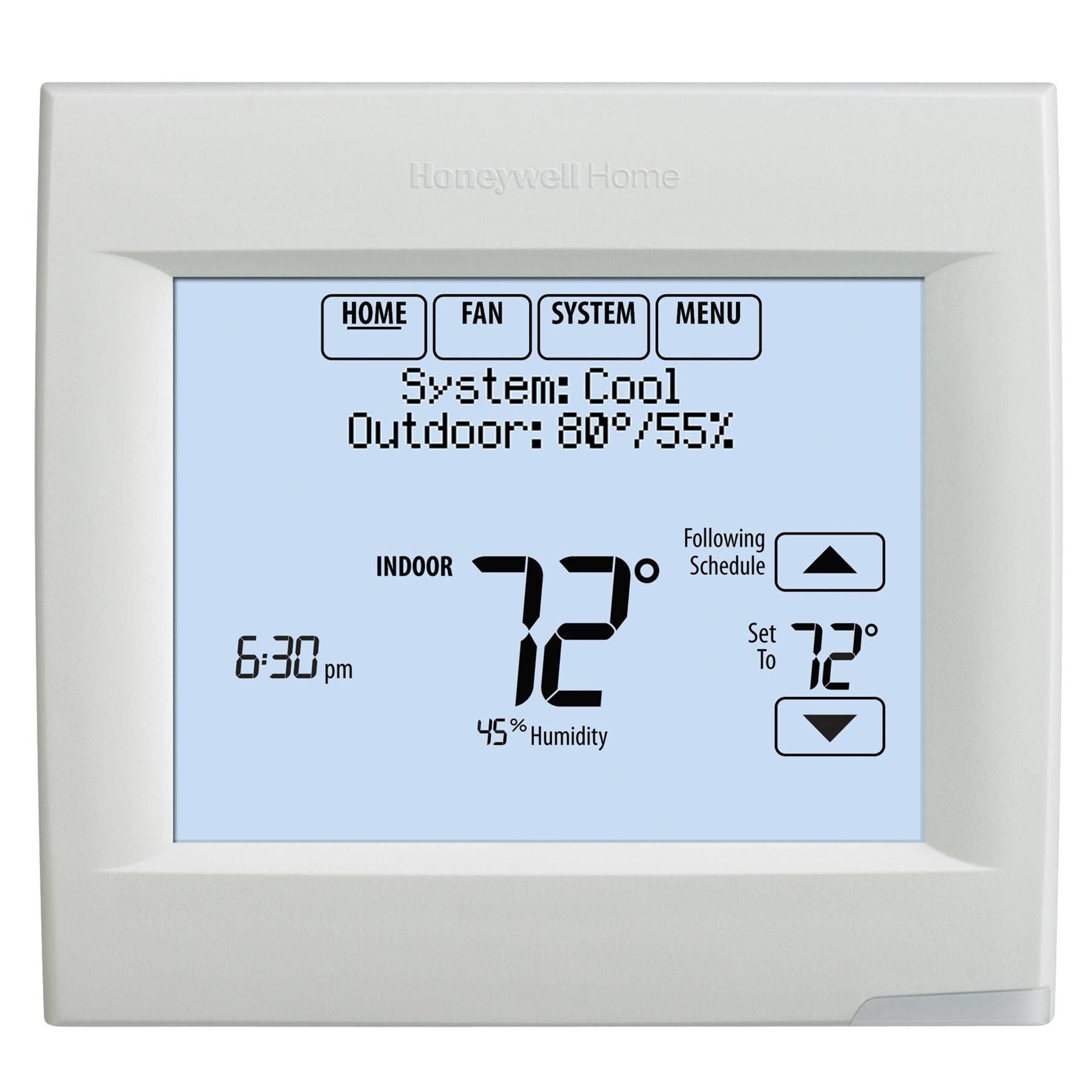

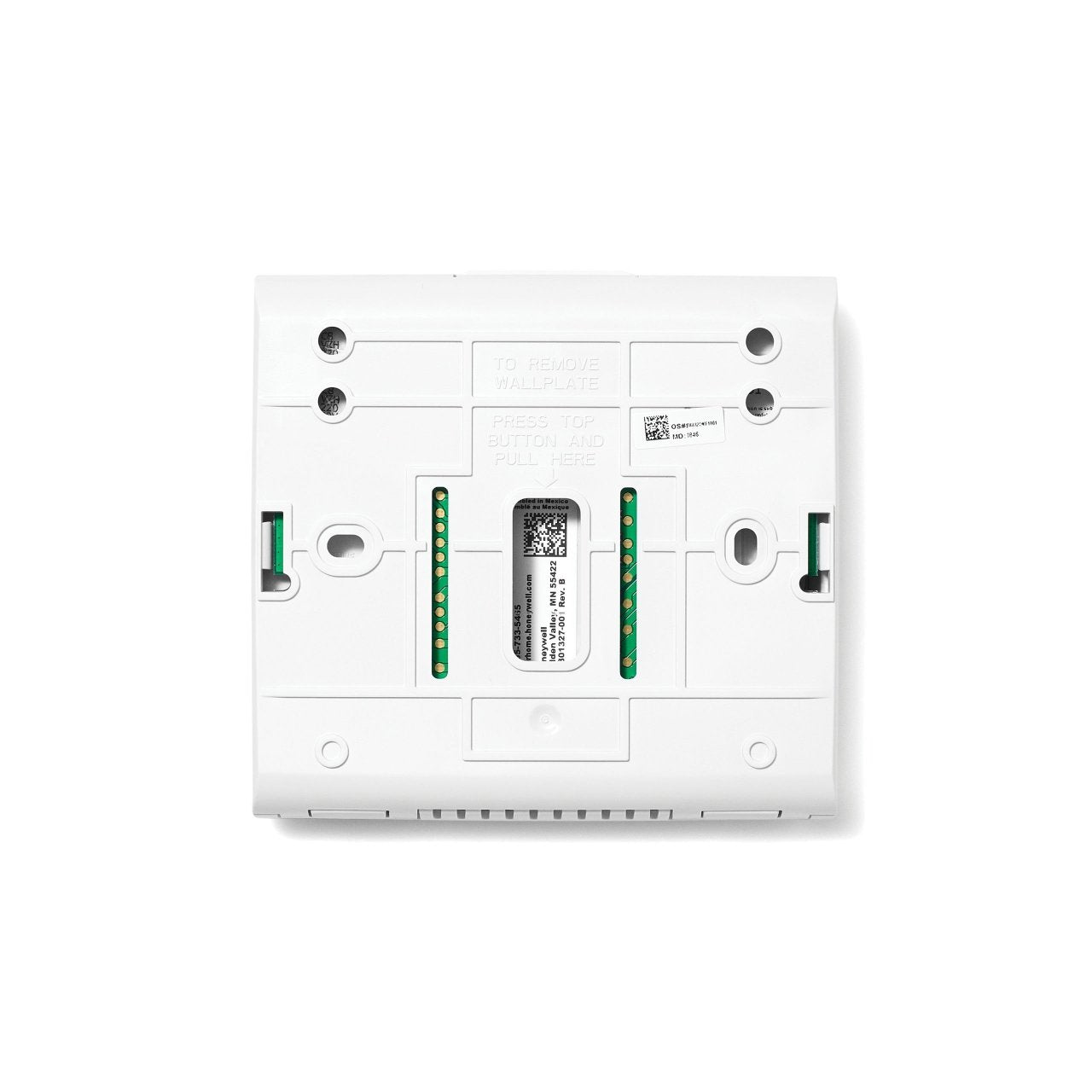

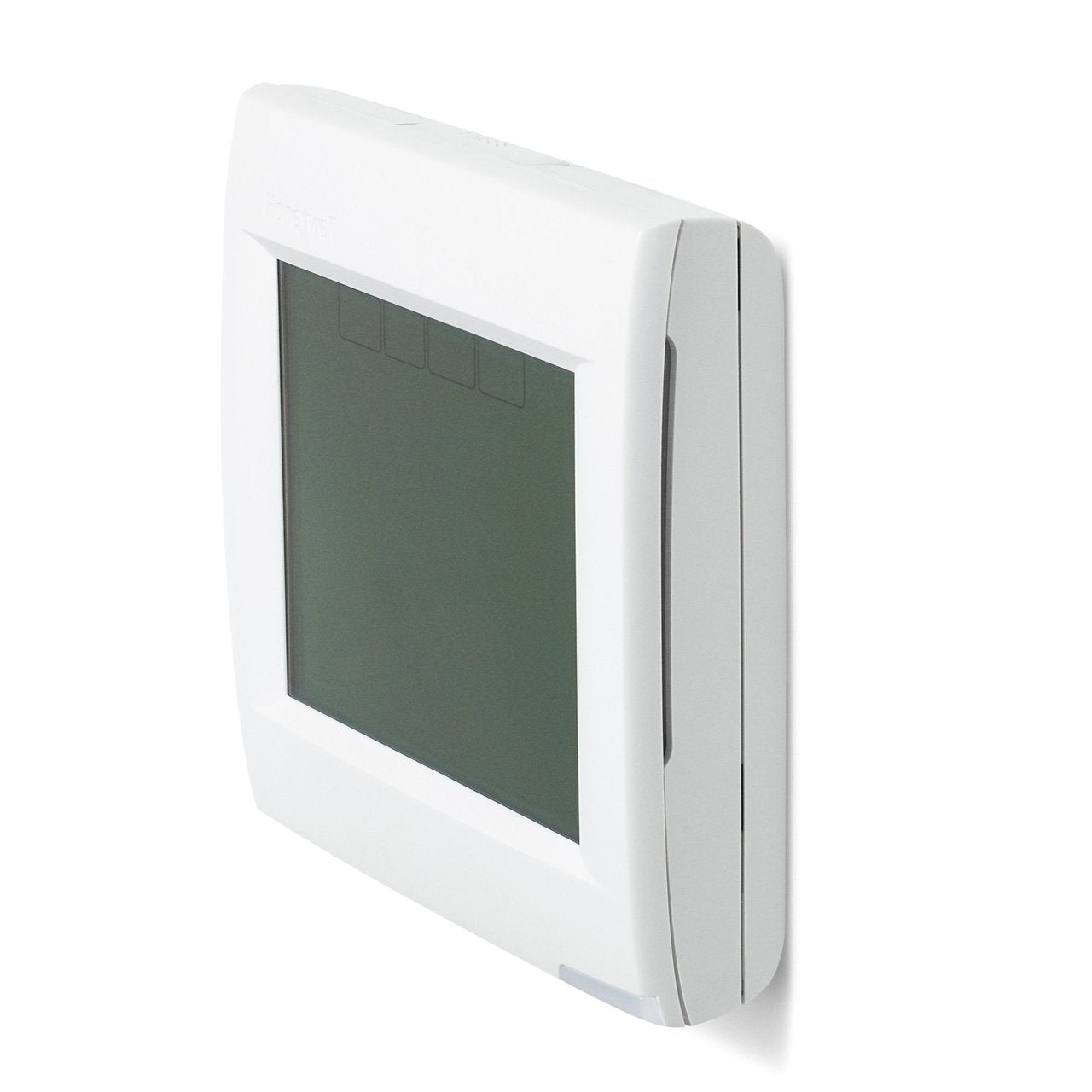

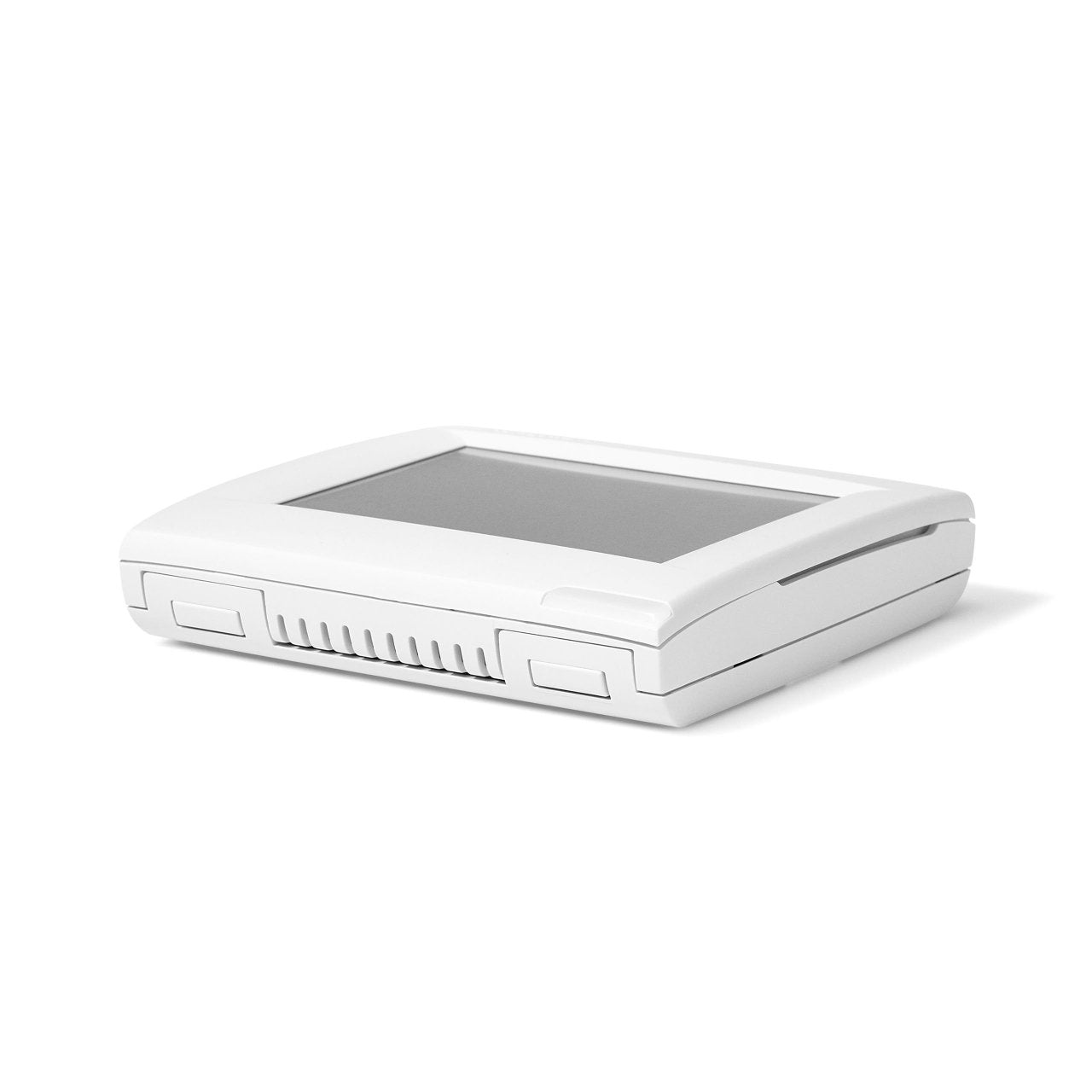

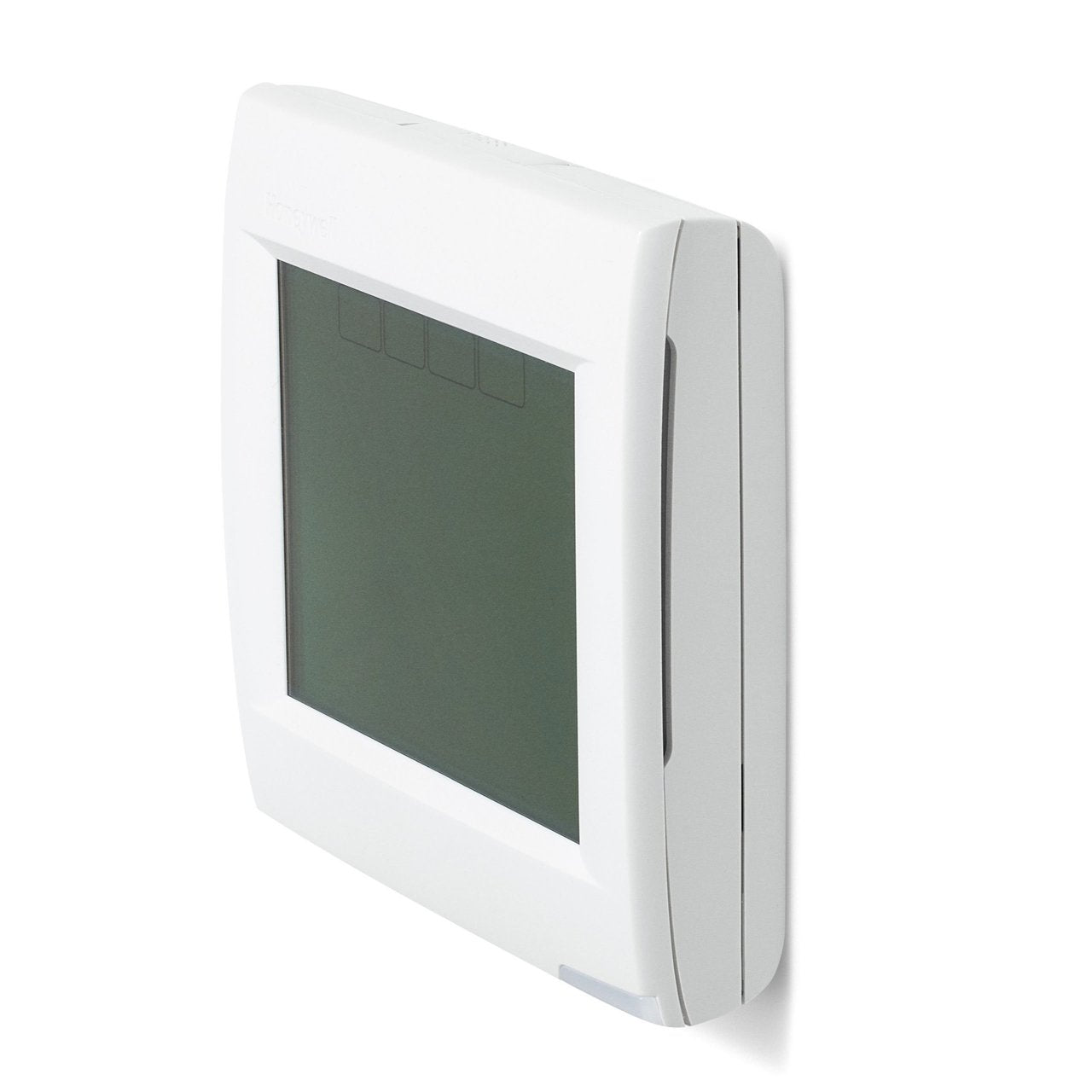

Honeywell TH8321WF1001/U VisionPRO 8000 Wi‑Fi Thermostat 24V (10.0 inches Display)

Product Description

Honeywell TH8321WF1001/U is a VisionPRO 8000 Wi‑Fi thermostat that provides programmable temperature control and remote access for residential and light commercial HVAC systems. It supports 2 Heat/2 Cool conventional systems or 3 Heat/2 Cool heat pump applications, features a 10.0 square-inch touchscreen display, Wi‑Fi connectivity for Resideo Total Connect Comfort, and 7-day programmability. Setpoint ranges are Heat 40 F to 90 F and Cool 50 F to 99 F; unit requires 24 Vac C-wire power.

• System compatibility: 2 Heat/2 Cool conventional or 3 Heat/2 Cool heat pump; SPST switch design where applicable
• Connectivity and control: Wi‑Fi with Resideo Total Connect Comfort for remote scheduling and smartphone/tablet/computer access; works with Amazon Alexa
• Installation and interface: 10.0 sq in touchscreen display, 7-day programmable schedules, 24 Vac C‑wire power, screw terminal connections, wall mount

Product Highlights

Wi‑Fi programmable thermostat for up to 3H/2C heat pump or 2H/2C conventional systems; 10.0 sq in touchscreen; 24 Vac C‑wire power; ENERGY STAR certified.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH8321WF1001/U

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: TH8321WF1001/U
• Model: VisionPRO 8000
• Type: Wi‑Fi programmable thermostat
• System Compatibility: 2 Heat/2 Cool conventional; 3 Heat/2 Cool heat pump
• Input Voltage: 24 Vac
• Power Method: C‑wire (hardwired 24 Vac)
• Display Size: 10.0 sq in (touchscreen)
• Display Type: Touchscreen
• Programming: 7-day programmable
• Heat Temperature Range: 40 F to 90 F
• Cool Temperature Range: 50 F to 99 F
• Operating Temperature Range: 32 F to 120 F
• Operating Humidity Range: 5% to 90% RH (non-condensing)
• Dimensions: 4.96 x 4.65 x 1.14 inches (W x H x D)
• Face Dimensions: 4-15/16" W x 4-5/8" H
• Mounting Type: Wall mount
• Electrical Connections: Screw terminals
• Sensor Type: Thermistor
• Changeover: Auto or Manual
• Fan Settings: On, Auto, Circulating
• Connectivity: Wi‑Fi (compatible with Resideo Total Connect Comfort)
• Certifications: ENERGY STAR Certified
• Includes: Screws, anchors, literature
• For Use With: THP9045A1023/U C‑wire adapter
