Product Description
The Honeywell TH8321R1001/U Visionpro 8000 thermostat works standalone or with the THM5421R1021 equipment interface module or with the TrueZONE wireless adapter. It is selectable for residential and light commercial applications and meets commercial code and is title 24 compliant. The thermostat features a MicroSD port for adding dealer contact information.
- Thermostat Works Standalone Or With The THM5421R1021 Equipment Interface Module Or With The TrueZONE Wireless Adapter
- Selectable For Residential And Light Commercial Applications. Meets Commercial Code And Is Title 24 Compliant
- MicroSD Port For Adding The Dealers Contact Information On The Screen
Product Highlights
The Visionpro 8000 is a 7-day programmable touchscreen thermostat with Redlink wireless communication. It has customizable service reminders and a plain language setup.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: TH8321R1001/U
Technical Specifications
-
Brand: HONEYWELL
-
Part #: TH8321R1001/U
-
Control: 40 to 90 deg F Heat/50 to 99 deg F Cool Control
-
Terminal: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1, S1
-
Changeover: Auto/Manual
-
Color: Arctic White
-
Display Type: 10 sq-in Touchscreen
-
Frequency Rating: 50/60 Hz
-
Humidity Rating: 5 - 90% Relative Humidity, Non-Condensing
-
Item Name: Programmable Thermostat
-
Model: VisionPRO 8000
-
Mounting: Horizontal
-
Power Source: Battery/Hardwired/750 MV
-
Programmability: 7 days
-
Series: VisionPRO
8000, TH8321 Series
-
Setting Temperature: 40 - 90 deg F Heat, 50 - 99 deg F Cool
-
Stages: Up to 3 Heat/2 Cool Heat Pump Systems when used standalone, Up to 2 Heat/2 Cool Conventional Systems when used standalone, Up to 3 Heat/2 Cool Conventional Systems when used with the Equipment Interface Module, Up to 4 Heat/2 Cool Heat Pump Systems when used with the Equipment Interface Module
-
Switch Position: HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
-
Temperature Rating: 32 to 120 deg F
-
Voltage Rating: 18 - 30 VAC, 750 mV
-
Applications: For conventional and heat pump systems, residential or light commercial applications
-
Thermostat Type: VisiionPRO 8000 Red Link Universal
-
Voltage: 24
-
Product Features: Thermostat works standalone or with the THM5421R1021 Equipment Interface Module or with the TrueZONE Wireless Adapter., Smart Schedule - programs in seconds for any lifestyle., Patented interview based programming and installer setup., RedLINK
wireless communication. ENERGY STAR
Certified
-
Smart Home Integration: No
-
Display Size: 10 sq in
-
Touchscreen: Yes
-
Display Language: English
-

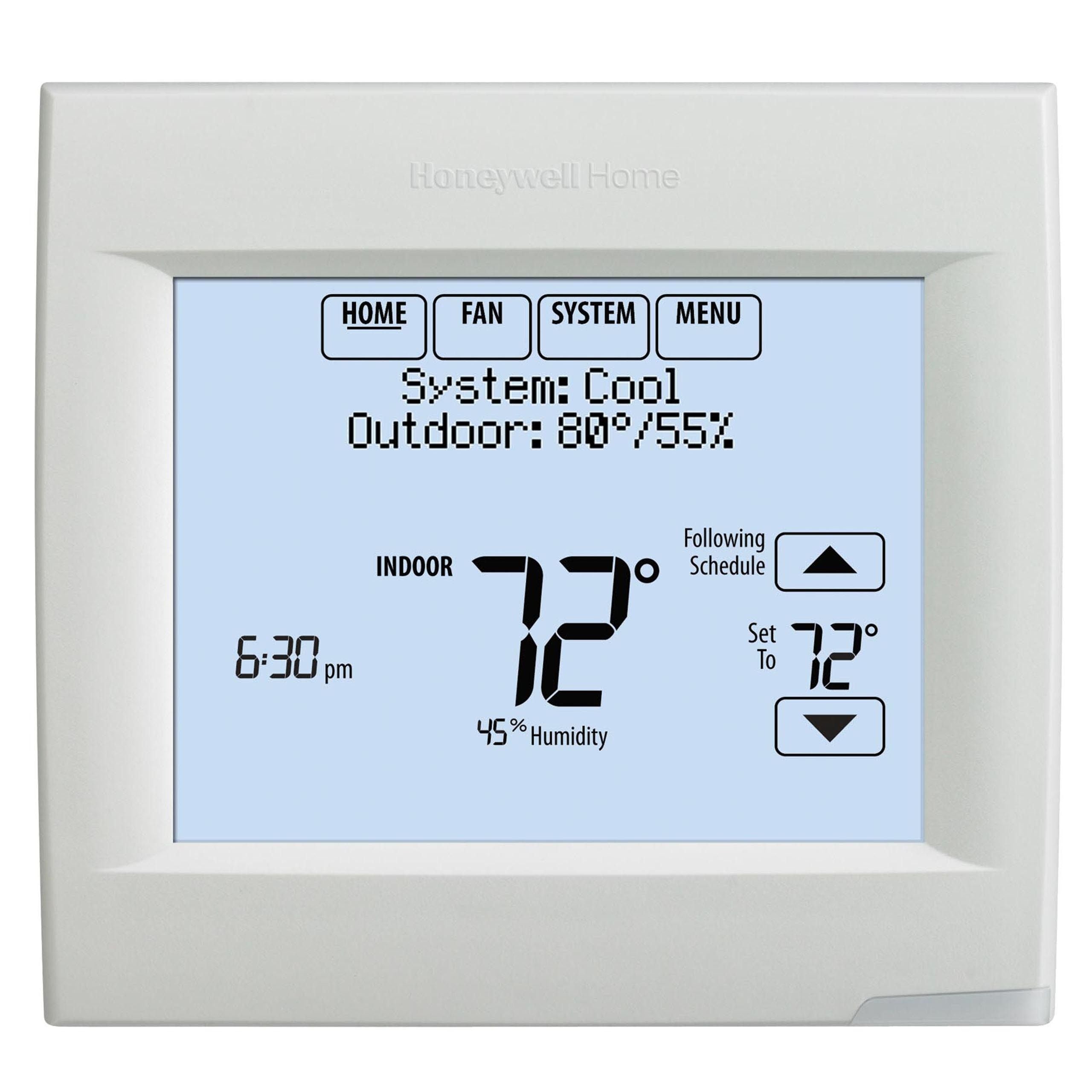

Displayed Information: Indoor Temperature, Indoor Humidity, Outdoor Temperature, Outdoor Humidity, Time, Status Display
-
IAQ Capability: Humidification, Dehumidification, Ventilation
-
Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat except model TH8110R1008
-
Program Type: 7-Day Programmable, Manual / Not Programmed
-
Energy Star Certified: Yes
-
Alerts and Reminders: Customizable Service Reminders
-
Number of Batteries: 4
-
Battery Life: 1 Years
-
Battery Size: AA
-
Battery Type: Alkaline
-
Includes: VisionPRO
8000 Thermostat, Wall anchors, Screws , Literature
-
For Use With: Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK
2.0 accessories
-
Communication Type: RedLINK, WiFi
-
WiFi: No
-
WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
-
Z-Wave: No
-
Z-Wave Specifications: Not Applicable
-
RedLINK: Yes
-
Sensor Type: Thermistor
-
Ambient Operating Temperature (Max): 120
F, 49
C
-
Ambient Operating Temperature (Min): 32
F, 0
C
-
Operating Relative Humidity (Max): 90% Non-condensing
-
Operating Relative Humidity (Min): 5% Non-condensing
-
Backlight Options: Adjustable
-
Fan Function: On, Auto, Circulating
-
Clock Type: Year Clock
-
Demand Response: No
-
Electrical Connection Type: Screw terminals
-
Humidity Set point (Max): Heating: 60% RH|Cooling: 80% RH
-
Humidity Set point (Min): Heating: 10% RH|Cooling: 40% RH
-
Mounting Location: Wall
-
Power Supply Frequency: 50 Hz, 60 Hz
-
Set point Temperature (Max): Heat: 90
F, Heat: 32
C, Cool: 99
F, Cool: 37
C
-
Set point Temperature (Min): Heat: 40
F, Heat: 5
C, Cool: 50
F, Cool: 10
C
-
Product Height: 4.63 in, 118 mm
-
Product Width: 4.94 in, 126 mm
-
Product Depth: 1.13 in, 29 mm
