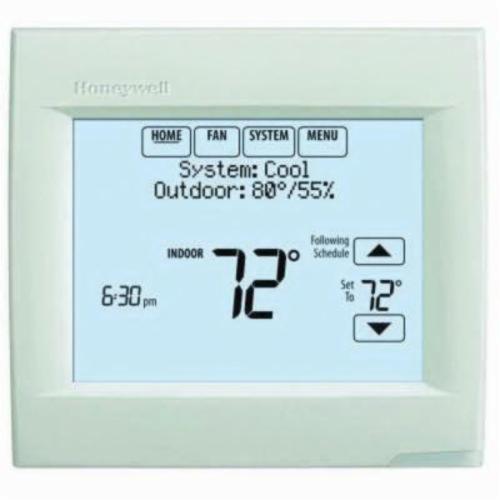

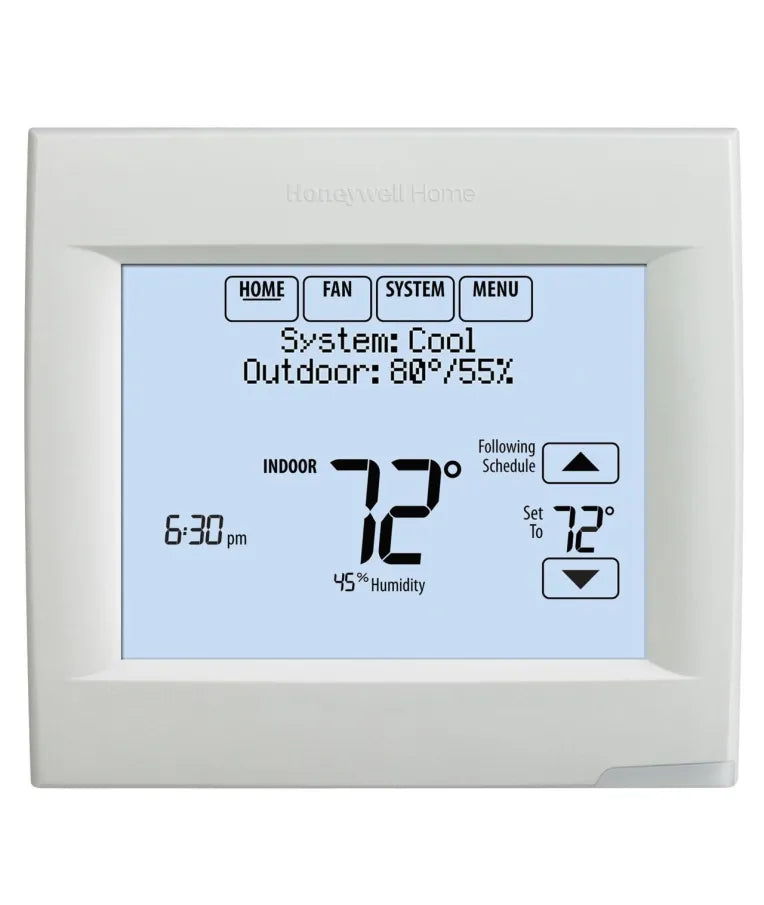

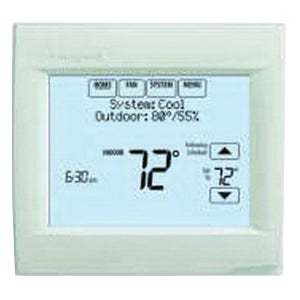

Honeywell TH8320R1003/U Visionpro Redlink 3H/2C Programmable Thermostat

Product Description

The HONEYWELL TH8320R1003/U Visionpro Redlink 3H/2C Programmable Thermostat is a 7-day programmable touchscreen thermostat suitable for residential or light commercial use. It can be wired directly or used with the THM5421R1021 equipment interface module or THM4000R1000 TrueZone wireless adapter. It programs quickly and is selectable for residential and light commercial applications.

• Smart schedule programs in seconds for any lifestyle
• Features patented interview-based programming and installer setup
• Offers RedLINK wireless communication

Product Highlights

This thermostat provides precise temperature control and multiple staging options for comfort and energy savings. It also has customizable service reminders.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH8320R1003/U
• Country of Origin: MX

Technical Specifications

• Stages Cool: 2
• Stages Heat: 3
• Programs per Week: 7 Days
• Control Range: 40 to 90 deg F
• Voltage Rating: 18 to 30 VAC
• Terminal Designations: R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1
• Fan Switching: Auto-On-Circ
• Series: 8000
• Display: 10 sq-in
• Changeover: Auto/Manual
• Setting Temperature: 40 - 90 deg F Heat, 50 - 99 deg F Cool
• Switch Position: HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
• Temperature Rating: 37 - 120 deg F
• Applications: For conventional and heat pump systems, residential or light commercial applications
• Standards/Certifications: Meets commercial code title 24 compliant
• Frequency Rating: 50/60 Hz
• Humidity Rating: 5 - 90% Relative Humidity, Non-Condensing
• Item Name: Programmable Thermostat
• Model: VisionPRO 8000
• Mounting: Horizontal
• Power Source: Battery/Hardwired
• Programmability: 7 days
• Type: Low Voltage
• Differential: +/-1 deg F
• Number of Stages: 3 Heat/2 Cool
• System Switching: Auto-Heat-Cool-Off
• Temperature Settings Per Day: 4
• Special Features: RedLink
• Wireless: Yes
• Humidity Control: No
