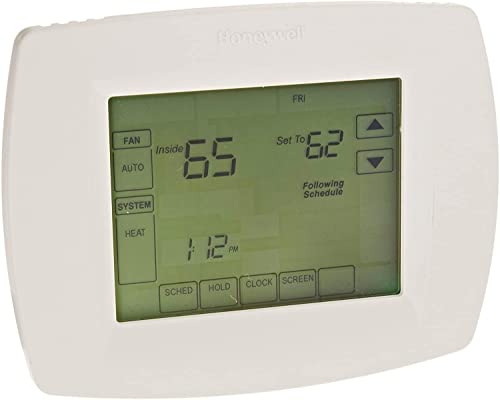

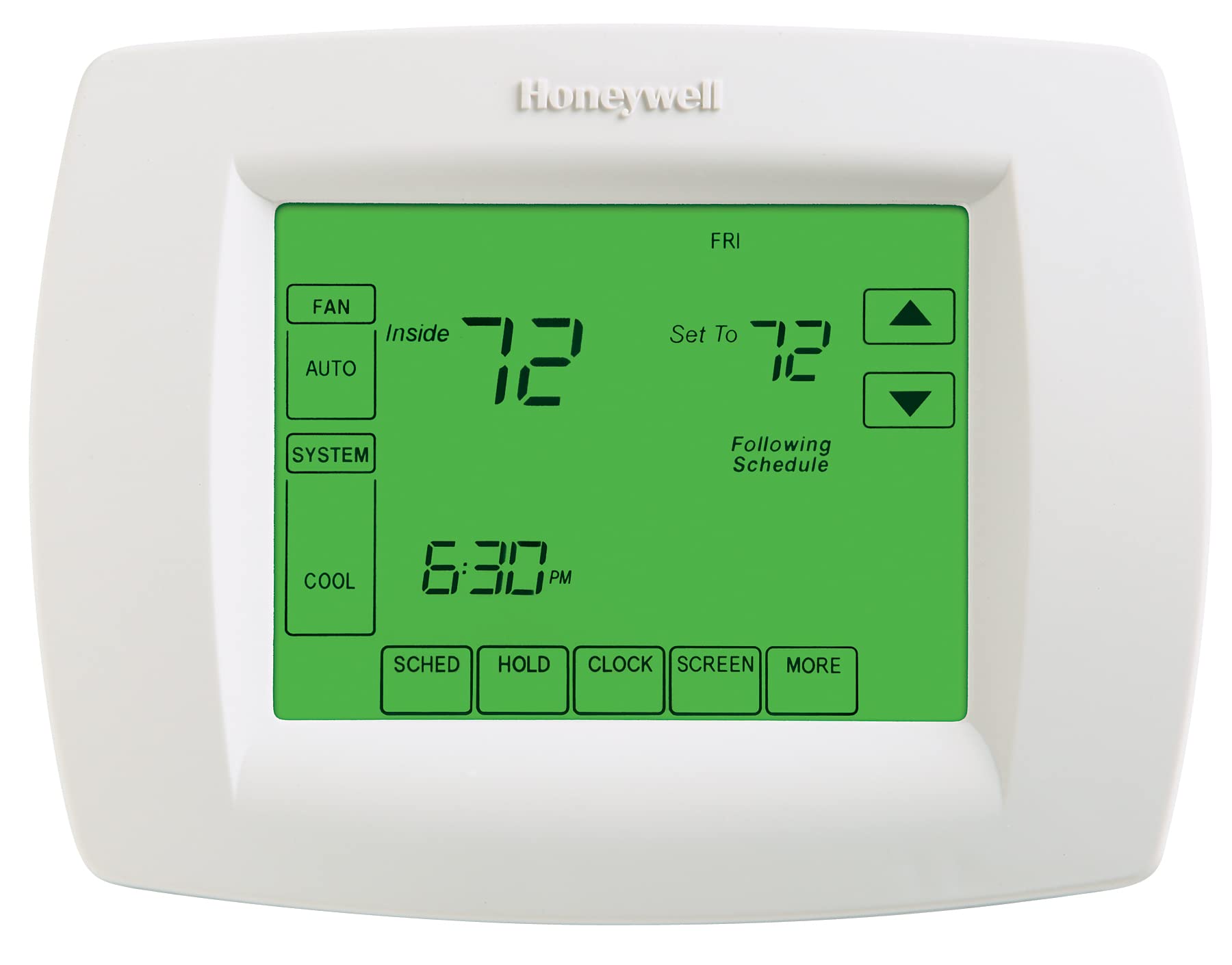

Honeywell TH8110U1003 VisionPRO 8000 Series Thermostat 20 - 30 VAC Up to 1 Heat/1 Cool

Product Description

The Honeywell TH8110U1003 VisionPRO 8000 Series Thermostat is a 7-day programmable, touchscreen device designed for precise temperature control in HVAC systems. Operating on 20-30 VAC with 15-25 W power consumption, it supports up to 1 Heat/1 Cool stages. This universal thermostat features effortless, menu-driven programming, allowing separate daily schedules. It includes a large, clear backlit digital display for easy reading and offers automatic/manual changeover for heating and cooling systems.

• 7-day programmable with menu-driven setup for customized scheduling.
• Large, clear backlit digital display for easy reading and operation.
• Supports up to 1 Heat/1 Cool HVAC systems with automatic/manual changeover.

Product Highlights

Programmable touchscreen thermostat with precise temperature control and maintenance reminders.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH8110U1003

Technical Specifications

• Input Voltage: 20 - 30 VAC
• Millivoltage: 750 mV
• Current: 0.6 - 1 A
• Power Consumption: 15 - 25 W
• Stages: Up to 1 Heat/1 Cool
• Product Type: HVAC_CONTROL_THERMOSTAT
• Manufacturer: Honeywell Home
• Brand: Honeywell
• Color: White
• Application: Single-Stage (Heat/Cool), Heat Pump
• Programmability: 7 Day, Programmable
• User Interface: Touchscreen
• Mounting Type: Horizontal
• Options: Works with Sensor, Auto Changeover, Fan Control, Large Display
• Power Method: Hardwired, Battery
• Changeover: Manual, Auto
• Temperature Range: 40°F - 99°F
• Max Temperature Differential: 1°F
• Operating Humidity: 5 to 90% RH, non-condensing
• Wiring Terminals: R, RC, C, W (O/B), Y, G, S1, S2
• Frequency: 50 Hz, 60 Hz
• Humidity Control: No
• Wireless: No
• Model Name: Vision Pro 8000
• Special Feature: Programmable
• Specific Uses: Furnace
• Temperature Control Type: Heating and Cooling
• Display Type: Digital
• Backlight: Yes
• Number of Batteries: 3 AAA batteries required
• Shape: Curved
• Product Style: Modern
