Product Description

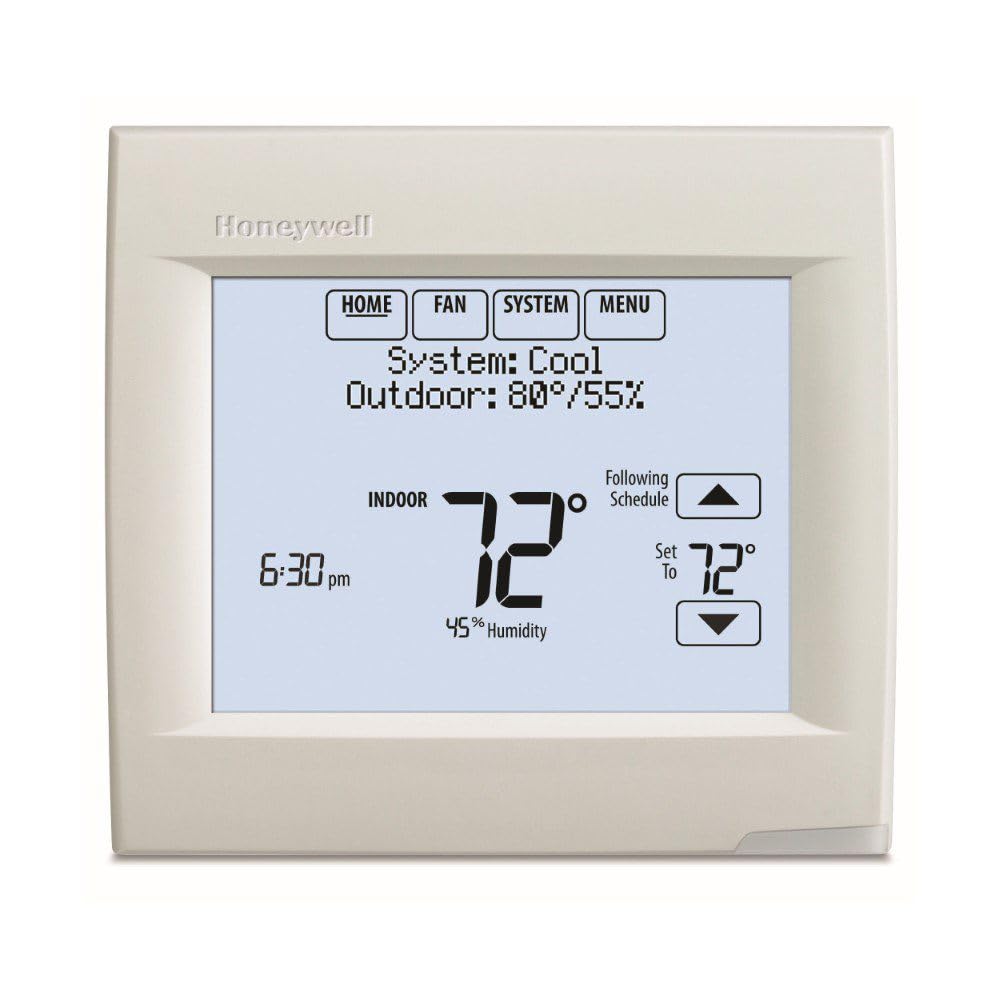

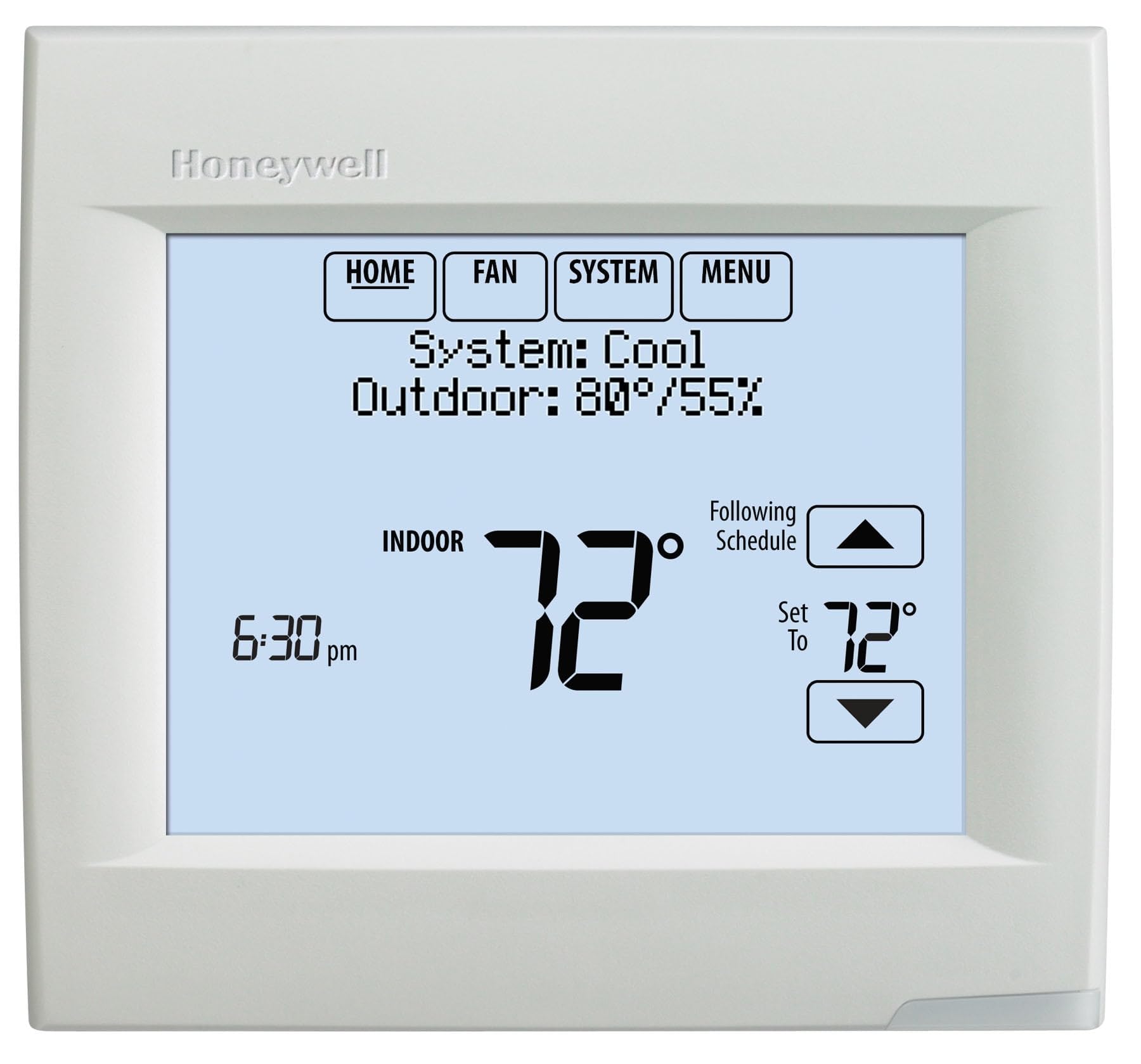

The Honeywell TH8110R1008/U Visionpro 8000 thermostat is designed for 1 Heat/1 Cool conventional systems and heat pump applications. It can operate standalone or with the THM5421R1021 equipment interface module or TrueZONE wireless adapter. Selectable for residential and light commercial applications and meets commercial code and Title 24 compliance.
- Thermostat Works Standalone Or With The THM5421R1021 Equipment Interface Module Or With The TrueZONE Wireless Adapter
- Selectable For Residential And Light Commercial Applications. Meets Commercial Code And Is Title 24 Compliant
- MicroSD Port For Adding The Dealers Contact Information On The Screen
Product Highlights
This programmable thermostat features RedLINK wireless communication, plain language setup, and multiple staging options for optimized comfort or energy savings. It has a precise temperature control (+/- 1 F) for reliable and consistent temperature.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: TH8110R1008/U
Technical Specifications
-
Brand: HONEYWELL
-
Color: Arctic White
-
Changeover: Auto/Manual
-
Display Type: 10 sq-in Touchscreen
-
Frequency Rating: 50/60 Hz
-
Humidity Rating: 5 - 90% Relative Humidity, Non-Condensing
-
Item Name: Programmable Thermostat
-
Model: VisionPRO 8000
-
Mounting: Horizontal
-
Power Source: Battery/Hardwired
-
Programmability: 7 days
-
Series: TH8110R
-
Setting Temperature: 40 - 90 deg F Heat, 50 - 99 deg F Cool
-
Stages: 1 Heat/1 Cool
-
Switch Position: HEAT-OFF-COOL-AUTO (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
-
Temperature Rating: 37 - 120 deg F
-
Terminal Designation: R, RC, C, W-O/B, Y, G, K, S1
-
Voltage Rating: 18 - 30 VAC
-
Standards/Certifications: Meets commercial code title 24 compliant
-
Applications: For conventional and heat pump systems, residential or light commercial applications
-
Color-Finish: White
-
Mfg Color-Finish: Arctic white
-
Program: 7-Day/0
-
Stage: 1 Heat/1 Cool HP
-
Touchscreen: Yes
-
Wireless: Yes
-
Thermostat Type: Programmable; Digital; Low Voltage; RedLINK
-
Main Category: HVAC
-
Category: Controls
-
SubCat: Thermostats
-
SubSubCat: Residential
-
Setting temperature range - Heat: 40
0 to 90
0F (4.5
0 to 32
0C)
-
Setting temperature range - Cool: 50
0 to 99
0F (10
0 to 37
0C)
-
Display: 10 square inch
-
Application: 1H/1C Heat Pump 1H/1C Conv
-
Brand Name: Honeywell
-
Voltage: 24
-
Up to: 3 Heat/2 Cool Heat Pump or up to 2 Heat/2 Cool Conventional
-
Power: Dual powered: battery or hard wired
-
Setup: Plain language setup, no manual needed
-
Compatibility: Works with Redlink accessories
-
Battery Type: (4) AA Batteries
-
Depth (In.): 1-1/8
-
Display Size (Sq. In.): 10
-
Fan Switch Positions: Auto-On-Circulate-Follow Schedule
-
Hertz: 50/60 Hz
-
Length (In.): 4-5/8
-
Maximum Operating Temperature: 120 F (49 C)
-
Minimum Operating Temperature: 32 F (0 C)
-
Operating Humidity Range: 5 to 90% RH Non-Condensing
-
System Switch Positions: Heat-Off-Cool-Auto
-
Voltage (V): 18 to 30 VAC, 24 V, 750 mV
-
Width (In.): 4-15/16
-
Manufacturer: Resideo Technologies Inc.
-
Thermostat Application: Residential
-
Mounting Style: Horizontal
-
Colour: White
-
Program Type: 7 Day, Non-Programmable
-
Stages of Heat/Cool: 1 Heat/1 Cool Conv, 1 Heat/1 Cool HP
-
WiFi: No
-
WiFi Specifications: Internet Gateway THM6000R7001/U Provides WiFi Capabilities
-
RedLINK: Yes
-
Includes: VisionPRO® 8000 thermostat; Wall anchors; Screws
-
Utility Rewards: No
-
Modes of Operation: Heat; Off; Cool; Auto
-
Fan Function: On; Auto; Circulating
-
Alerts and Reminders: Customizable Service Reminders
-
Display Language: English
-
Displayed Information: Indoor Temperature; Indoor Humidity; Outdoor Temperature; Outdoor Humidity; Time; Status Display
-
Energy Star Certified: Yes
-
Features: ENERGY STAR Certified; Backlit Display ; Filter Change Reminder; Touchscreen Display
-
Product Height: 4.63 in; 118 mm
-
Product Width: 4.94 in; 126 mm
-
Product Depth: 1.13 in; 29 mm
