Product Description

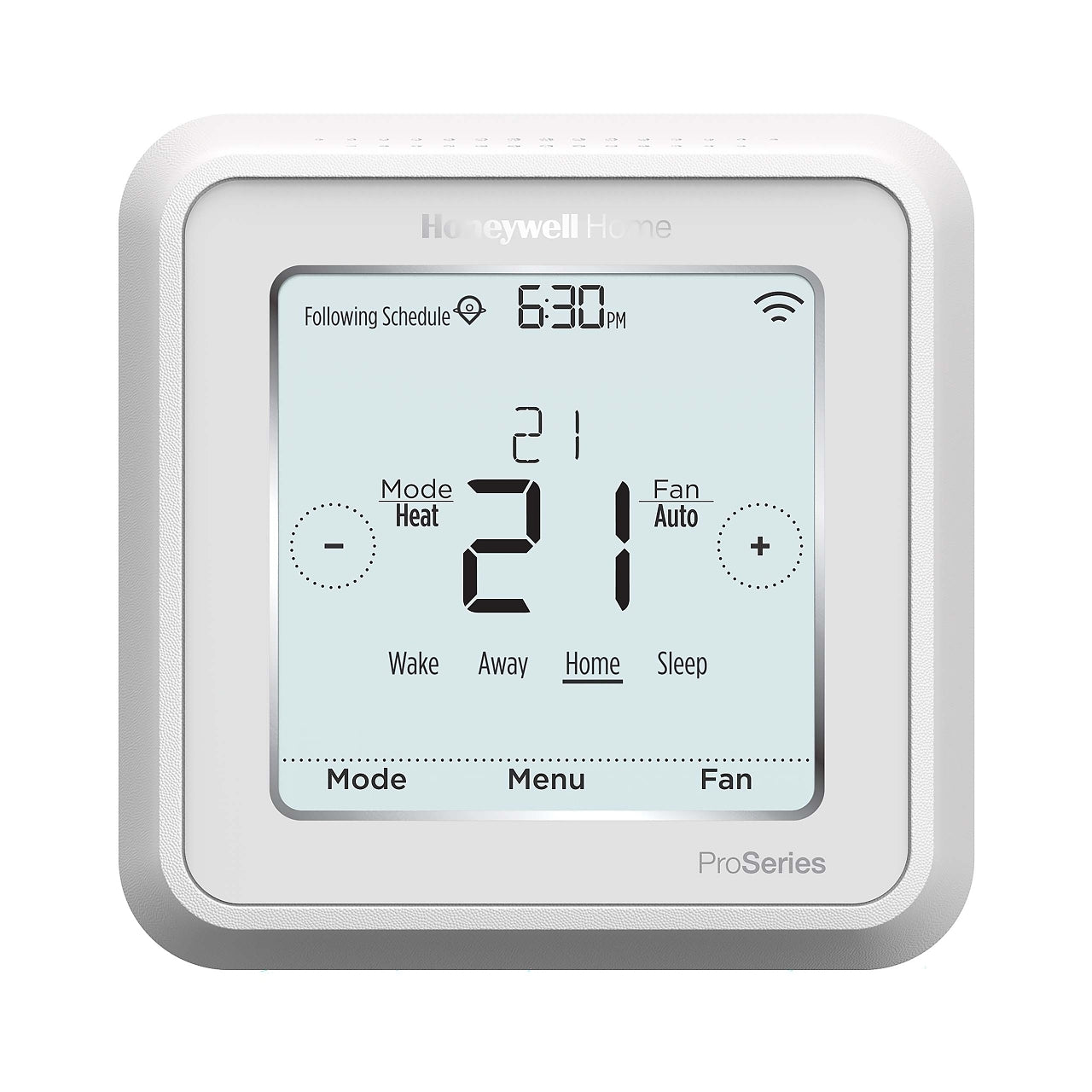

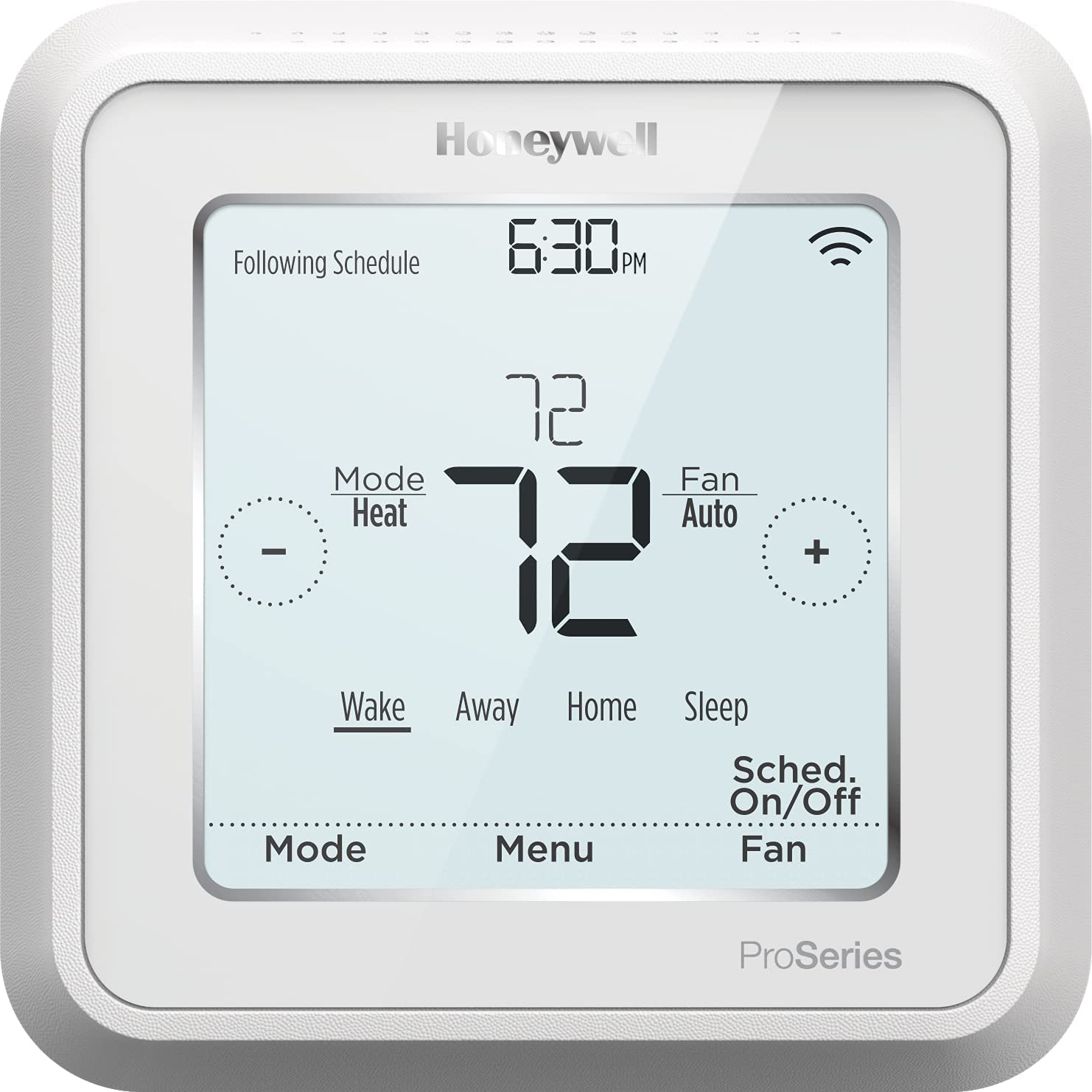

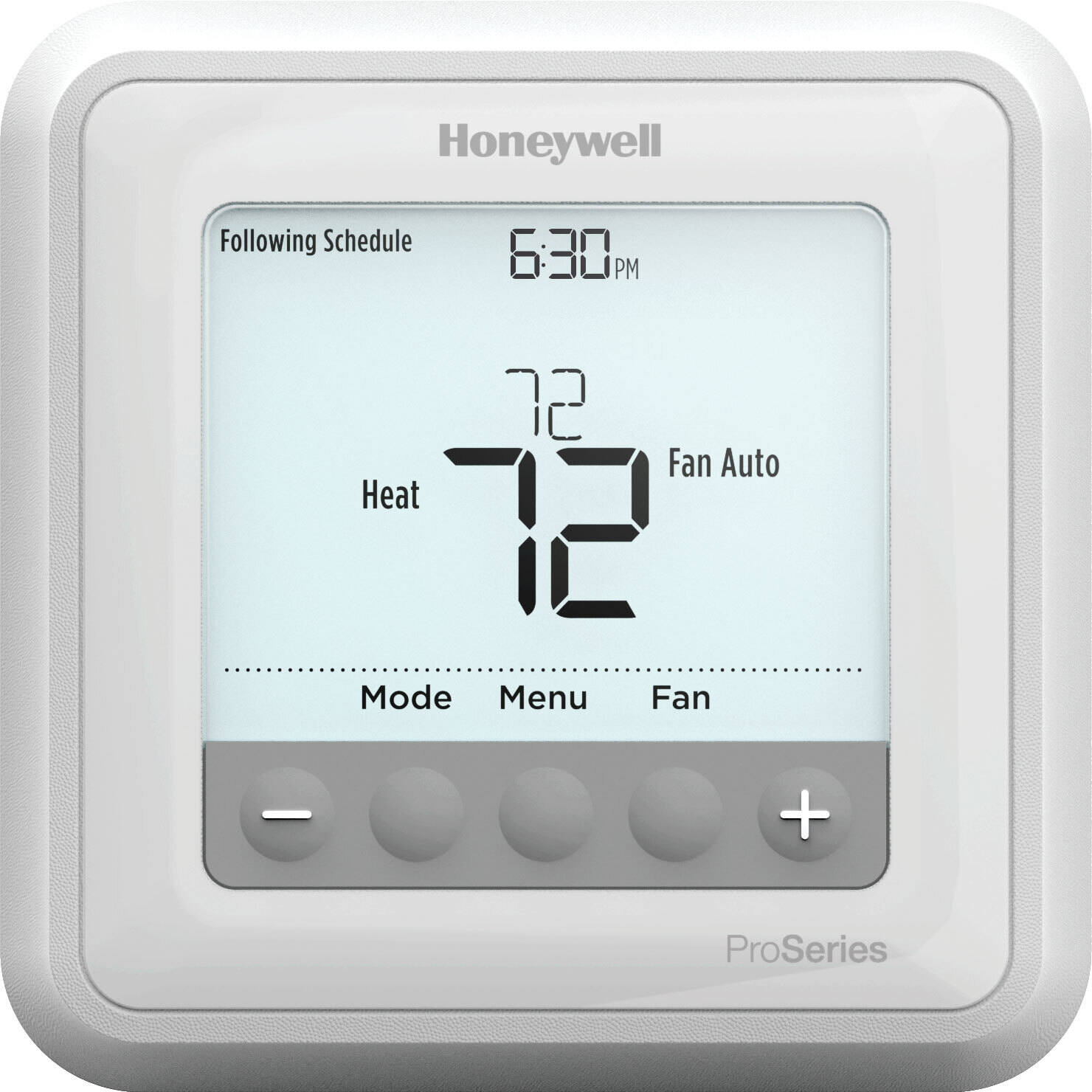

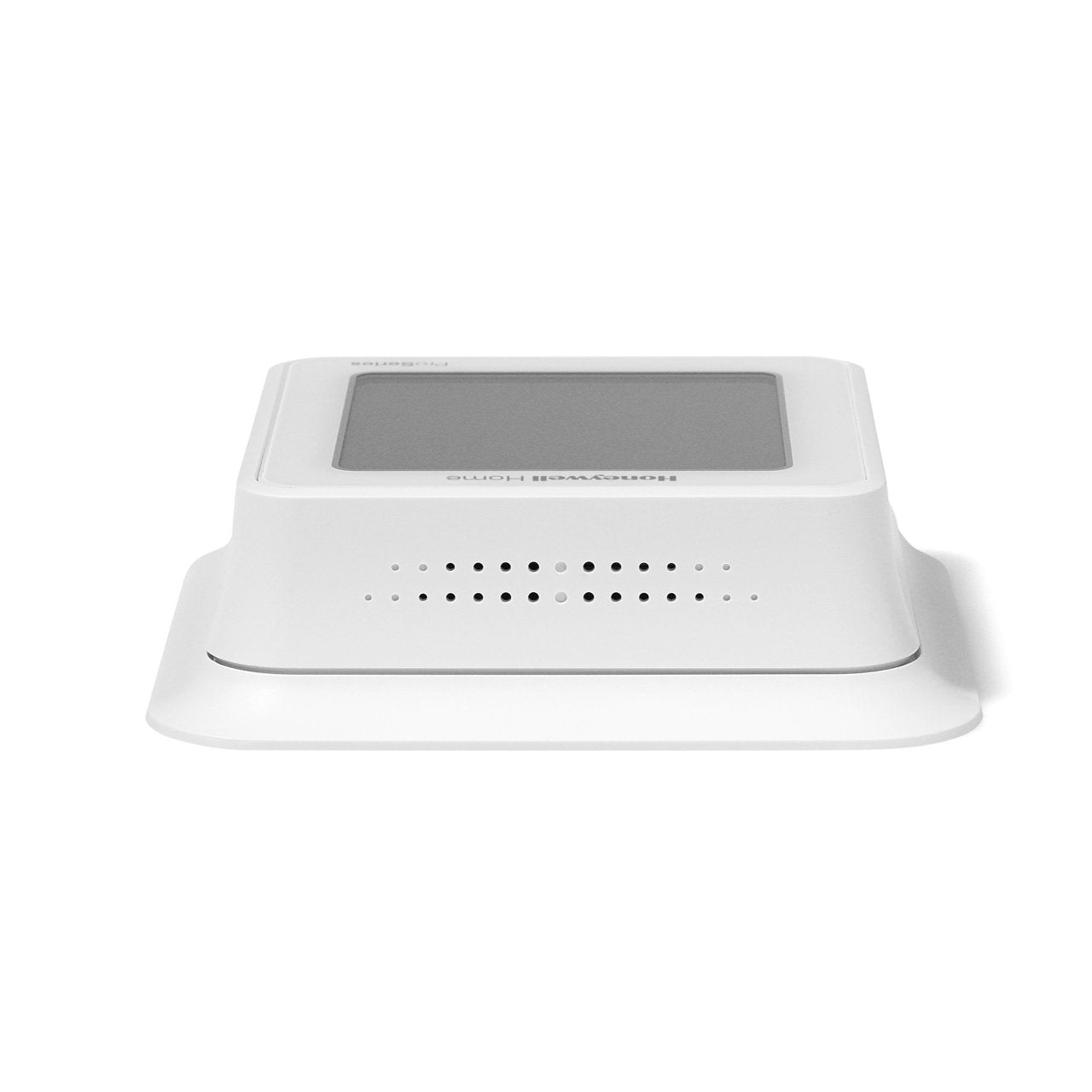

The Honeywell TH6320WF2003/U Lyric T6 Thermostat is compatible with 3 Heat / 2 Cool Heat Pump Or 2 Heat / 2 Cool Conventional systems. This smart thermostat can be programmed based on a schedule, or adapt to life as plans change. It measures 4.09" x 4.09" x 1.06".
- Smart Programmable Thermostat
- Wi-Fi Connectivity
- Amazon Alexa Compatible
Product Highlights
The Honeywell TH6320WF2003/U Lyric T6 Thermostat offers easy to use functionality and smart features. It can be controlled from anywhere using a smartphone or tablet.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: TH6320WF2003/U
-
Country of Origin: United States
Technical Specifications
-
Color: White
-
Style: Surface-Mounted
-
Voltage: 24 Volts
-
Material: Plastic
-
Backlight: Yes
-
Power Source: Battery
-
Control Method: App
-
Controller Type: Amazon Alexa
-
Batteries required: No
-
Included Components: T6 Pro Smart Programmable Thermostat
-
Connectivity Protocol: Wi-Fi
-
Specific Uses For Product: Heat Pump
-
Brand: HONEYWELL
-
Amperage Rating: 0.02 - 1 A Heat, 0.02 - 0.05 A Fan
-
Accuracy: Plus/Minus 1 deg F
-
Display: 6.89 sq-in LED Back Light
-
Fan Switching: Heat-Off-Cool-Auto-Em Heat
-
System Switching: Auto-On-Circ-Follow Schedule
-

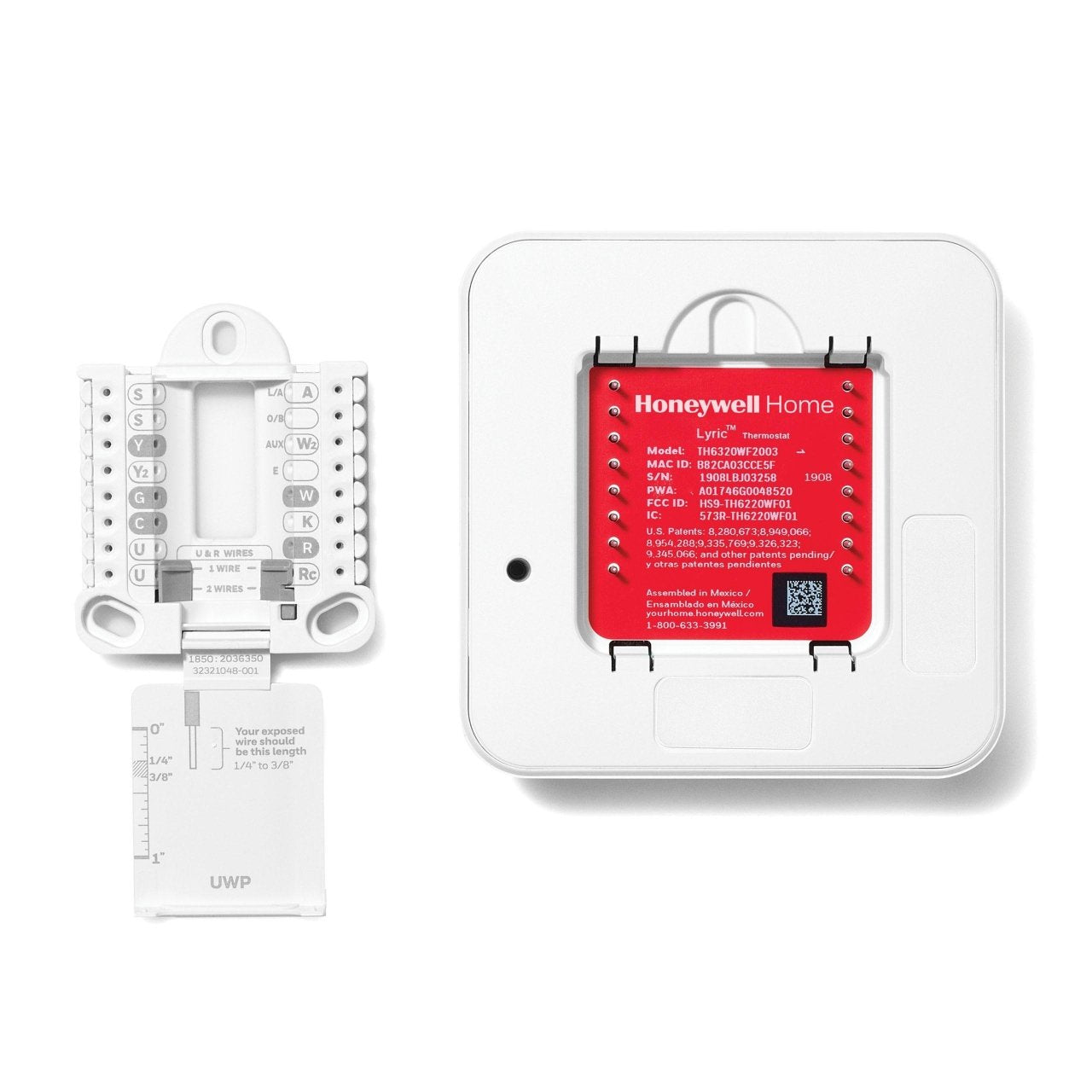

Terminal Designations: RC, R, C, W, W2 - AUX, Y, Y2, O/B, G, K, E, U, U, L/A, S, S
-
Voltage Rating: 20 to 30 VAC
-
Dimension: 4-1/16 in L x 4-1/16 in W x 1-3/32 in D
-
Display Type: 6.89 sq-in LED Touchscreen
-
Frequency Rating: 50/60 Hz
-
Humidity Rating: 5 - 90% Relative Humidity, Non-Condensing
-
Item Name: Programmable Thermostat
-
Model: Honeywell TH6320WF
-
Mounting: UWP
-
Programmability: 7, 5-1-1, 5 - 2 days, 1 day Geolocation or Non-programmable
-
Series: TH6320WF
-
Setting Temperature: 40 - 90 deg F Heat, 50 - 99 deg F Cool
-
Stages: 2 Heat/2 Cool Conventional, 3 Heat/2 Cool Heat Pump
-
Switch Position: HEAT-OFF-COOL-AUTO-EMERGENCY HEAT (System), AUTO-ON-CIRC-FOLLOW SCHEDULE (Fan)
-
Switch Type: SPDT Relay
-
Temperature Rating: 37 - 102 deg F Operating, -20 to 120 deg F Storage
-
Applications: For 24 VAC systems, hot water coil, gas, oil, electric warm air and hydronic or steam/gravity systems
-
Thermostat Type: FocusPRO 6000 Wi-Fi
-
Product Dimensions: 4.09"D x 4.09"W x 1.06"H
-
Special Feature: Auto-Scheduling, Programmable
-
Temperature Control Type: Cooling, Heating
-
Connectivity Technology: Ethernet
-
Mounting Type: Wall Mount
-
Shape: Rectangular
-
Product Style: Modern
-
Material Type: Plastic
-
Finish Types: Glossy
-
Specification Met: Energy Star
-
Model Number: TH6320WF2003/U
-
Item Type Name: T6
-
Unit Count: 1.0 Count
-
Application: 24 Vac systems; Gas, Oil, Electric Warm Air, Hot water Coil; Gas, Oil, Electric Hydronic, Steam / Gravity Systems, Dual Fuel
-
Smart Home Integration: Yes
-
Touchscreen: Yes
-
Display Time Format: 24 Hour, 12 Hour (AM/PM)
-
Displayed Information: Time, Mode, Indoor Temperature, Up Button, Down Button, Fan, Connected symbol, Backlit, WiFi Status
-
Modes of Operation: Heat, Cool, Emergency Heat, Off, Auto
-
Programming Features: Geofencing
-
Program Type: Manual / Not Programmed, 5-2 Programmable, 5-1-1 Programmable, 7-Day Programmable
-
Energy Star Certified: Yes
-
Alerts and Reminders: Heat Pump Failure, Filter Change 1, Filter Change 2, Humidifier Pad (through app), Humidifier Clean Tank, UV Bulb 1, UV Bulb 2, Vent Core, Vent Filter, High Indoor Temperature, Low Indoor Temperature
-
For Use With: Outdoor Sensor C7089U1006, Remote Indoor Sensor C7189U1005
-
Communication Type: WiFi
-
WiFi: Yes
-
WiFi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range
-
Z-Wave Specifications: Not Applicable
-
RedLINK: No
-
Sensor Type: Thermistor
-
Ambient Operating Temperature (Max): 102
. Honeywell TH6320WF2003/U Lyric T6 Thermostat, 3 Heat / 2 Cool Heat Pump Or 2 Heat / 2 Cool Conventional, 4.09" x 4.09" x 1.06"
