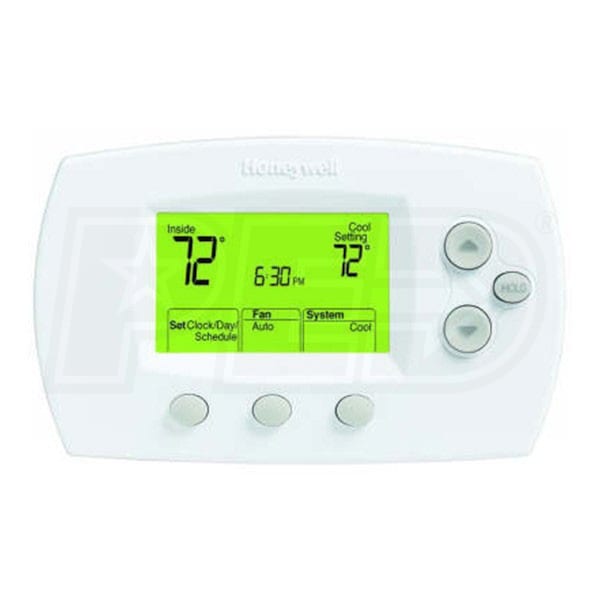

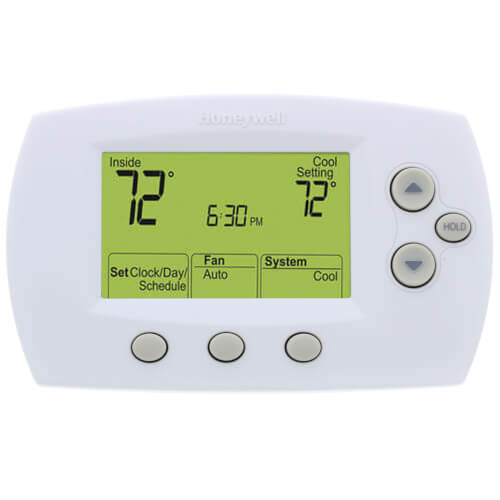

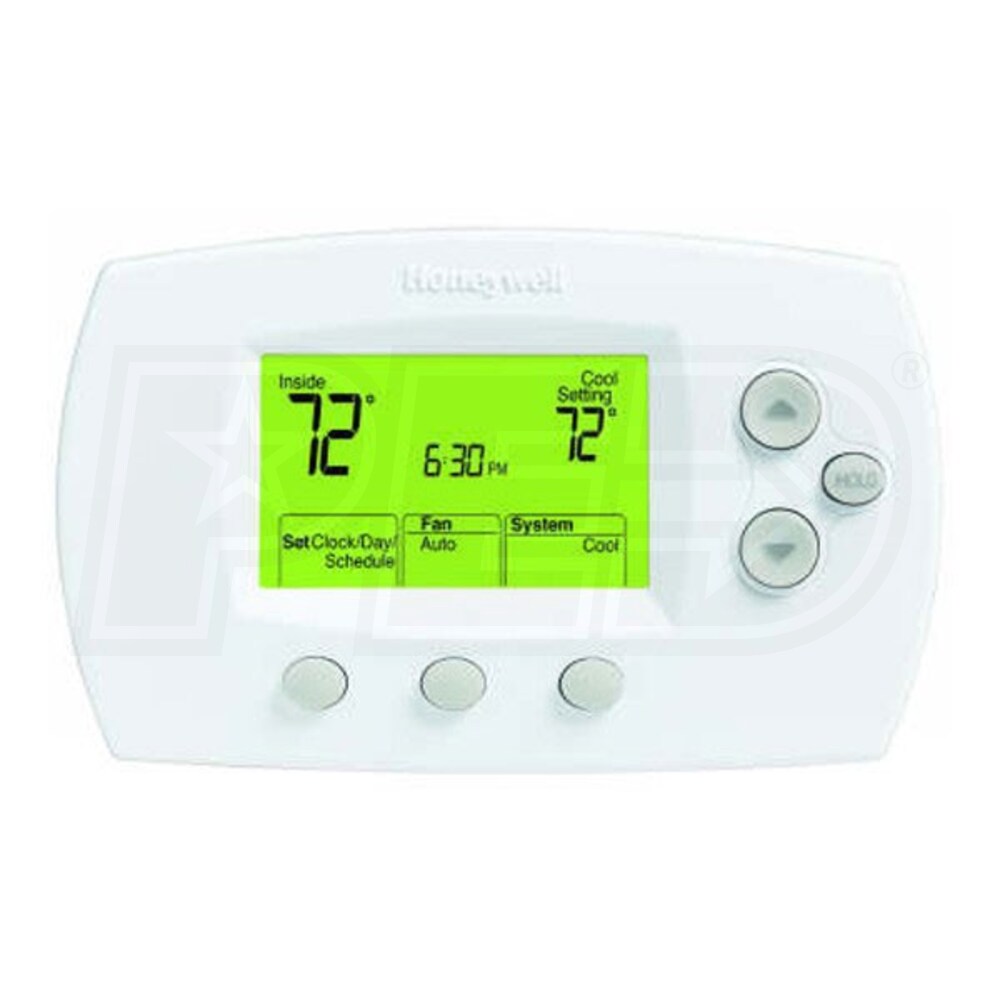

HONEYWELL TH6320U1000/U Honeywell FocusPRO 6000 Thermostat

Product Description

The Honeywell FocusPRO 6000 TH6320U1000/U is a thermostat for controlling heating and cooling systems. It works with 24 VAC conventional, heat pump systems, and 750 mV heating systems. The thermostat has a digital display that shows room and set temperatures. It offers 5-1-1 or 5-2 day programming for efficient schedule management. The device can be powered by batteries or a hardwired connection.

• 5-1-1 or 5-2 day programmable options.
• Backlit digital display for easy readability.
• Supports battery and hardwired power sources.

Product Highlights

This thermostat is designed for flexibility and ease of use. The programming options allow users to tailor the settings to their weekly schedules. The backlit display ensures visibility in low light conditions.

Product Information

Standard Information

• Series: FocusPRO 6000 Series
• Application: Multi-Stage (Heat/Cool), Heat Pump

Technical Specifications

• Stages: Up to 2 Heat/2 Cool Conventional Systems, Up to 3 Heat/2 Cool Heat Pump
• Programmability: Programmable 5-1-1 Day
• User Interface: Push Button
• Mounting Type: Horizontal
• Power Source: Battery, Hardwired
• Temperature Range (F): 40°F - 99°F
• Max Temp Differential: 1°F
• Input Voltage: 20 to 30 VAC, 750 mV
• Output Current: 0.02 to 1 A
• Dimensions: 3-9/16 inches H x 5-13/16 inches W x 1-1/2 inches D
