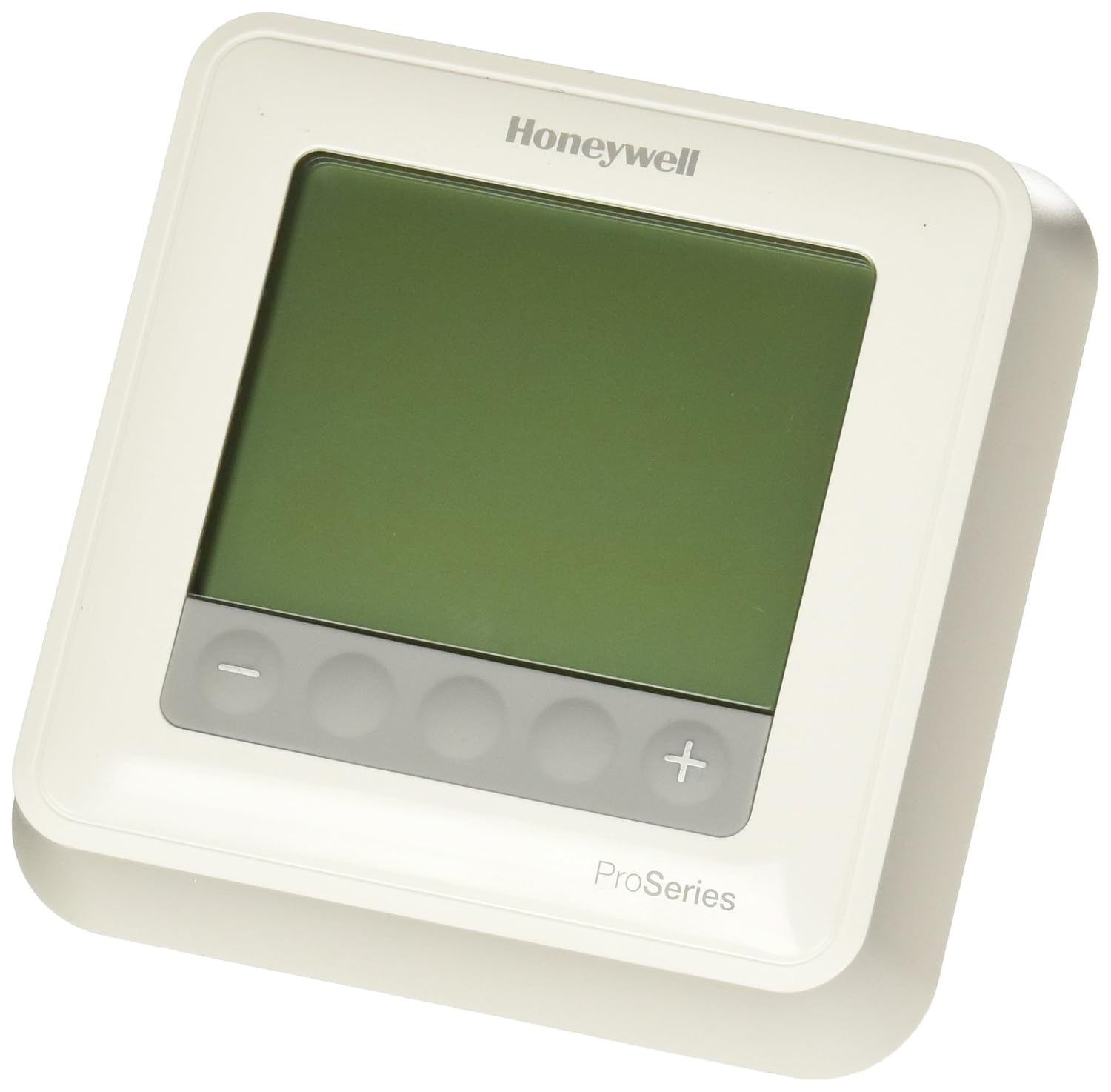

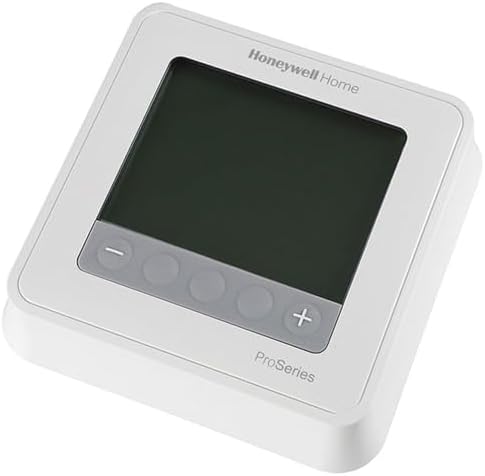

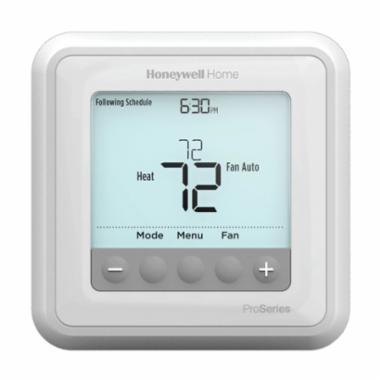

Honeywell TH6220U2000/U T6 Pro Programmable Thermostat Battery/Hardwired (4.06 x 1.09 x 4.06 inches)

Product Description

Honeywell TH6220U2000/U is a T6 Pro programmable thermostat for residential HVAC control that supports 2 heat/1 cool heat pump or 2 heat/2 cool conventional configurations. It accepts hardwired 20 to 30 VAC power with 2 AA battery backup, provides a backlit LCD display and flexible scheduling (7, 5-2, 5-1-1 or nonprogrammable), and supports up to two heating and two cooling stages. Dimensions are approximately 4.06 x 1.09 x 4.06 inches; weight 2.4 ounces.

• Supports 2 heat/1 cool heat pump or 2 heat/2 cool conventional systems; up to 2 heating and 2 cooling stages
• Power: hardwired 20 to 30 VAC (24V nominal) with 2 AA battery backup; low battery indicator; UWP wall mounting
• Programmable schedules (7, 5-2, 5-1-1 or nonprogrammable), backlit LCD, programmable fan, automatic changeover and remote sensing capability

Product Highlights

T6 Pro programmable thermostat (TH6220U2000/U) with backlit LCD, flexible weekly scheduling, 2H/2C support, hardwired or battery power, and UWP mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH6220U2000/U
• Country of Origin: Mexico

Technical Specifications

• Brand: Honeywell
• Manufacturer Part Number: TH6220U2000/U
• Model: T6 Pro
• Compatibility / System Type: 2 heat / 1 cool heat pump or 2 heat / 2 cool conventional
• Input Voltage: 20 to 30 VAC (24V nominal)
• Power Source: Hardwired (20 to 30 VAC) or battery (2 AA)
• Batteries Required: 2 AA
• Battery Type: Alkaline (AA)
• Display Type: Backlit LCD
• Display Backlight Color: Blue
• Programmability: 7, 5-2, 5-1-1 or nonprogrammable
• Stages Heat: 2
• Stages Cool: 2
• Mounting Type: UWP System wall mounting
• Dimensions: 4.06 x 1.09 x 4.06 inches
• Weight: 2.4 Ounces (0.15 pounds)
• Temperature Settings (Heat): 40 to 90 °F
• Temperature Settings (Cool): 50 to 99 °F
• Operating Temperature Range: 37 to 102 °F
• Humidity Rating: 5 to 90% RH non-condensing
• Accuracy: +/-1 °F
• Frequency Rating: 50/60 Hz
• Features: Automatic changeover; programmable fan; temporary temperature hold and override; remote sensing capability; low battery indicator; filter and battery reminders
• Country of Origin: Mexico
