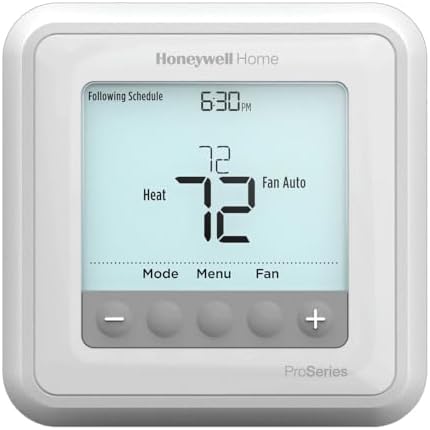

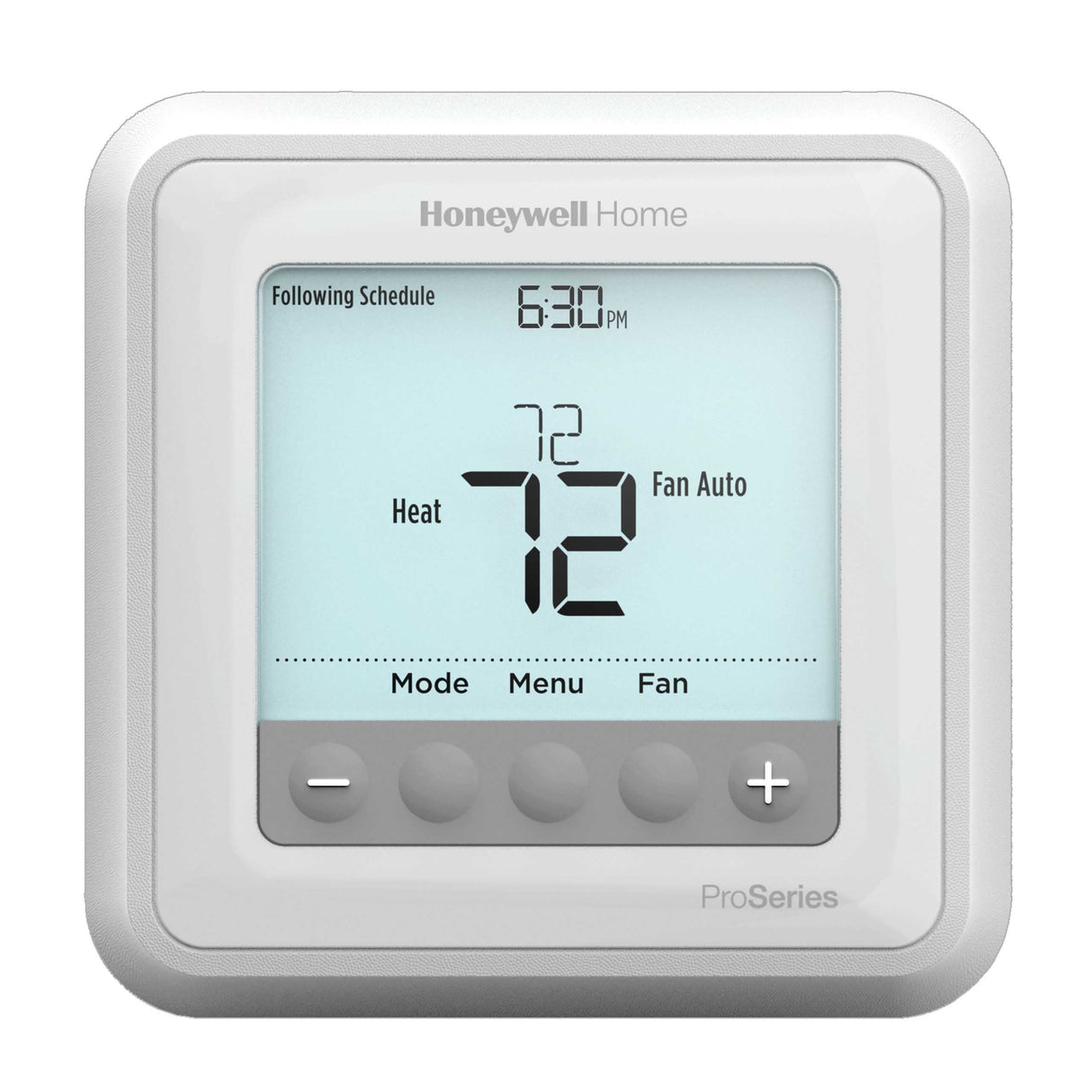

Honeywell TH6210U2001/U T6 Pro programmable thermostat 30 Volts (6.14 x 5.12 x 2.44 inches) TH6210U2001/U

Product Description

The Honeywell TH6210U2001/U T6 Pro programmable thermostat provides residential HVAC control for heat pump and conventional systems. The TH6210U2001/U supports up to 2 heat/1 cool for heat pumps or 1 heat/1 cool for conventional systems, operates on low-voltage AC power (nominal 30 VAC), and includes programmable scheduling. The unit is compact and lightweight and is suitable for standard UWP mounting.

• Supports system configurations: up to 2 heat/1 cool (heat pump) or 1 heat/1 cool (conventional).
• Power: hardwired low-voltage AC (nominal 30 VAC) with battery backup; compatible with residential HVAC systems.
• Compact wall-mounted design; item weight approximately 0.92 pounds. Product dimensions: 4.06 x 4.06 x 1.09 inches; package dimensions: 6.14 x 5.12 x 2.44 inches.

Product Highlights

Programmable residential thermostat (T6 Pro) for 2H/1C heat pump or 1H/1C conventional systems with 24/30 VAC power and compact UWP-compatible mounting.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH6210U2001/U
• Country of Origin: United States

Technical Specifications

• Brand: Honeywell
• MPN: TH6210U2001/U
• Model: T6 Pro
• Series: T6 Pro Series
• Product Type: Programmable thermostat; Digital; Low voltage
• Supported Systems: Up to 2 heat / 1 cool (heat pump) or 1 heat / 1 cool (conventional)
• Stages: 2 Heat / 1 Cool (heat pump); 1 Heat / 1 Cool (conventional)
• Input Voltage: 30 VAC nominal (low-voltage residential HVAC)
• Voltage Rating: 20-30 VAC
• Amperage Rating: 0.02 to 1 A (see notes - upper bound atypical)
• Power Source: 24/30 VAC (hardwired) with battery backup
• Battery Type: AA
• Number of Batteries: 2
• Programmability: Programmable scheduling
• Program Type: 7-day, 5-2, 5-1-1 or non-programmable
• Changeover: Auto, Manual

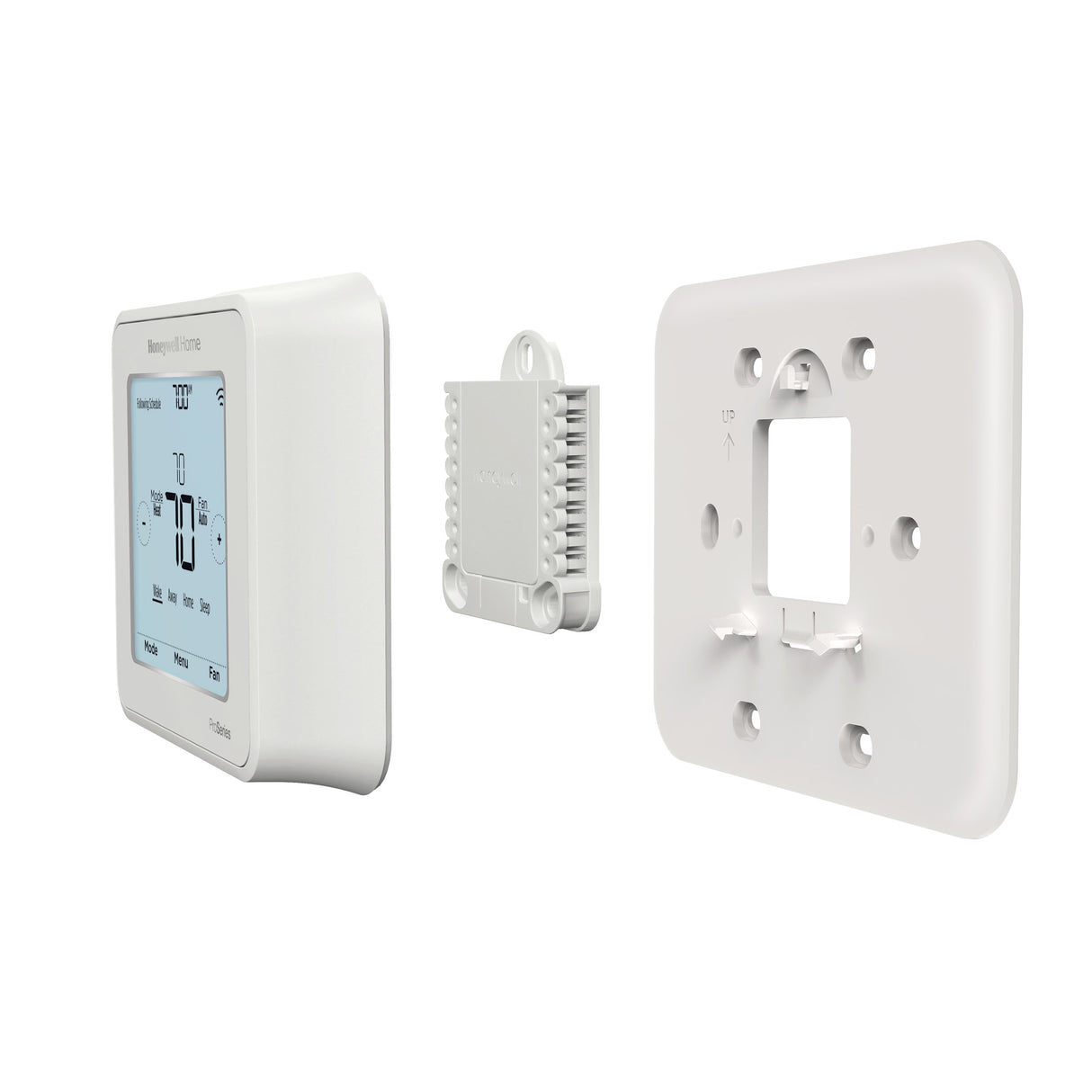

• Mounting Type: UWP mounting
• Display Type: Backlit LCD
• Display Size: 5.44 sq. in.
• Product Dimensions: 4.06 x 4.06 x 1.09 inches (104 x 104 x 28 mm)
• Package Dimensions: 6.14 x 5.12 x 2.44 inches
• Item Weight: 0.92 Pounds
• Temperature Range (Heat): 40 to 90 °F
• Temperature Range (Cool): 50 to 99 °F
• Differential Temperature: +/-1 °F
• Humidity Rating: 5 to 90 %
• Modes of Operation: Heat; Cool; Emergency Heat; Off; Auto
• Fan Function: Cycled; Continuous
• Alerts and Reminders: Filter change and battery replacement reminders
• Certifications: ETL; FCC; UL
• Manufacturer: Honeywell International Inc
• UPC: 085267554404
