Honeywell TH6110D1021 FocusPRO 6000 24V (Large Display) TH6110D1021

Product Description

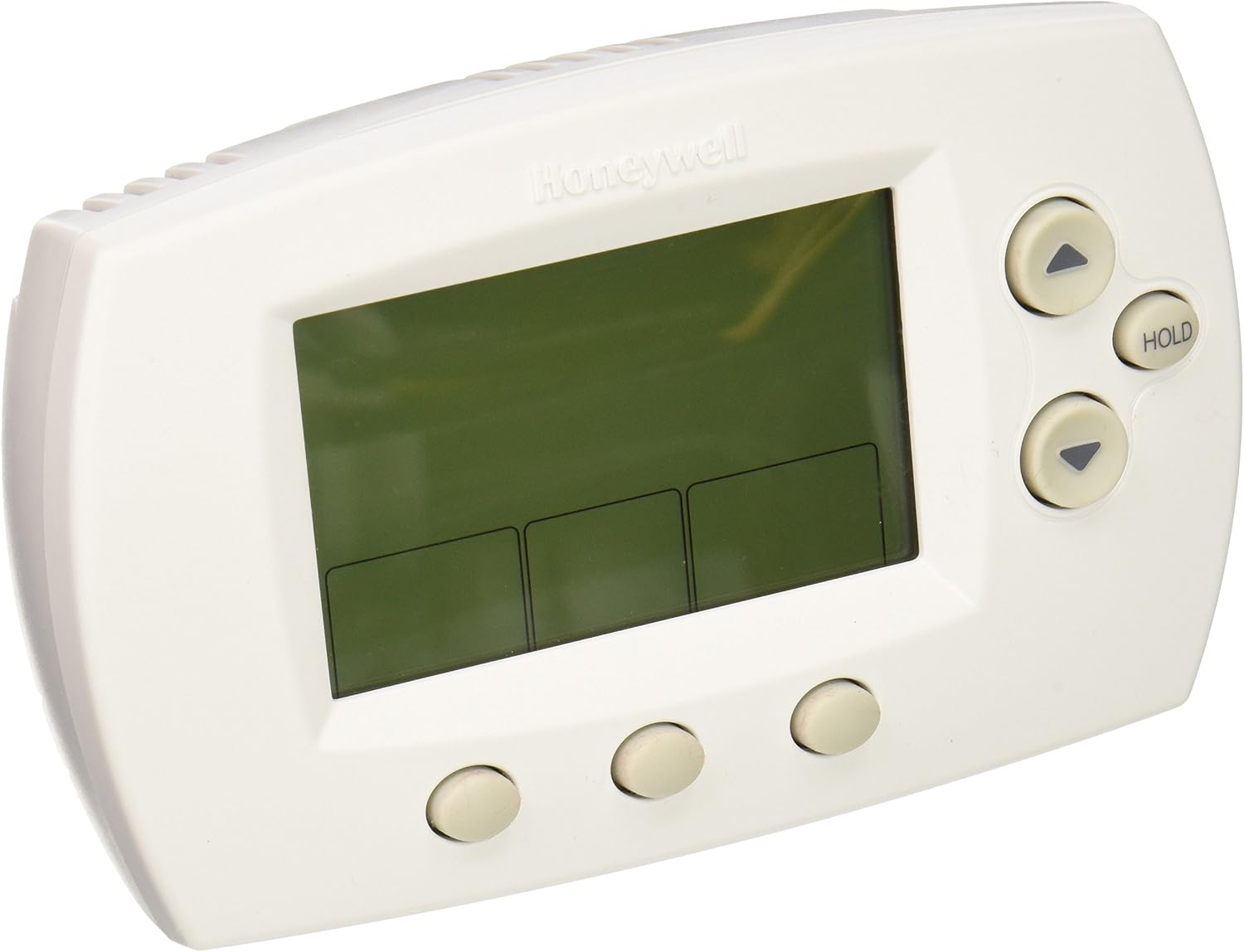

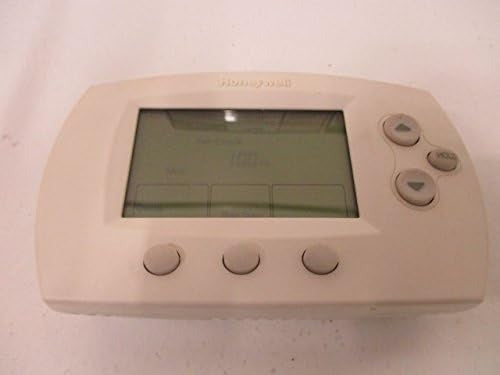

Honeywell TH6110D1021 is a FocusPRO 6000 programmable digital thermostat for single-stage heating and cooling. It supports 1 heat/1 cool conventional and heat pump systems and operates on hardwired 24 Vac with battery backup or battery power. The device provides 5-1-1 day programming, a large backlit display showing room and set temperatures, button controls, selectable auto/manual changeover, a thermistor sensor with 1�F sensitivity, horizontal mounting, and temperature range stops.

• 5-1-1 day programmable schedule for weekday/weekend programming

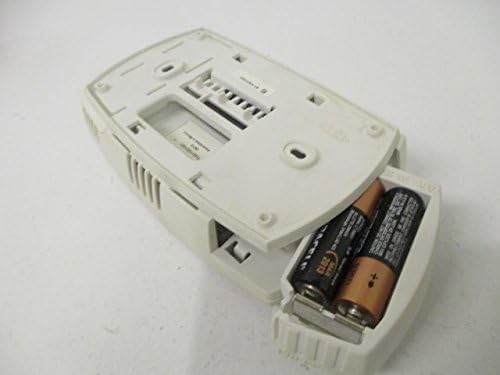

• Dual power: hardwired 24 Vac with battery backup or battery operation (2 AA when battery powered)

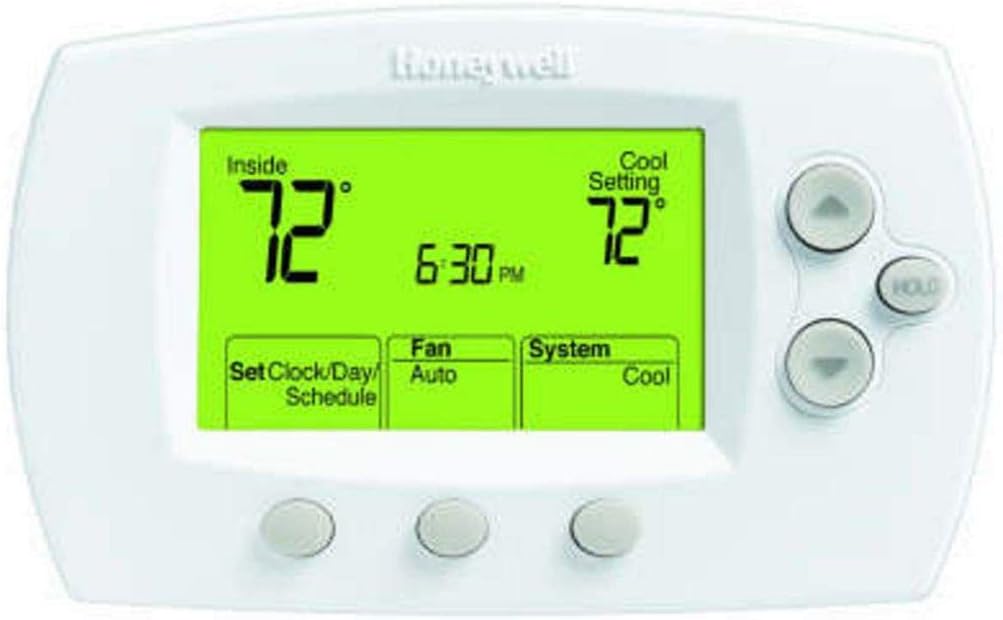

• Large backlit digital display with button control, room and set temperature readout, and 1�F sensitivity

Product Highlights

Large backlit display; 5-1-1 day programmability; dual power (24 Vac or battery); selectable auto/manual changeover

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: TH6110D1021

Technical Specifications

• Brand: Honeywell
• MPN: TH6110D1021
• Model Name: FocusPRO 6000
• Product Type: Programmable thermostat
• System Stages: 1 Heat / 1 Cool
• System Type: Conventional and heat pump systems; compatible with 750 mV heating systems
• Input Voltage: 24 Vac
• Voltage Range: 20 to 30 Vac
• Power Source: Hardwired 24 Vac or battery (battery backup)
• Batteries Required: 2 AA (when battery powered)
• Programmable: 5-1-1 day
• Display Type: Large backlit digital display
• Display Area: 5.09 sq in
• Screen Size: 2.3 inches
• Control Type: Button / push-button control
• Changeover: Auto or manual selectable changeover
• Sensor Type: Thermistor sensor
• Temperature Sensitivity: 1�F
• Mounting Type: Horizontal wall mount
• Dimensions: 7 x 5 x 3 inches
• Weight: 12.2 ounces
• Backlight: Yes
• Internet Connectivity: No
• Special Features: Real-time clock, built-in instructions, temperature range stops
• Certifications: Energy Star (listed in some sources)
