RESIDEO Resideo TH5320R1002/U Thermostat Alone for Replacement Only Battery Powered (Each) HONE-TH5320R1002/U
RESIDEO Resideo TH5320R1002/U Thermostat Alone for Replacement Only Battery Powered (Each) HONE-TH5320R1002/U

Resideo TH5320R1002/U Thermostat Alone for Replacement Only Battery Powered (Each) HONE-TH5320R1002/U

Brand: RESIDEO
SKU: TH5320R1002/U
Availability: In Stock

Ships same day if ordered by 12 pm
$181.50
$181.50
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

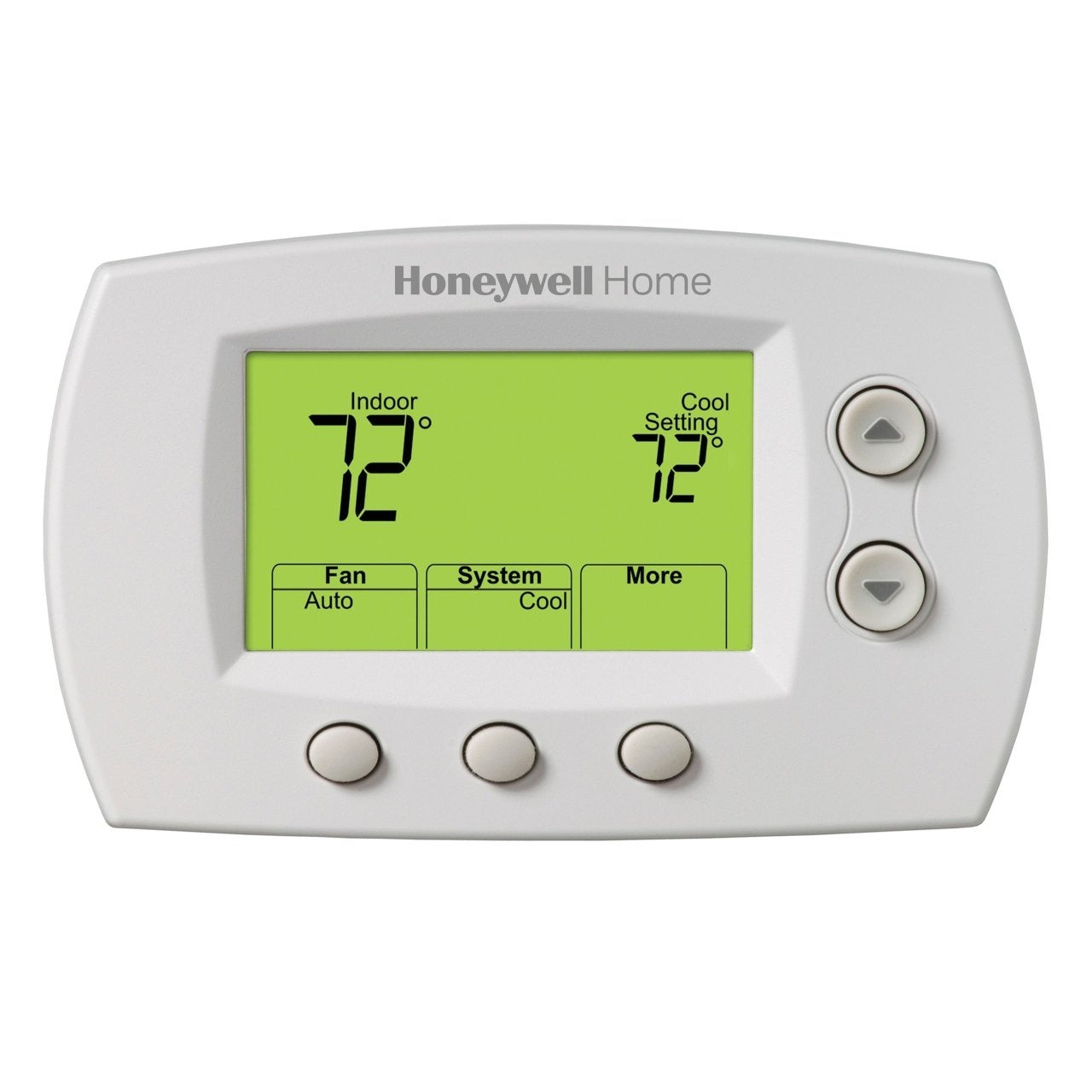

Resideo TH5320R1002/U is a wireless, non-programmable FocusPRO digital thermostat that uses RedLINK technology and is battery powered. It provides a backlit LCD display and a simple push-button interface for manual temperature control and supports universal HVAC applications including up to 3 heat/2 cool for heat pump systems or up to 2 heat/2 cool for conventional systems. The thermostat communicates with an equipment interface module and can use a RedLINK Internet Gateway for remote access.

  • RedLINK wireless communication; WiFi available when used with RedLINK Internet Gateway (THM6000R7001/U) and Total Connect Comfort app.
  • Supports up to 3 heat/2 cool (heat pump) or up to 2 heat/2 cool (conventional); modes: Heat, Off, Cool, Auto, Emergency Heat; auto/manual changeover.
  • Battery powered (AA alkaline, ~1 year life), backlit LCD display, horizontal mount; includes thermostat, screws, and literature.

Product Highlights

RedLINK-enabled, non-programmable digital thermostat for 2H/2C or 3H/2C systems; battery powered with backlit LCD and compatibility with Resideo TrueZONE panels and RedLINK accessories.

Product Information

Standard Information

  • Brand: RESIDEO
  • Manufacturer Part Number: TH5320R1002/U
Technical Specifications
Brand
Resideo
Manufacturer Part Number
TH5320R1002/U
Model Number
TH5320R1002
Product Type
Wireless FocusPRO digital thermostat
Thermostat Type
Digital; Low Voltage; RedLINK
Programmability
Non-programmable
Communication Type
RedLINK
Connectivity
Wireless (RedLINK); WiFi via RedLINK Internet Gateway THM6000R7001/U
Application
Conventional systems; Heat pumps
Supported Stages
Up to 3 heat / 2 cool (heat pump); Up to 2 heat / 2 cool (conventional)
System Modes
Heat; Off; Cool; Auto; Emergency Heat
Heat/Cool Changeover
Auto; Manual
Power Source
Battery (AA alkaline)
Input Voltage
18 to 30 VAC (typical 24 VAC control)
Battery Type
AA alkaline
Battery Life
Approximately 1 year (depends on usage)
Display Type
Backlit LCD
Display Size
7.27 sq in
Sensing Element
Thermistor
Differential Temperature
1 deg F / 0.5 deg C
Set Point Temperature Range
Heating: 40 to 90 F; Cooling: 50 to 99 F
Operating Temperature Range
32 to 120 F (0 to 49 C)
Operating Relative Humidity
5% to 90% RH non-condensing
Power Frequency
50 Hz, 60 Hz
Electrical Connection Type
Screw terminals
Mounting Type
Horizontal mount
Mounting Location
Wall (indoor)
Number of Fan Speeds
1 (fan on/off control typical)
Dimensions
3.56 in H x 5.81 in W x 1.00 in D (91 x 147 x 25 mm)
Includes
Thermostat, Screws, Literature
For Use With
HZ432 or HZ322 TrueZONE panel; THM4000R1000 Wireless Adapter; THM5320R1000 Equipment Interface Module
Compatible Platforms
Total Connect Comfort; Amazon Alexa; Google Assistant (via gateway)
