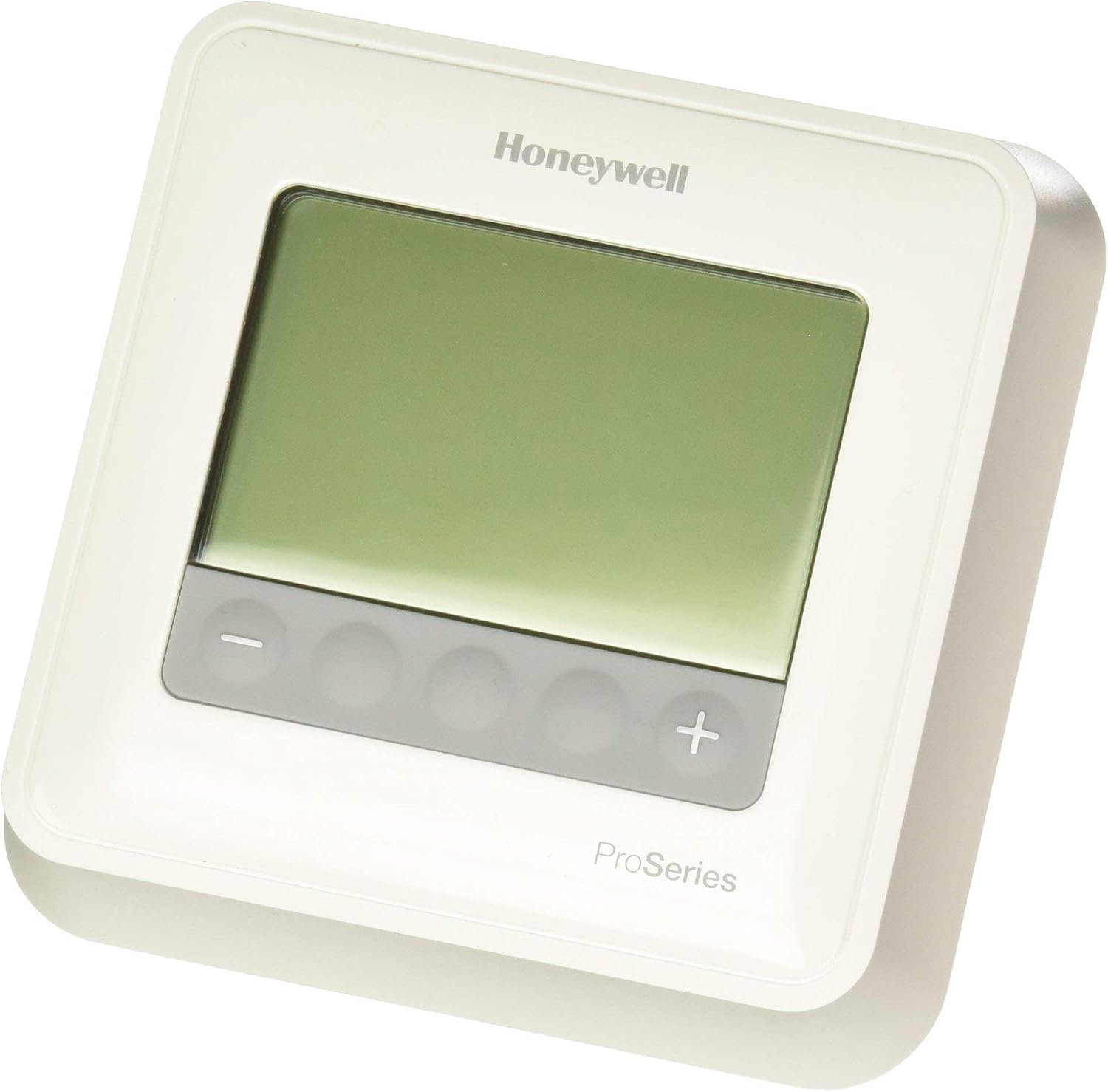

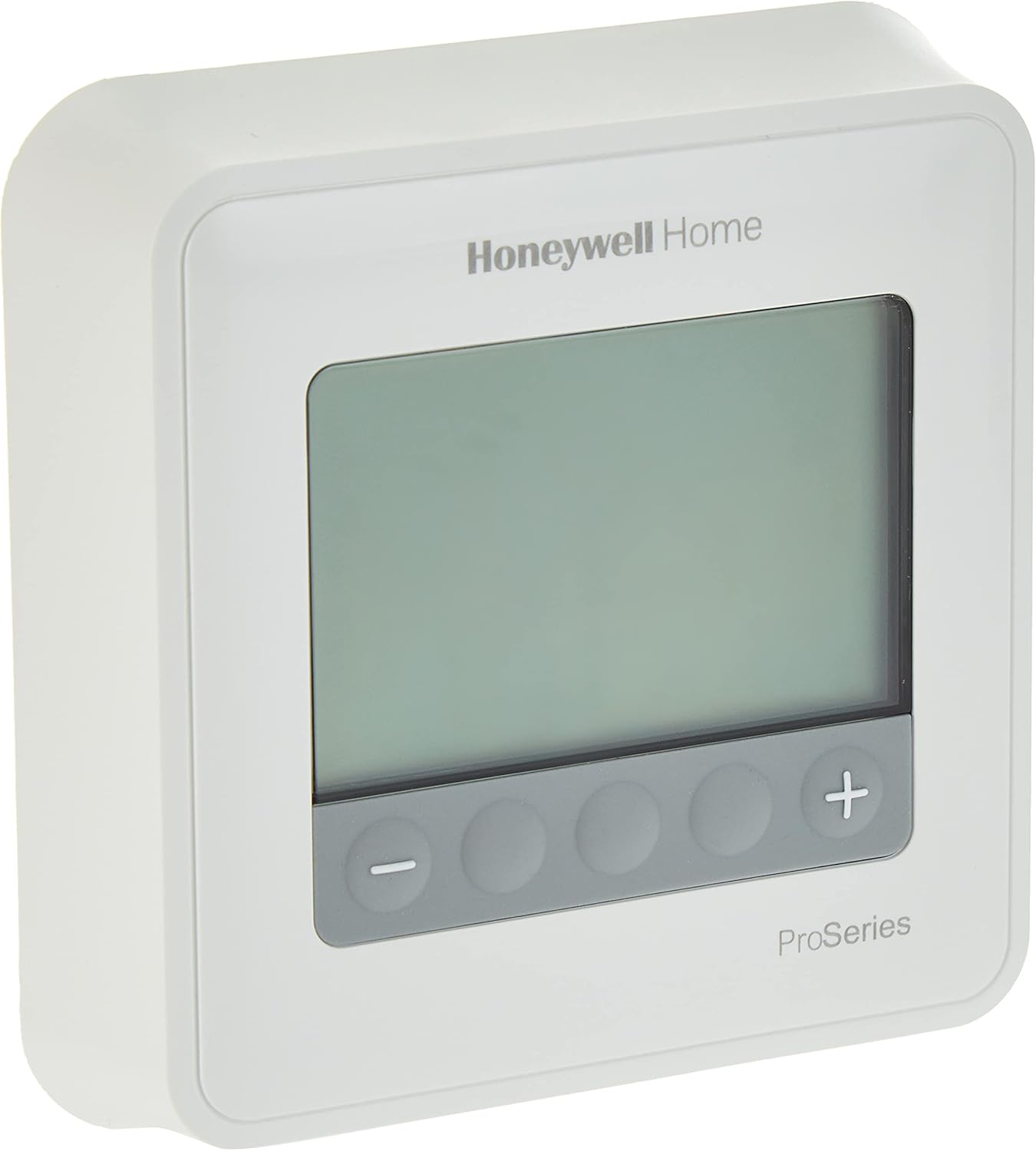

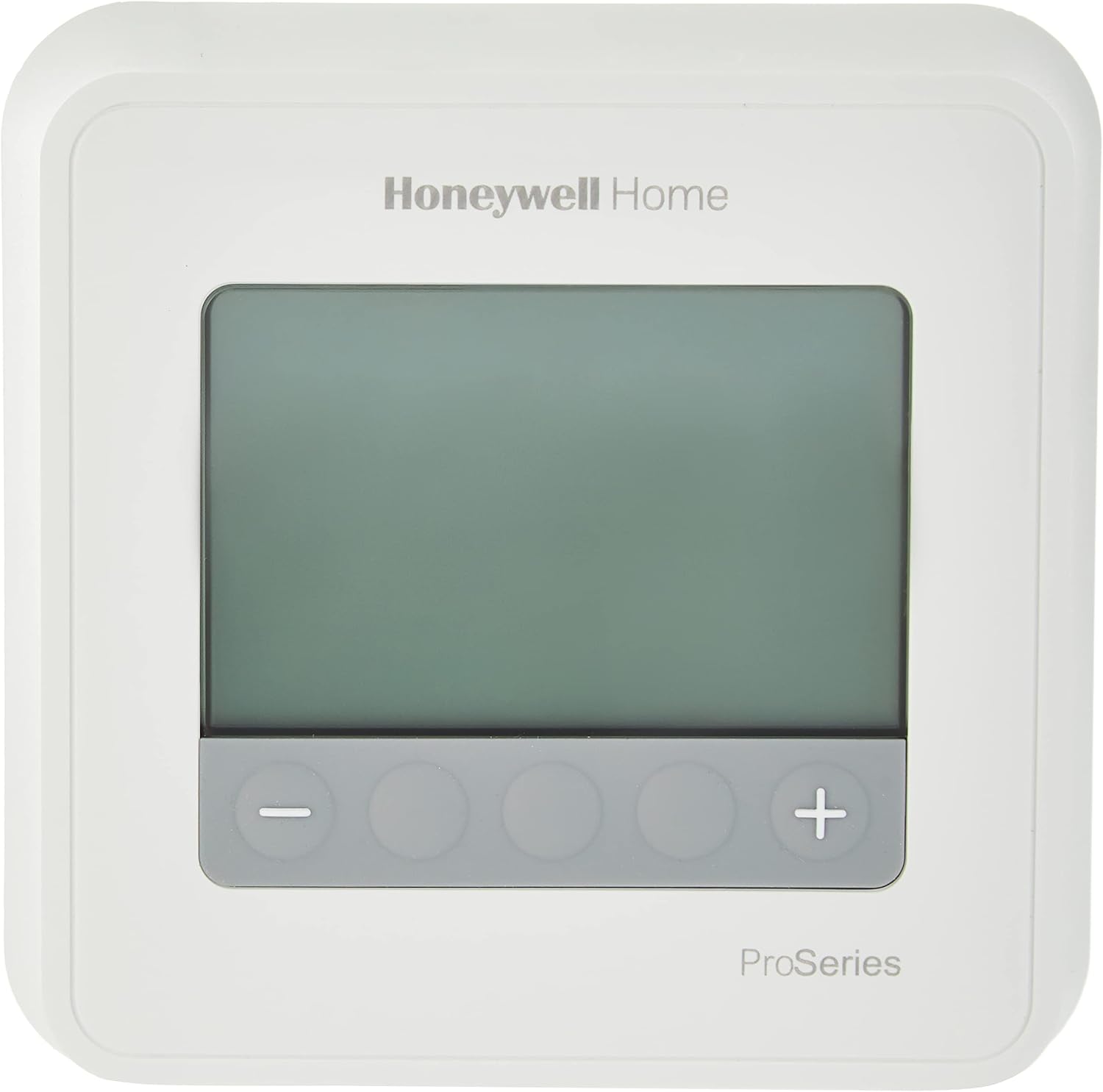

Product Description
The Honeywell TH4110U2005/U is a T4 Pro programmable thermostat for single-stage (1H/1C) residential heating and cooling systems. It operates on 24 Volts with hardwired or battery power (2 AA), provides Wi-Fi connectivity, a backlit LCD, and push-button controls for scheduling. Programmable options include 7-day, 5-2, and 5-1-1 schedules with adaptive intelligent recovery; the unit mounts with the UWP system and supports heat pump and conventional systems. The compact square design measures 4.06 x 4.06 x 1.13 inches and provides basic alerts for filter change and low battery.
- Supports 1 heat / 1 cool (1H/1C) single-stage systems; compatible with heat pump and conventional systems.
- 24 Volt low-voltage operation with hardwired (AC/DC) or battery power; requires 2 AA batteries; UWP mounting.
- Programmable schedules (7-day, 5-2, 5-1-1) with adaptive intelligent recovery, backlit LCD, push-button controls, and Wi-Fi connectivity.
Product Highlights
T4 Pro single-stage programmable thermostat; 24V operation; Wi-Fi connectivity; backlit LCD; push-button controls; UWP mounting.
Product Information
Standard Information
-
Brand: HONEYWELL
-
Manufacturer Part Number: TH4110U2005/U
-
Country of Origin: China
Technical Specifications
-
Brand: Honeywell
-
Manufacturer: Resideo Technologies, Inc.
-
Manufacturer Part Number (MPN): TH4110U2005/U
-
Model Name: T4 Pro
-
Type: Programmable thermostat
-
Stages: 1 Heat / 1 Cool (1H/1C)
-
Input Voltage: 24 Volts
-
Supply Voltage Range: 20 to 30 Vac
-
Power Source: Hardwired (AC/DC) or battery (2 AA)
-
Batteries Required: 2 AA
-
Display Type: LCD with backlight
-
Backlight: Yes
-
Display Size: 3.93 sq.in.
-
Control Type: Push-button / Button control
-
Connectivity: Wi-Fi
-
Mounting Type: UWP mounting system
-
Programmable Schedules: 7-day, 5-2, 5-1-1 or non-programmable
-
Adaptive Intelligent Recovery: Yes
-
Compatibility: Heat pump and conventional single-stage systems
-
Included Components: Thermostat, UWP wall plate, decorative cover plate, screws and anchors, 2 AA batteries, literature
-
Dimensions: 4.06 in L x 4.06 in W x 1.13 in H
-
Weight: 0.8 lb (12.8 ounces)
-
Operating Temperature Range: 32 F to 120 F (0 C to 50 C)
-
Operating Humidity Range: 5 to 90% RH, non-condensing
-
Accuracy:
